德国品质的体现，性能稳定超群。
专门针对线缆行业生产的一款标识设备，在电线电缆行业记米精确。
多种多样的油墨，满足你不同的特殊喷码需求。
优势：速度快，最快可以达400米/分钟。
优秀的供墨系统，不需要特殊的维护保养，保证你想用就用，想停就停。

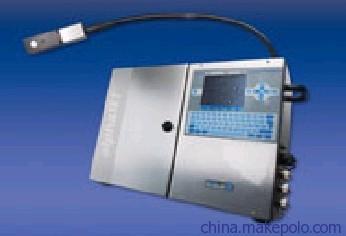

Metronic E系列系列喷码机技术参数:
尺 寸：控制组件562mmX403mmX251mm(长x高x宽)
喷 头：40mmX169mmX40mm(长x高x宽)
重 量：大约26公斤
外 壳：不锈钢IP55
喷印系统：连续油墨喷射(CIJ)系统组成的控制及喷印组件
油墨系统：0.95升储存瓶，容易更换
油墨型式：多种油墨可用，依产品材质及应用而定。工作状态温度10-45℃，相对湿度最大90?,无冷凝操作简易操作
经由一个外部终端机，图标使用者接口(所见即所得)
硬件特性：外围装置，例如：XY轴系统、图像识别控制、识别设备或条形码读取机，是经由一预先定义接口来控制及同步运作
文 件：自动日期、有效日期、Julian日期、流水号、时间、变动识别、条形码、符号等等
错误诊断：全文显示时自动错误诊断
喷印速度：最快2645字符/秒
距 离：喷头-目标1-20mm
喷印高度：0.8-15mm(最多4行5X5点阵)
喷印分辨率：垂直方向24点；自由选择喷印点阵；一个文件内可以由任何点阵组成
介 面：RS232
供给电压：AC115-230V±10%，50/60Hz，消耗功率1.2/0.6A
安全标准：油墨回流控制；黏度及油墨位准控制；远程监控喷印错误；电子及油墨系统分开安装；
低排放系统；防护液体进入（外壳）：IP55。视技术修正而定
German Metronic E-type machine (small characters) Features
Size: Control Components 562mmX403mmX251mm (length x width x high) .
Nozzle : 40mmX169mmX40mm (length x width x high) .
Weight: Approximately 26 kg.
Shell: stainless steel IP55 .
Enclosure printing systems: Continuous ink jet (CIJ) system consisting of control.
Ink jet printing system: components0.95 l storage bottle, easy to replace.
Ink jet type: a variety of ink types of ink can be used. Depending on product and application materials may be. Working state temperature 10-45 ℃, the maximum relative humidity of 90, Easy to operate without condensation operation by an external terminal, the icon user interface (WYSIWYG)
Hardware features: Peripheral devices, such as: XY axis system, image recognition controlidentify the device or bar code reader, is through a pre-defined interfaces to control and synchronize the operation of.
File: Automatic date, expiry date, Julian date, serial number, time, change identification, bar codes, symbols, etc.
Error diagnosis: Text display automatic error diagnosis .
Printing speed: 2645 characters / sec.
Distance: Sprinklers - target 1-20mm.
Print height: 0.8-15mm (up to 4 lines 5X5 dot matrix).
Printing resolution: Vertical 24-point; free to choose printing lattice; a document can be formed by any matrix,
Interface: RS232.
Supply voltage: AC115-230V10?, 50/60Hz, power consumption 1.2/0.6A.
Safety standards: Ink return control; viscosity and ink level control; remote monitoring printing error; electronics and ink system installed separately; low emission system; protective liquid into the (shell): IP55. As the technical amendments may be.
