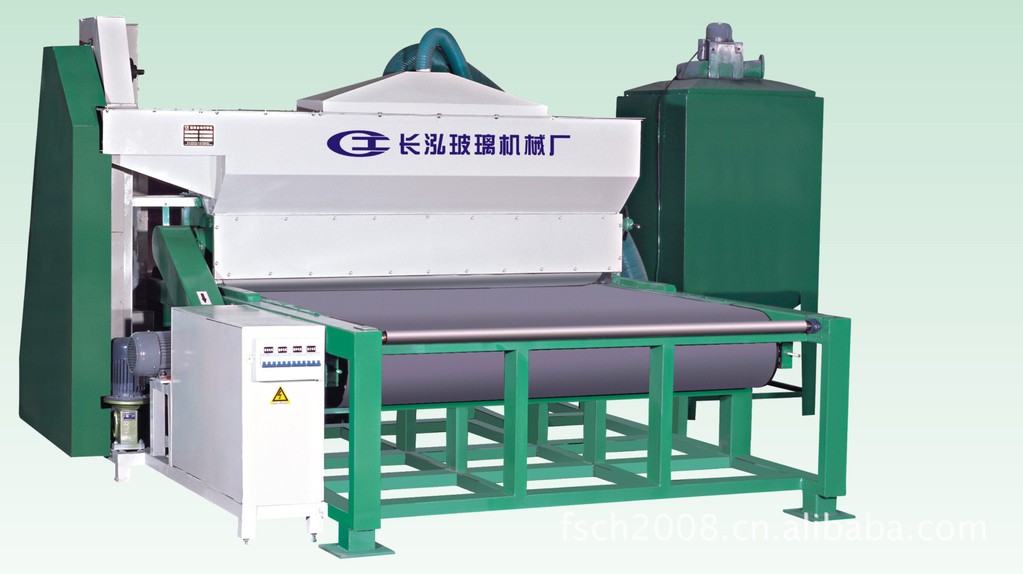

DS2100玻璃自动打砂机
DS2100 automatic machine Sand
主要技术参数:
1.整机尺寸:3900长×2900宽×1900高
2.最大加工宽度:2000mm
2.产量·平方/时:60M2(装载率∶100%)
3.抛沙刀具:8把钢刀
4.集尘机:功率0.55KW,排风量25M3/min
5.输送速度:0.2~0.8M/ min可调,采用无级调速
6.空压机:免
7.电源:三相380V交流,总功率为4.4KW
Main technical parameters :
1. Unit size : 3,900 (long) x 2,900 (wide )×1900 (high)
2. The width of the largest : 2000mm
2. Yield sq / hour : 60 M2(laods∶100%)
3. throwing sand tools : eight steel sword
4. dust collection machines : Power 0.55KW, ventilation volume 25M3/min
5. transmission speed : adjustable 0.2~0.8M/ min, using variable speed
6. Air Pressure Machine : --No
7. Source : 380V three-phase exchange, the total power of 4.4KW

玻璃自动打砂机机耗材主要有∶
1. 抛砂刀具 8片
2. 抛砂总成里面所有橡胶皮
3. 砂
本机使用砂的品质(建议∶本机使用-36#-棕刚玉-1级)
