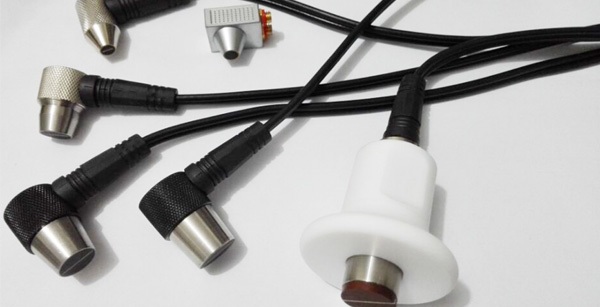

测厚探头系列(NDT,工业无损检测,换能器)
PT04
PT06

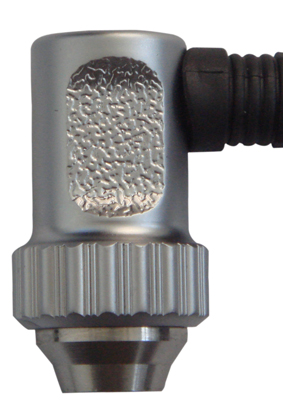

PT08

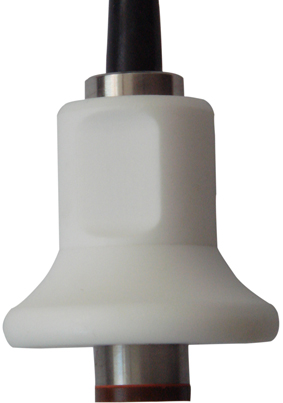

GT12

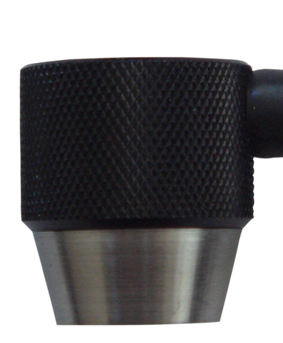

ZT12
| Model PT08 | Model PT06 | Model PT04 | Model ZT12 | Model GT12 |
Probe Style | Standard | Small tube | Fingertip | Cast iron | High temperature |
Frequency | 5MHz | 7.5MHz | 10MHz | 2MHz | 5MHz |
Contact Diameter | 11mm | 8mm | 6mm | 17mm | 15mm |
Range | 0.8～100.0mm | 0.8～30.0mm | 0.5～20.0mm | 4.0～508.0mm | 4.0～80.0mm |
Temperature | -10～70℃ | -10～70℃ | -10～70℃ | -10～70℃ | -20～300℃ |
