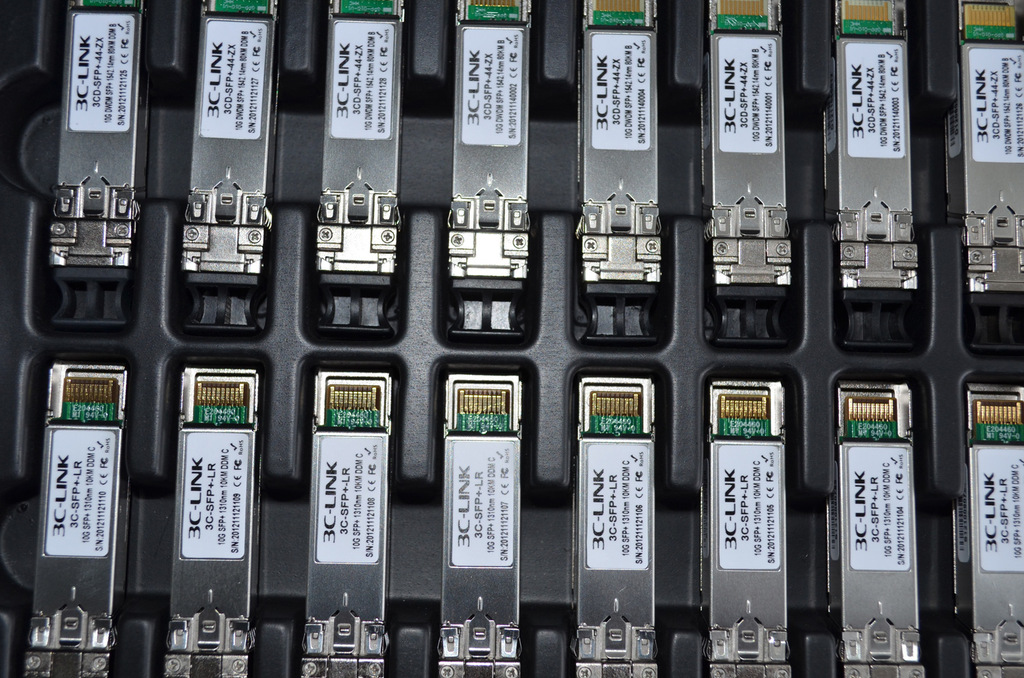

产品型号：3CD-SFP+-XX-ZX
产品描述： 10G DWDM, SFP+ Transceiver, 80km
特别说明：我们供货的是兼容产品，产品兼容以下品牌：
思科CISCO, 华为Huawei, 华三H3C, 惠普HP...等品牌交换机路由器。以及其他更多品牌：
3Com, Alcatel-Lucent, Allied Telesis, Avaya, Brocade, Blade, Bdcom, D-Link, Dell, Emulex, Enterasys, Extreme, Force10, Foundry, Hirschmann, IBM, Intel, Juniper, Linksys, Marconi, McAfee, Netgear, Nortel, Q-logic, Redback, SMC, SUN, TRENDnet, ZTE, ZYXEL,锐捷Ruijie,神州数码,格林耐特,联想,天融信...等确认兼容品牌或直接在订货时备注说明。
模块类型 | 传输距离 | 传输波长 | 接口类型 | 传输速率 | 工作电压 | 数字诊断 |
SFP+ | 80公里 | DWDM | 双LC接口 | 10G | 3.3V | 带 |
新华辰光电致力于为客户提供先进的光纤通讯产品。借助我们对国际前沿科技发展的不断跟踪和引进，我们可为用户提供全面的数据网络用光/电模块解决方案，包括GBIC、SFP、BIDI(单纤双向)、CWDM、DWDM、XENPAK、X2、XFP、SFP+等各种类型光/电收发一体模块，传输距离覆盖100米到200公里范围。我们的光/电模块具备和各种主流交换机系统的全面兼容能力，可广泛应用于IP局域网、城域网、广域网、电信传输网，为用户提供最为灵活的网络互联解决方案。
我们以丰富的产品系列和先进的创新技术为核心竞争力，已发展成为业内所有主要网络设备制造公司值得信赖的光模块产品供应商。我们的光/电收发一体模块以利用微处理器和数字诊断技术为依托，在电压、温度等因素宽泛变化的复杂环境中显示出卓越的稳定性能，并以领先的技术减少了产品的抖动、电磁干扰和功率损耗，全面提升了产品的品质。
Features
Wavelength selectable to C-band ITU-T grid wavelengths
Suitable for use in 100GHz channel spacing DWDM systems
XFP MSA Compliant
data rate from 9.95 Gbps to 11.1Gbps
No Reference Clock required
Cold Start up Wavelength Compliance
DWDM-rated EML transmitter and APD receiver
link length up to 80km
Low Power Dissipation 3.5W Maximum
-5ºC to 70ºC Operating Case Temperature
Diagnostic Performance Monitoring of module temperature, supply
Voltages, laser bias current, transmit optical power, receive optical power
RoHS compliant and lead free
Applications
SONET OC-192&SDH STM 64
10GEthernet
80 km10G Fiber Channel
DWDM Networks
Description
3C-LINK DWDM XFP Transceiver exhibits excellent wavelength stability, supporting operation at 100 GHz channel, cost effective module. It is designed for 10G DWDM SDH, 10GBASE-ZR and 10G Fiber- Channel applications.
The transceiver consists of two sections: The transmitter section incorporates a colded EML laser. And the receiver section consists of a APD photodiode integrated with a TIA. All modules satisfy class I laser safety requirements. 3C-LINK DWDM XFP transceiver provides an enhanced monitoring interface, which allows real-time access to device operating parameters such as transceiver temperature, laser bias current, transmitted optical power, received optical power and transceiver supply voltage.
