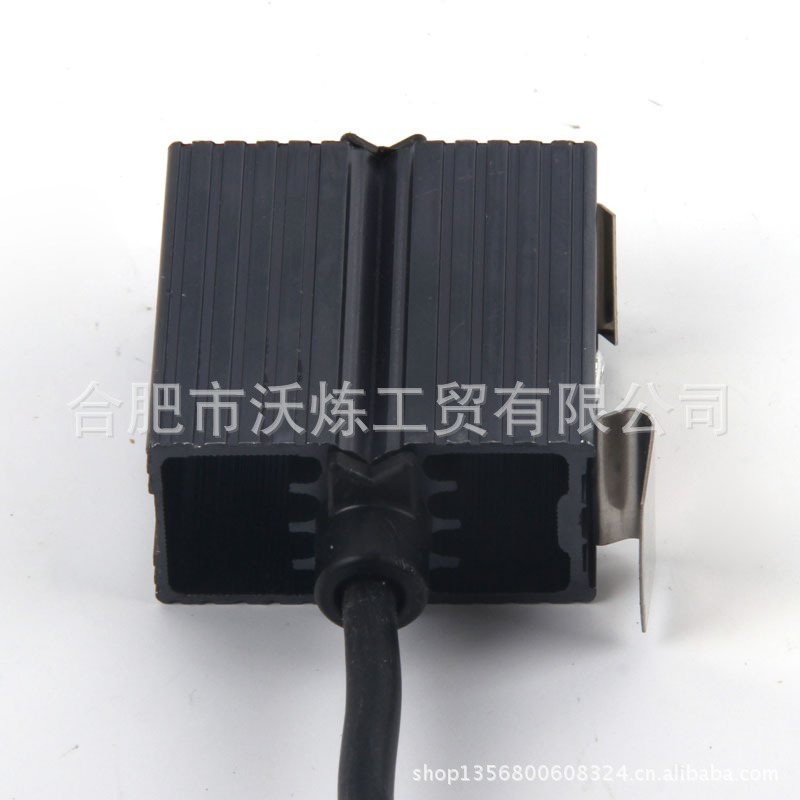

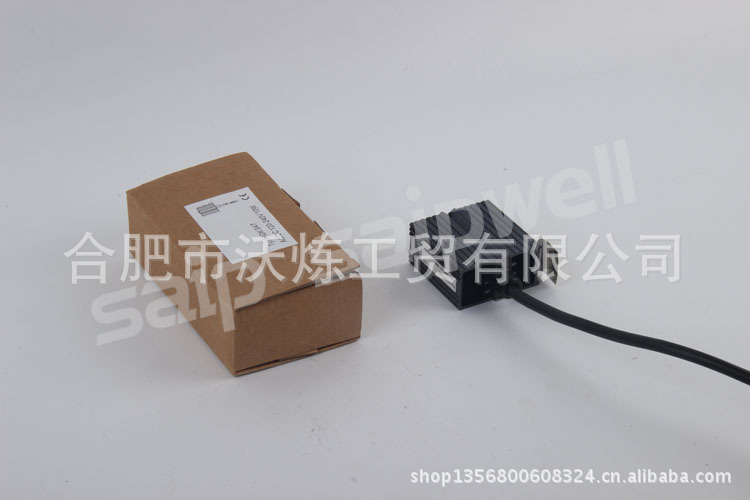

saipwell/赛普 HGL046,风扇加热器，机柜大功率加热器
合肥市沃炼工贸有限公司
中国
产品属性
图文详情
品牌推荐
型号
HGL046
温度范围
0-60℃
重量
1.47（kg）kg
外形尺寸
220（m）mm
加工定制
是
品牌
saipwell/赛普
| Heating element | resistance heater |
| Temperature safety cut-out | to protect against overheating in case of fan failure, |
| automatic reset | |
| Heater body | anodised extruded aluminium profile |
| Surface temperature | max. 75°C (400W) |
| Axial fan, ball bearing | Airflow, free flow |
| AC: 45m³/h (50Hz) or 54m³/h (60Hz) | |
| DC: 54m³/h | |
| service life 50,000h at 25°C (77°F) | |
| Connection | internal connection terminal 1.5mm² with strain relief, |
| clamping torque 0.8Nm max. | |
| Connection casing | plastic according to UL94 V-0, black |
| Mounting | clip for 35mm DIN rail, EN 60715 |
| Fitting position | vertical airflow (air outlet up) |
| Operating / Storage temperature | -45 to +70°C (-49 to +158°F) |
| Operating / Storage humidity | max. 90% RH (non-condensing) |
| Protection type / Protection class | IP20 / I (earthed) |
Note:In the case of 24VDC and 48VDC the fan heater has to be switched via a relay. For this purpose we recommend our electronic relay SM 010 (Art. No. 01000.0-00 and 01001.0-00).
| Art. No. | Operating voltage | Heating capacity | Pre-fuse T (time delay) | Length (L) | Weight (approx.) | Approvals |
| 04640.0-00 | 230VAC, 50/60Hz | 250W | 2A | 182mm | 1.1kg | VDE + UL File No. E150057 |
| 04641.0-00 | 230VAC, 50/60Hz | 400W | 4A | 222mm | 1.4kg | VDE + UL File No. E150057 |
| 04640.9-00 | 120VAC, 50/60Hz | 250W | 4A | 182mm | 1.1kg | VDE + UL File No. E150057 |
| 04641.9-00 | 120VAC, 50/60Hz | 400W | 5A | 222mm | 1.4kg | VDE + UL File No. E150057 |
| 04640.1-00 | 24VDC | 250W | 16A | 182mm | 1.1kg | UL File No. E234324 |
| 04640.2-00 | 48VDC | 250W | 8A | 182mm | 1.1kg | UL File No. E234324 |
| 04641.2-00 | 48VDC | 400W | 12.5A | 222mm | 1.4kg | UL File No. E234324 |
