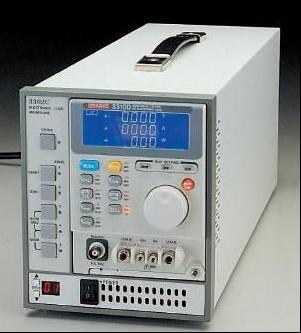

3310D电子负载：

■可同时显示电压值、电流值、瓦特值

■大型LED显示、以飞梭旋钮调整设定值

■定电流、定电阻、定电压、动态短路模式

■可执行OCP、OPP测试

■4位半之数字电压、电流以及功率表

■可安装于机框3302C(单组式)或3300C(四组式)上，且机框上具150组 存储/呼叫记忆

■定电流、定电阻、定电压、动态、短路模式

■于短路测试时可设定短路时间

■过电压，电流，功率，温度保护部分

■电压极性显示可设成正值（＋）或负值（－）

3310D电子负载一般规格：

■机框：3300C面板及遥控操作

■冷却方式：智能型风扇冷却

■重量：3.5公斤/模组

■尺寸：108W×143h×405d(mm)

3310D电子负载应用：

■    电压电流源测试

■    交换式电源供应器瞬时响应

■    定电压模式供限流测试及模拟电池

■    电池放电

■    电池充电

■    研发、品管

■    ATE系统

■    生产测试

说明：

■3310D系列负载模块能安装组合于3300C系列机框内，任意四个模组可装置于3300系列内，单个模块装置于3302内，详情请参阅3300系列机框说明。

■每个3310D系列模块均有独立的控制与显示面板，定电流/定电压/定功率/动能模式，配合3300C机框上的150组存储/呼叫记忆，能有效地控制所有负载的设定。

■可设定的吃载/停止吃载(LOAD ON OFF) 电压点及良/不良(GO NG)的比较判断功能。定功率模式及150组存储/呼叫记忆，使得此负载更适用于各种不同的应用。

3310D电子负载选用配件：

■BNC鳄鱼头   1个

■大香蕉插头     1个

■小香蕉插头     2个

■操作手册       1本

规格参数：

Model	3310D	3311D	3312D	3314D	3315D
INPUT RATING     Power Current Voltage	150W    30A     60V	300W    60A     60V	300W    10A     250V	200W      5A       500V	75W      15A       60V
CCMODE       Range   Resolution	Accuracy:±0.2% of (settting+range)
	0-3A/30A0.8mA/8.0mA	0-6A/60A1.6mA/16mA	0-1A/10A0.2666mA/2.66mA	0-0.5A/5A0.133mA/1.33mA	0-1.5A/15A0.4mA/4.0mA
CRMODE      Range  Resolution	Accuracy:±0.2% of (settting+range)
	0.1067-2-7.5kΩ 0.533mΩ/0.133mS	0.0533-1-3.75kΩ 0.266mΩ/0.266mS	1.333-25-18.75kΩ 6.666mΩ/0.053mS	5.333-100-18.75kΩ 26.66mΩ/13.333uS	0.213-15kΩ1.066mΩ/66.666uS
CV MODE       Range   Resolution	Accuracy:±0.1% of (settting+range)
	0-60V 0.016V	0-60V 0.016V	0-250V 0.0666V	NO	0-60V 0.016V
CP MODE     Rangge   Resolution	Accuracy:±0.5% of (settting+range)
	0-150W 0.04W	0-300W 0.08W	0-300W 0.08W	0-200W 0.0533W	0-75W   0.02W
DYNAMIC MODE Rise/Fall Slew Rate	THIGH/TLOW:50uSec to 9.999Secretary
	2.0-125mA /uSec 20mA-1.25A/uSec	4-250mA /uSec 40mA-2.5A/uSec	0.8-50mA /uSec 8mA-0.5A/uSec	0.4-25mA /uSec 4mA-0.25A/uSec	1.0-62.5mA /uSec 10mA-0.625A/uSec
4 1/2 DVM     Range   Resolution	Accuracy:±0.05% of (settting+range)
	15V-60V 1mV/2mV	15V-60V 1mV/2mV	30V-300V 1mV/10mV	60V-600V 2mV/20mV	15V-60V 1mV/2mV
4 1/2 DAM     Range   Resolution	Accuracy:±0.2% of (settting+range)
	3A-30A   1mA	6A-60A1mA/2mA	1A-10A0.1mA/1mA	0.5A-5A0.1mA/1mA	1.5A-15A0.1mA/1mA
LoadONVoltage Load OFF Voltage	0.1V-2.5V           0-25V		0.2-500V 0-50V	0.4-100V 0-100V	0.1-25V 0-25V
I monitor	3A/V	6A/V	1A/V	0.5A/V	1.5A/V
