由于产品规格不同（材质、尺寸等），价格也不同；所以具体价格请以协商后的报价为准。
Temperature 温度 | | Cryogenic to +1500°F 低温到+1500°F | Pressure Range 压力范围 | | 1164 PSIG to 4250 PSIG (Depending on size) 1164 PSIG - 4250 PSIG（根据尺寸） | Sizes 尺寸 | | 1/4" through 2" | Braid 编织 | | Two heavy braids of series 300 stainless steel 双编织，300系列不锈钢 | End Fittings 端口连接 | | Wide variety. See brochure. Carbon steel, stainless steel, copper, special alloys 品种繁多。碳钢，不锈钢，特殊钢，铜合金 | Hose 软管 | | Type 316 stainless steel close pitch heavy wall 316不锈钢密波厚壁 | Vacuum Rating 真空等级 | | Full vacuum 全真空 |
材料：
软管：316L不锈钢
编织：300系列不锈钢
压力应用：工作压力
结构：对接焊，液压成形，厚壁压缩软管，双编织。
特点：为最苛刻的压力和弯曲条件的超高压软管。 MATERIAL:
Hose: 316L Stainless Steel
Braid: 300 Series Stainless Steel
Pressure Applications: Full vacuum to working

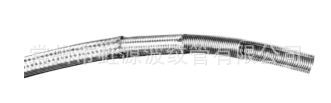

CONSTRUCTION: Butt welded, hydro formed, heavy wall compressed hose with double braid.

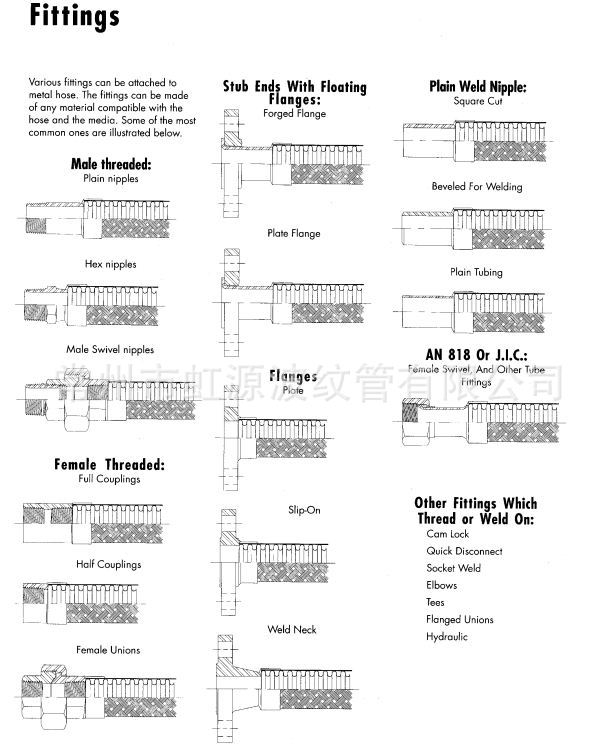

CHARACTERISTICS: Ultra high pressure hose for the most demanding pressure and flexing conditions. 各种接头方式：
|
