由于产品规格不同（材质、尺寸等），价格也不同；所以具体价格请以协商后的报价为准。
Temperature 温度 | | To +450°F +450°F | Pressure Range 压力范围 | | 109 PSIG to 1506 PSIG (Depending on size) 109 PSIG - 1506 PSIG （根据尺寸） | Sizes 尺寸 | | 1/4" through 4" | Braid 编织 | | Single or double bronze braid 单或双的铜编织 | End Fittings 端口连接 | | Wide variety. See brochure. Carbon steel, stainless steel, or copper 品种繁多。碳素钢，不锈钢，或铜 | Hose 软管 | | Butt-welded, mechanically formed close pitch corrugated bronze hose. Annular construction 对接焊接，密波，环形 | Vacuum Rating 真空等级 | | Full vacuum 全真空 |
|
MATERIAL:
Hose: Bronze
Braid: Bronze
Pressure Applications: Full vacuum to working

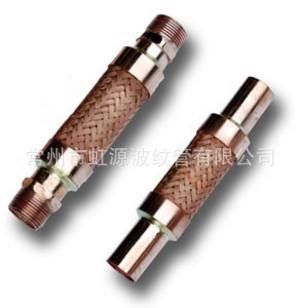

CONSTRUCTION: Butt-welded, mechanically formed close pitch corrugated hose. Annular construction.
CHARACTERISTICS: Ideal for connection to copper piping。 材料：
软管：青铜
铜编织网
压力应用：全真空至工作
结构：对焊，紧密的间距波纹软管。环形。

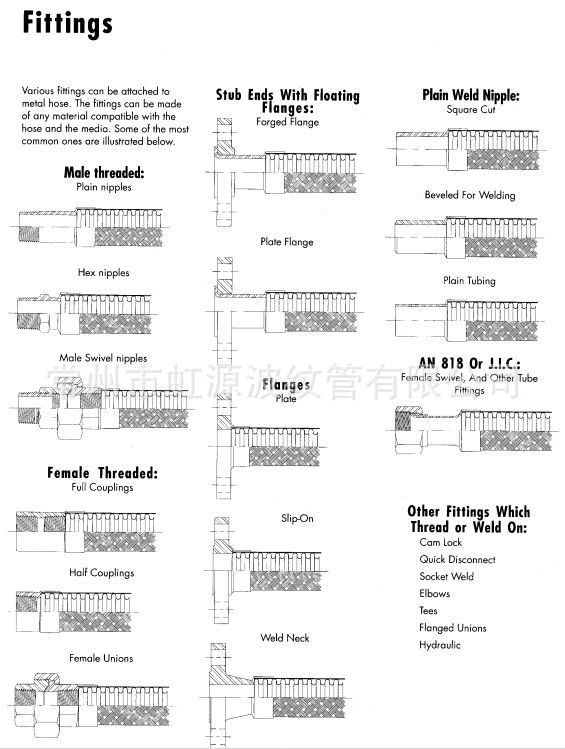

特性：连接铜管的理想选择。 各种接头方式：
|
