概述
YY系列电动机是最新设计的全封闭式单相电容运转异步电动机，具有结构简单，运行可靠、维护方便及技术经济指标优异等特点。广泛适用于录音机、家用电器、泵、风扇、电影放映机、记录仪表等。
TECHNICAL DATA |
|
|
|
|
|
|
|
| ||
TYPE | RATED OUTPUT | Full Load | Locked rator current(A) | Tst/TN | Tmax/TN | |||||
W | Hp | Speed | Current | Eff | Power | |||||
(r/min) | (A) | (%) | Factor | |||||||
YY | 632-2 | 180 | 1/4 | 2800 | 1.37 | 65 | 0.92 | 5 | 0.4 | 1.7 |
YY | 631-2 | 250 | 1/3 | 2800 | 1.87 | 66 | 0.92 | 7 | 0.4 | 1.7 |
YY | 711-2 | 370 | 1/2 | 2800 | 2.73 | 67 | 0.92 | 10 | 0.35 | 1.7 |
YY | 712-2 | 550 | 3/4 | 2800 | 3.88 | 70 | 0.92 | 15 | 0.35 | 1.7 |
YY | 801-2 | 750 | 1 | 2800 | 5.15 | 72 | 0.92 | 20 | 0.33 | 1.7 |
YY | 802-2 | 1100 | 1.5 | 2800 | 7 | 75 | 0.95 | 30 | 0.33 | 1.7 |
YY | 90S-2 | 1500 | 2 | 2800 | 9.44 | 76 | 0.92 | 45 | 0.3 | 1.7 |
YY | 90L-2 | 2200 | 3 | 2800 | 13.67 | 77 | 0.95 | 65 | 0.3 | 1.7 |
YY | 631-4 | 120 | 4/25 | 1400 | 1.06 | 57 | 0.9 | 3.5 | 0.4 | 1.7 |
YY | 632-4 | 180 | 1/4 | 1400 | 1.54 | 59 | 0.9 | 5 | 0.4 | 1.7 |
YY | 711-4 | 250 | 1/3 | 1400 | 2 | 61 | 0.92 | 7 | 0.35 | 1.7 |
YY | 712-4 | 370 | 1/2 | 1400 | 2.95 | 62 | 0.92 | 10 | 0.35 | 1.7 |
YY | 801-4 | 550 | 3/4 | 1400 | 4.25 | 64 | 0.96 | 15 | 0.35 | 1.7 |
YY | 802-4 | 750 | 1 | 1400 | 5.45 | 68 | 0.92 | 20 | 0.32 | 1.7 |
YY | 90S-4 | 1100 | 1.5 | 1400 | 7.4 | 71 | 0.95 | 30 | 0.32 | 1.7 |
YY | 90L-4 | 1500 | 2 | 1400 | 9.83 | 73 | 0.95 | 45 | 0.3 | 1.7 |

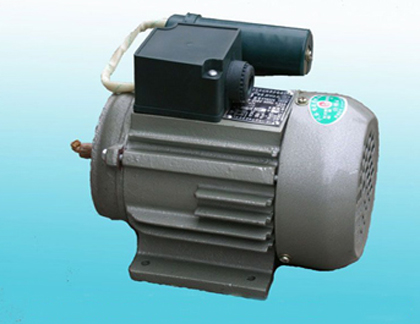

YY系列单相电容运转电动机
