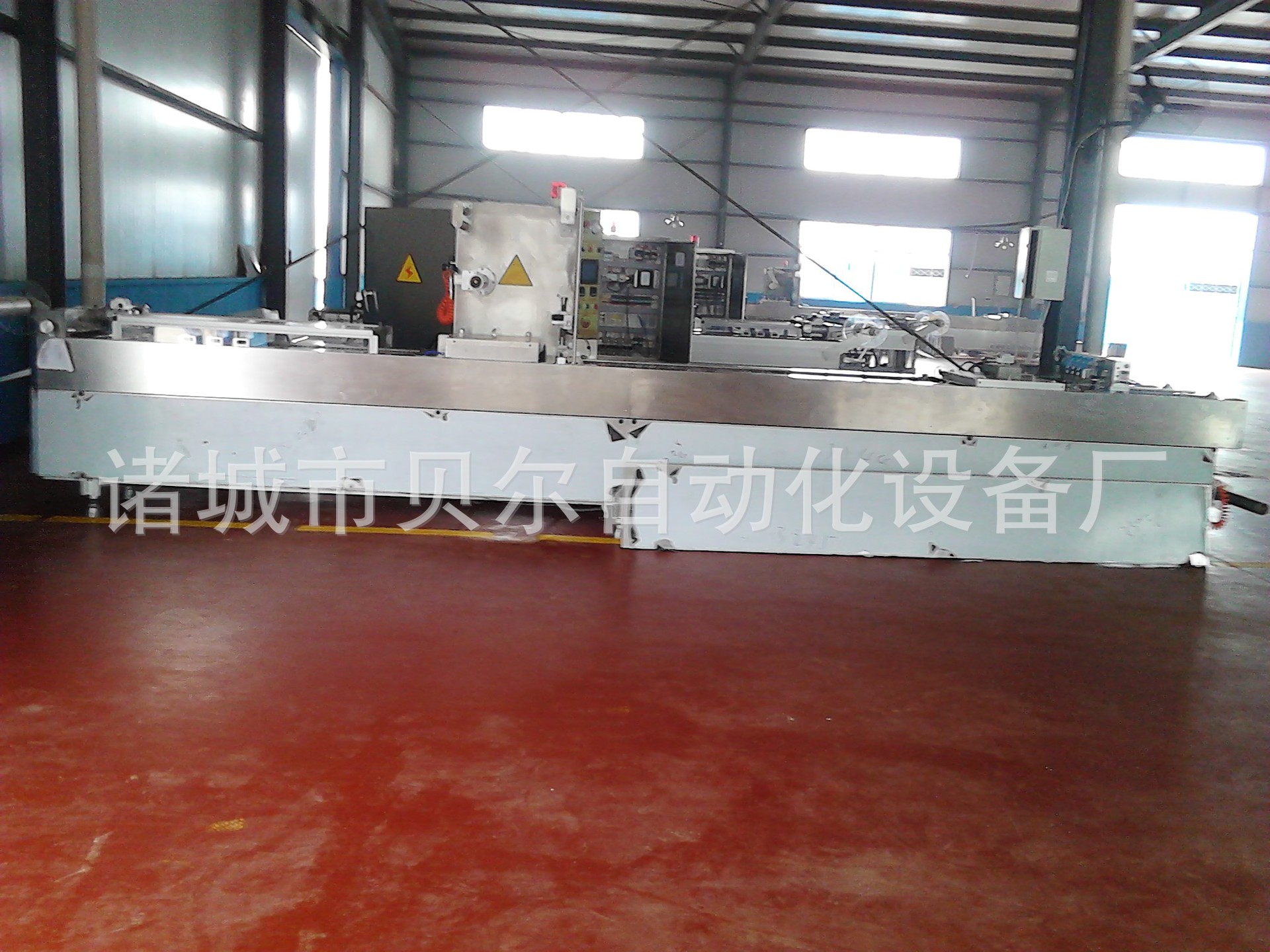

The configuration list of LZ-420 automatic stretching film vacuum packing machine
Item | Parameter | Remarks |
Upper film width（mm） | 396 | |
Lower film width（mm） | 422 | |
Sizes of work chamber(mm) | 400*(200~400) | |
Die size（mm） | 394*386 | |
Maximum elongation(mm) | 80 | |
Dimension (L×W×H) (mm) | 5500*900*1700 | |
Machine weight（kg） | 2400 | |
Electrical source | 380V，50HZ | |
Power (KW) | 12 | |
Machine configuration
Serial number | Item | Brand | Remarks |
1 | Vacuum pump | Germany Busch | 202 |
2 | Photoelectric tracking system | Italy | |
3 | Cooling system of heat sealing studio. | | |
4 | Temperature control system | Japan OMRON | |
5 | Temperature sensor | Japan OMRON | |
6 | automatic lubricating system | Taiwan AIRTAC | |
7 | Open-phase protection system | | Protect the machine from being damaged, equipment automatic shutdown as a result of the grid phase. |
8 | Leakage protection system | | Protect the safety of operators, |
9 | Phase sequence protection system | | Protect the machine from damage |
10 | Cooling system | | |
11 | Two sets of dies | | Free of charge with two sets of dies, and each set charges 10000 RMB if more than two |
12 | Stainless steel chains | | |
13 | Pneumatic components | Taiwan AIRTAC | |
14 | Pneumatic valve | Japan SMC | |
15 | Waste recovery device | | |
16 | Integral aluminum alloy plate bracket | | National patent product, the patent number: ZL2004 200390983 |
17 | Vacuum valve | SMC of Japan | |
18 | touch screen | Mitsubishi | GT1050-QBBD-C |
19 | Computer | Mitsubishi | FX1S-30MY-001 |
20 | Servo motor | Panasonic | MCDHT5540E |
21 | Automatic printer | | All production date, batch number and product information can be printed |
22 | Pneumatic tension film loading device | | Pneumatic brake, prestressed adjustable |
Price of LZ420 :(380000.00 RMB)
Another quotation will sent if the machine need to be made specially, you can directly dial my telephone: 15165661068 (Miss Liu), you can also send email to 2769572856@qq.com, Hope to become your long-term partner and wish your business flourishes
'
