1. 概述:
广泛应用于FTTH网络,电信网络,CATV网络,数据通信网络,局域网等。
1. Description:
u Widely used in FTTH access network.
u Telecommunication Networks
u CATV Networks
u Data communications Networks
u Local Area Networks
2产品特点:
l 产品由优质抗冲击塑料制成,具有标准的用户使用界面。
l 能容纳安装1x8 或 1X16 PLC 分路器。
l 具有抗紫外线,冲击,和防水功能。
l 最多可容纳16根FTTH 用户光缆。
l 可挂墙和抱杆安装。
l 有2光缆入口,和16光缆出口。
2. Features
l Industry Standard User Interface, be made of high impact plastic.
l Can accommodate 1x8 & 1X16 PLC splitter.
l Anti-UV, Ultra violet resistant and rainfall resistant.
l Up to 16 FTTH drops.
l Wall and pole mountable.
l 2 inlet ports, 16 outlet ports.
3.产品规格Specifications:

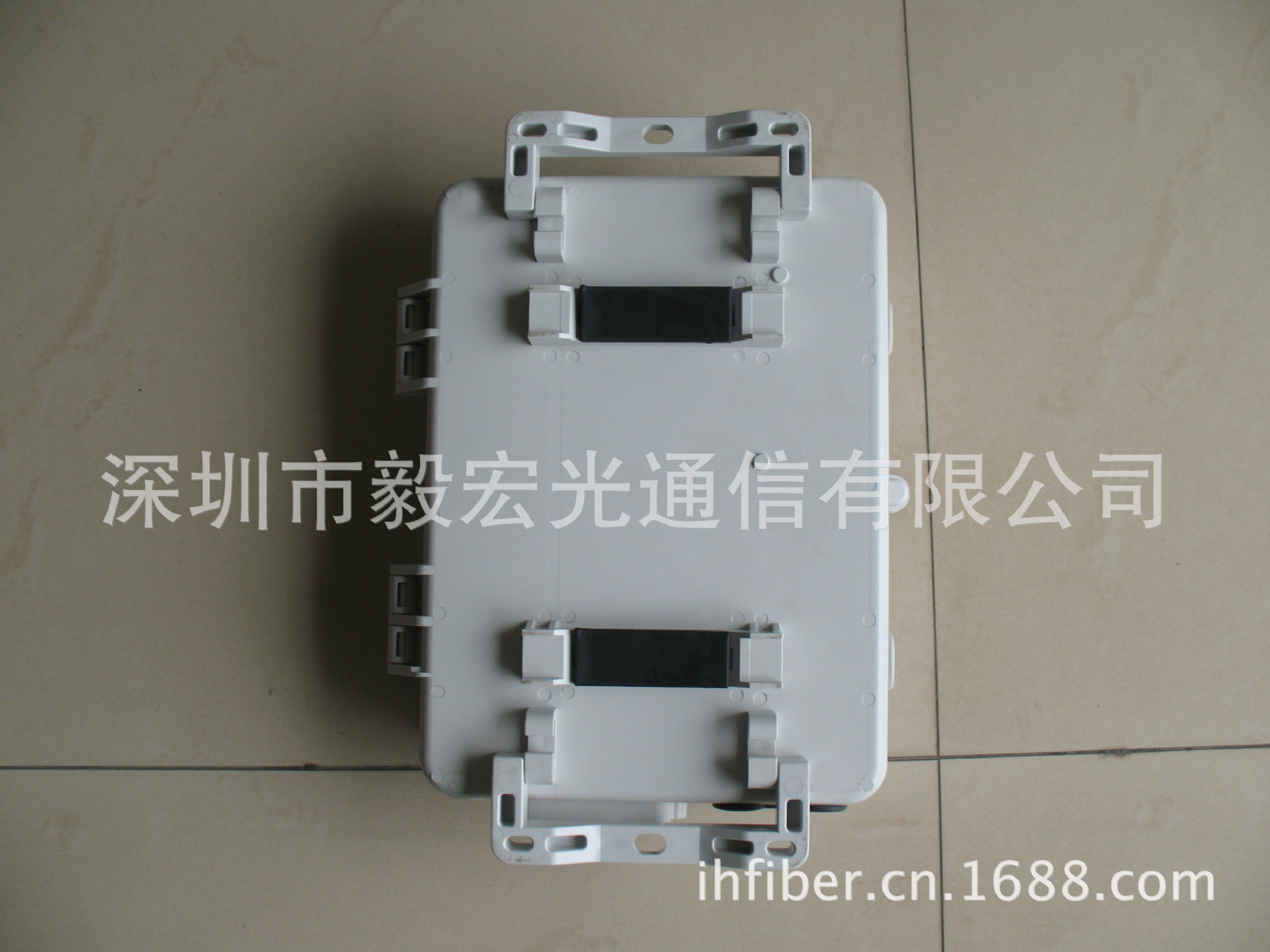

品名Item | 规格Type | 尺寸Size |
FDB0216 | 16口 port | 260mm宽(W)x320mm高(H)x115mm深(D) |
4.包装Packing information:
型号Model | 净重N.W (kg/pcs) | 外包装尺寸DIM of Outer CTN (mm) | 外包装毛重G.W of Outer CTN (kg/ctn) | 箱数No of Products (pcs/ctn) |
FDB0216 | 1.48 | 560*360*630 | 16.5 | 10 |
