罗兰电力电厂标识打印机2,015 (W) x 705 (D) x 1,105 (H) mm
广州市享润电子科技有限公司
广州市天河区花城大道3号2302-03室
产品属性
图文详情
品牌推荐
品牌/型号
罗兰/2,015 W x 705 D x 1,105 H mm
品牌
罗兰
型号
2,015 W x 705 D x 1,105 H mm
规格
1070mm
尺寸
2,015 W x 705 D x 1,105 H mm（cm）
| Printing technology | Piezoelectric inkjet | ||
| Media | Width | 182 to 1,071 mm (7.2 to 42.2 in.) | |
| Thickness | Maximum 1.0 mm (39 mil) with liner for printing Maximum 0.4 mm (16 mil) with liner and 0.22mm (9mil) without liner for cutting | ||
| Roll outer diameter | Maximum 210 mm (8.3 in.) | ||
| Roll weight | Maximum 25 kg (55 lb.) | ||
| Core diameter*1 | 76.2 mm (3 in.) or 50.8 mm (2 in.) | ||
| Printing / cutting width*2 | Maximum 1,046 mm (41.2 in.) | ||
| Ink cartridges | Type | Roland ECO-SOL MAX INK | |
| Capacity | 220 cc or 440 cc | ||
| Colors | Eight colors (cyan, magenta, yellow, black, light cyan, light magenta, metallic silver and white), six colors (cyan, magenta, yellow, black, light cyan, and light magenta), or four colors (cyan, magenta, yellow, and black) | ||
| Printing resolution (dots per inch) | Maximum 1,440 dpi | ||
| Cutting speed | 10 to 300 mm/s | ||
| Blade force | 30 to 300 gf | ||
| Blade offset | 0 to 1.5 mm (0 to 0.059 in.) | ||
| Software resolution (when cutting) | 0.025 mm/step (0.000984 in./step) | ||
| Distance accuracy (when printing)*3 *4 | Error of less than ±0.3% of distance traveled, or ±0.3 mm, whichever is greater | ||
| Distance accuracy (when cutting)*3 | Error of less than ±0.4% of distance traveled, or ±0.3 mm, whichever is greater When distance correction has been performed (when the setting for [CUTTING MENU] - [CALIBRATION] has been made): Error of less than ±0.2% of distance traveled, or ±0.1 mm, whichever is greater | ||
| Repeatability (when cutting)*3 *5 | ±0.1 mm or less | ||
| Alignment accuracy for printing and cutting*3 *6 | ±0.5 mm or less | ||
| Alignment accuracy for printing and cutting when reloading media*3 *7 | Error of less than ±0.5% of distance traveled, or ±3 mm, whichever is greater | ||
| Media heating system*8 | Print heater | Setting range for the preset temperature: 30 to 45°C (86 to 112°F) | |
| Dryer | Setting range for the preset temperature: 30 to 50°C (86 to 122°F) | ||
| Connectivity | Ethernet (10BASE-T/100BASE-TX, automatic switching) | ||
| Power-saving function | Automatic sleep feature | ||
| Power requirements | AC 100 to 120 V ±10%, 7.2A, 50/60 Hz or AC 220 to 240 V ±10%, 3.7A, 50/60 Hz | ||
| Power consumption | During operation | Approx. 960 W | |
| Sleep mode | Approx. 14.5 W | ||
| Acoustic noise level | During operation | 64 dB (A) or less | |
| During standby | 41 dB (A) or less | ||
| Environmental | Power on | Temperature: 15 to 32°C (59 to 90°F) [20°C (68°F) or more recommended], Humidity: 35 to 80%RH (no condensing) | |
| Power off | Temperature: 5 to 40°C (41 to 104°F), Humidity: 20 to 80%RH (no condensing) | ||
| Dimensions (with stand) | 2,015 (W) x 705 (D) x 1,105 (H) mm (79.4 (W) x 27.8 (D) x 43.5 (H) in.) | ||
| Weight (with stand) | 105 kg (232 lb.) | ||
| Included items | Stand, power cord, blade, blade holder, media clamps, media holder, replacement blade for separating knife, software RIP, user's manual, etc. | ||
| *1 | The media holder of this machine is exclusively for media with a paper tube core inner diameter of 3 inches. To use a 2 inch media core, please use the optionally available media flanges. |
| *2 | The length of printing or cutting is subject to the limitations of the program. |
| *3 | Using Roland specified media, loaded correctly, temperature: 25°C (77°F), humidity: 50 %RH, all pinch rollers are used, 25 mm or more for both right and left margins and 35 mm or more front margin, excluding expansion or contraction of the media. and all correction and adjustment functions of this machine have been made properly. Not assured when the print heater or dryer is used. |
| *4 | Using Roland specified media, print travel of 1m. |
| *5 | [PREFEED] menu item must be set to "ENABLE," 64-inch and 54-inch models, media over 610 mm wide, and 4,000 mm long. Media 610 mm wide or less and 8,000 mm long.42-inch and 30-inch models, 3,000 mm long. |
| *6 | Provided that media length is under 3,000 mm. Excluding possible shift caused by expansion/contraction of the media and/or by reloading the media. |
| *7 | Using Roland specified media, data size: 1,000 mm in the media-feed direction, 1,600 mm (64-inch model), 1,346 mm (54-inch model), 1,046 mm (42-inch model), or 736 mm (30-inch model) in the carriage-movement direction. No lamination. Automatic detection of crop marks at 4 points when media is reloaded. During cutting, [PREFEED] menu item must be set to "ENABLE." Excludes the effects of skewed movement and of expansion and contraction of the media. |
| *8 | Warm-up is required after powerup. This may require 5 to 20 minutes, depending on the operating environment. The preset temperature may fail to be reached depending on the ambient temperature and media width. |
| Operating system | Windows®7 Professional or Ultimate (32-bit); Windows Vista®Business/Ultimate (32-bit); Windows®XP Professional Service Pack 2 or later (32-bit) |
| CPU | CoreTM2 Duo, 2.0 GHz or faster recommended |
| RAM | 2 GB or more recommended |
| Video card and monitor | A resolution of 1,280 x 1,024 or more recommended |
| Free hard-disk space | 40 GB or more recommended |
| Hard-disk file system | NTFS format |
| Optical drive | DVD-ROM drive |
| Adobe®Illustrator®10, CS, CS2, CS3, CS4, CS5 / CorelDRAW®11, 12, X3, X4, X5 |
| Model | Description | |
| ECO-SOL MAX Media (for banners, posters, POPs and vehicle graphics, etc.) | SV-G-610G | Gray adhesive vinyl, 610 mm x 30 m (24" x 98') |
| SCM-GPPG-50-914 | White glossy photo paper, 914 mm x 50 m (35" x 164') | |
| MPP-SG-1067 | Semi glossy photo paper, 1067 mm x 30 m (42" x 98') | |
| SP-CL-1000T | Clear PET film, adhesive, 1000 mm x 20 m (39" x 65') | |
| SP-CL-515T | Clear PET film, adhesive, 515 mm x 20 m (20" x 65') | |
| SCM-GPPM-50-762 | Photo mat paper, 762 mm x 50 m (30" x 164') | |
| ECO-SOL MAX Media (for decals) | SCM-GGPET-40-500 | Glossy gold PET, adhesive, 500 mm x 40 m (19" x 131') |
| SCM-GSPET-40-500 | Glossy silver PET, adhesive, 500 mm x 40 m (19"x 131') | |
| SCM-GGPVC-40-610 | Glossy gold vinyl, adhesive, 610 mm x 40 m (24" x 131') | |
| SCM-GSPVC-40-610 | Glossy silver vinyl, adhesive, 610 mm x 40 m (24" x 131') | |
| SP-M-1270 | Matte PET film, 1270 mm x 30 m (50" x 98') | |
| SP-M-610 | Matte PET film, 610 mm x 30 m (24" x 98') | |
| ECO-SOL MAX Media (for garment heat transfer) | SCM-TTRH-25-750 | Garment heat transfer, 750 mm x 25 m (29" x 82') |
| HTSP-10-500 | Special silicon paper for matte finish, 500 mm x 10 m (19.68" x 32.8') | |
| HTTA-25-500 | Application film, 500 mm x 25 m (19" x 82') | |
| ECO-SOL MAX INK | ESL3-4MG | Magenta, 440 cc |
| ESL3-4YE | Yellow, 440 cc | |
| ESL3-4CY | Cyan, 440 cc | |
| ESL3-4BK | Black, 440 cc | |
| ESL3-4LC | Light cyan, 440cc | |
| ESL3-4LM | Light magenta, 440cc | |
| ESL3-MG | Magenta, 220 cc | |
| ESL3-YE | Yellow, 220 cc | |
| ESL3-CY | Cyan, 220 cc | |
| ESL3-BK | Black, 220 cc | |
| ESL3-LC | Light cyan, 220cc | |
| ESL3-LM | Light magenta, 220cc | |
| ESL3-MT | Metallic silver, 220 cc | |
| ESL3-WH | White, 220 cc | |
| Cleaning cartridge | SL-CL | Cleaning liquid, 1 pc. |
| Blades | ZEC-U5022 | For thick, reflective and fluorescent vinyl, 2pcs. |
| ZEC-U5025 | For thick, reflective and fluorescent vinyl, 5pcs. | |
| Blade Holders | XD-CH2 | Blade holder with blade extension abjuster, made of aluminum |
| XD-CH3 | Blade holder with blade extension adjuster, made of resin | |

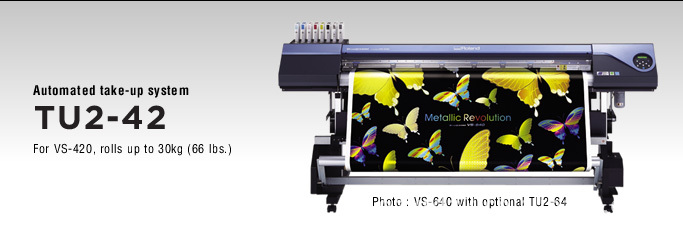

| Automated take-up system | TU2-42 | For VS-420, rolls up to 30kg (66 lbs.) |
| TUC-2 | Controller for TU2-64/54/42/30 take-up system |
