直流鼓风机/小型鼓风机/DC鼓风机厂家直销广东省鼓风机竞争力最强的厂商, 框叶采用PBT料一次性成型,低噪音含油合铜轴承或进口滚珠轴承,风量、大,噪音小,工作稳定。电压,电流,转速等参数可按照客户的要求制作。产品广泛应用于净化器,加湿器,跑步机,气模,卡通玩具,医疗设备,机械设备,烘烤箱,烤炉,气化炉等领域。 尺寸齐全,自40x40x10mm至150x150x32mm,电压规格5/12/24/48V皆完备;使用范围广泛,气模,加湿器,环保净化等等可适用於手提电脑散热模组、显示卡晶片散热系统、个人电脑、硬碟机、光碟机、伺服器、各式事务机器散热系统、不断电有源系统、网路设备等用途。
特征:
1. 低启动电压,高效率设计。
2. 智慧型锁住及自动启动设计。
3. 特殊“脉波调控转速”(PWM)设计。
4. 专利後略式高效率扇叶设计。
5. 高效率涡卷离心框体设计。
品种最多,规格最齐全的直流鼓风机生产厂家。产品有风量大,风压大,寿命长的特点。
产品规格:

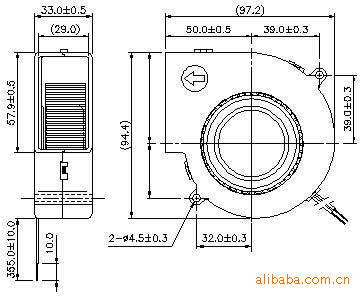

40x40x20mm,50x50x15mm,60x60x28mm,75x75x30mm,97x94x33mm,120x120x32mm,150x150x32mm
操作电压:3V/5V/9V/12V/24V/48V
运转速度:1500-6800RPM
轴承方式:含油型/滚珠型
产品特点:体积小,风量大,转速高,噪声低
性能及优点:公司技术力量雄厚、工业先进、检测设备齐全、拥有一批专业管理人才和熟练的专业员工,公司严格按照ISO9002质量体系标准管理,已通过CE、CCC,ROHS认证,产品质量可靠,远销欧美、东南亚等地区,深受广大客户的认可和信赖。
公司本着“以诚为本,以客为尊,质优价廉,服务至上”的宗旨,努力为客户解决通风散热的技术难题,满足市场的各种要求,为广大新老客户提供高品质的产品和优质的服务。产品包装: 纸 产品用途:产品适用于电脑及其相关设备包括家电系列、音响系列、及需要散热等功能及环保产品;广泛应用于电脑、通讯设备、变频器、柜员机、电源机箱、焊接机、影音设备、舞台灯具及其它周边散热、设备等等。售后服务:由于我司产品本身质量问题,我司承诺一年内保修产品特点
* 节省电能,降低能源消耗,节约生产成本,节电率达到20%以上。
* 提高电网功率因数,节省就地补偿装置,电网功率因数可较大幅度的提高。
* 平滑启动,消除启动时的大电流冲击,启动时电机电流可限制在其额定电流的120%以内。
* 减轻电机轴承等运动部件的磨损程度,延长其使用寿命。
* 具有完善的保护和自保护功能保证设备安全运行。
* 设备故障率下降,可靠性提高,减少备品备件消耗,降低维修成本。
* 数码智能控制,具有强大的自变功能,适时动态调节,自动适应负载工况的变化,无需人工调整。
*省电、节电切换,风机、空压机、水泵智能控制节电器具有完善的市电、节电转换功能,特殊情况下,节电调速器发生故障,可以切换到市电运行,不会影响设备的正常运行。

| 规 格 说 明 书 |
| Specifications |
| 9、注意事项(Notes): |
| 9-1、使用时请勿超出本规格所规定之极限,否则我们不保证此产品 |
| We will not guarantee the products if the application of our products are exceeded the limitation which is specified on this specification. |
| 9-2、倘若要变更此份文件的任何规格,请务必事先提出需求 |
| In case of changes of the specification specified on this document.A written notice is requested in advance. |
| 9-3、请勿触压着叶片以及电源线缠绕着风扇或用用拉扯电源线,如此轴心与电源线将会被损毁 |
| Please do not touch the impeller with the pressure and never bring the fan with lead wire.The bearing and lead wire may be damaged. |
| 9-4、本产品不保证因粉尘、水滴、小虫进入,而影响寿命与不良品产生 |
| No guarantee on the products against the safety problem or failure caused by powder dust, drop of water or insect. |
| 9-5、如有任何资料及文件与此份资料不同,将以此份资料为主要参考 |
| If there is any data or related documentation different from this data sheet.This data sheet is the principle reference. |
| 9-6、请勿在可燃性气体与任何有害环境中使用 |
| Please do not use the fan in the environment of corrosive gas or liquid or any detrimental gas. |
| 9-7、请于六个月内使用,否则风扇存放在很高温或很低温,温度很高或室温中风扇于六个月后会有漏电流产生 |
| Please do not store the fan in the environment of high/low temperature, high humidity or detrimental gas. Please store within six months,every six months,shall be a leakage of electric current to the fan, even though thg fan is stored in roo |
| 9-8、当风扇于运转中,请勿企图将风扇锁死特别长的时间,如此,会因连续停止不转,产生高热而烧毁风扇 |
| While the fan is in operation, please do not lock the fan intentionally for a long periods of time, since the continuous stoppage will result in overheat and thus burnt out the fan |
| 9-9、组装风扇时,请特别注意,因共振或振动产生的噪音 |
| During the installation of the fan, please pay substantial attention to possible notice caused by resonance vibration and shock. |
| 9-10、当搬运或作业中,风扇如从60cm的高度落下,将会对叶片的平衡产生若干影响,特别是滚珠轴承避免掉落 |
| It is very important to notify that avoid to drop from 60cm height when in any movement or operation,it will impact the balance of blade. Especially ball bearing structure is avoided to drop down. |
| 9-11、锁外壳之螺丝扭力不得超 4Kgf |
| The torque of the screw which locked the frame should not exceed 4 Kgf |
| 规 格 说 明 书 |
| Specifications |
| 10、转速侦测 RPM detection |
| | | | | | | | | | | | | | | |
| | | | | 1 Cycle | | | | | | | |
| | | | | | | | | | | | | | | |
| | | | | Timer (X) | | | | | | | |
| 转动 Running | | | | T1 | | T3 | | | | | 电 压 强 度 | Voltage Strength(y) | 磁场强度 | (Magnetism Strength |
| | | | | | T2 | | T4 | | | |
| | | | | | | | | | VOL | |
| | T=T1+T2+T3+T4 | | | | | | |
| | 〈说明〉 | | | | | | | | | | | | |
| | 1、输出波形:方波 | | | | | | | | | | |
| | Output waveform:square wave | | | | | | | |
| | 2、当电压值愈高(Voltage Y 值),则输出波形愈高 | | | | | |
| | When the voltage value is higher (Voltage Y )then output waveform is higher. | |
| | 3、当风扇不转,则输出波形为一水平线 | | | | | | |
| | When the fan is shutdown then output waveform is a horizontal line. | | | | |
| | 4、循环距离愈长(Timer X 值),则转速愈慢 | | | | | |
| | The cyclic distance is longer then the RPM is Slower | | | | | |
| | 5、转速计算公式如下: | | | | | | | | | |
| | RPM formula as follows: | | | | | | | | |
| | | | RPM = | 2250 | | | | | | | | |
| | | | X(ns) | | | | | | | | |
| | 〈例〉Example | | | | | | | | | | |
| | X=15ns | | | | | | | | | | |
| | Ls=1000ns | | | | | | | | | | |
| | Lmin=22500ns | | | | | | | | | | |
| | | | RPM = | 2250 | =1500 | | | | | | |
| | | | 15 | | | | | | |
