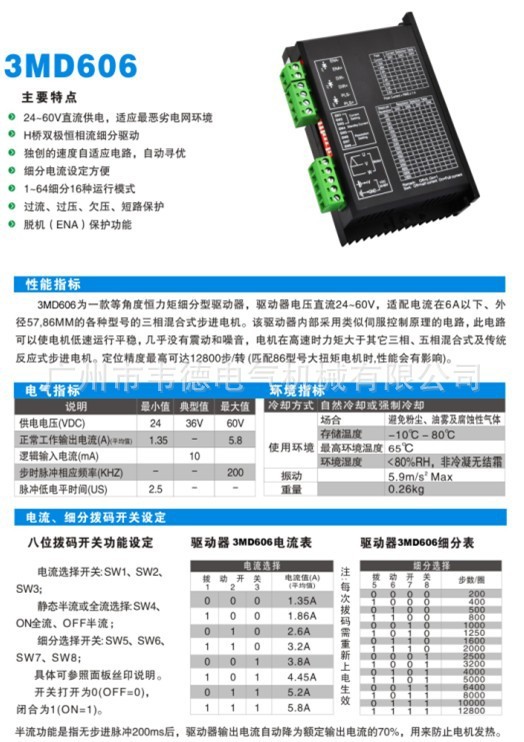

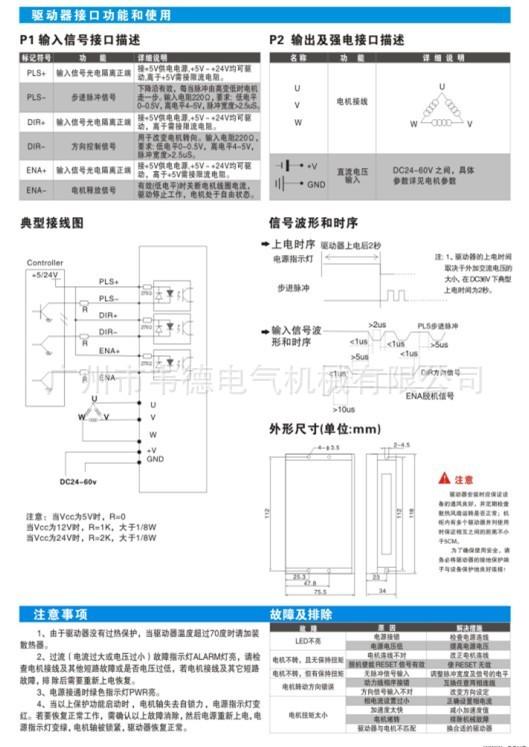

3MD606三相混合式步进驱动器 步进电机驱动器 三相混合式步进
韦德步进系统选型表
| 驱动器型号 | 额定输入电压 | 额定输出电流 |
| 2MD153 | DC12～30 V | 0.0～1.5 A |
| 2MD204 | DC20～40 V | 0.6～2.0 A |
| 2MD304 | DC12～40 V | 0.0～2.5 A |
| 2MD405 | DC24～50 V | 1.0～4.2 A |
| 2MD508 | DC20～80 V | 0.0～5.0 A |
| 2MD608 | AC50～80/DC70～110 | 1.5～6.0 A |
| 2MD6022 | AC80～220 | 1.3～6.0A |
| 3MD606 | DC24～60 | 1.3～6.0A |
| 3MD608 | DC18～80 | 1.4～6.0A |
| 3MD7022 | AC200～220 | 0.0～7.0A |
三相步进电机
| 3HB57-45 | 0.45N.m | 40.5mm |
| 3HB57-09 | 0.9N.m | 53.5mm |
| 3H57-15 | 1.5N.m | 76.4mm |
| 3HB57-02 | 2N.m | 102mm |
| 3HB86-02 | 2Nm | 69mm |
| 3HB86-04 | 4Nm | 97mm |
| 3HB86-06 | 6Nm | 125mm |
| 3HB86-04H | 4Nm | 97mm |
| 3HB86-06H | 6Nm | 135mm |
| 3HB110-08 | 8Nm | 135mm |
| 3HB110-12 | 12Nm | 161mm |
| 3HB110-16 | 16Nm | 185mm |
| 3HB110-20 | 20Nm | 220mm |
| 3HB130-24 | 24Nm | 188mm |
| 3HB130-28 | 28Nm | 220mm |
| 3HB130-35 | 35Nm | 252mm |
| 3HB130-50 | 50Nm | 274mm |
二相步进电机
| 2HB42-16 | 0.16Nm | 33 |
| 2HB42-26 | 0.26Nm | 38 |
| 2HB42-32 | 0.32Nm | 47 |
| 2HB57-39 | 0.39Nm | 41 |
| 2HB57-72 | 0.72Nm | 51 |
| 2HB57-09 | 0.9Nm | 56 |
| 2HB57-14 | 1.35Nm | 76 |
| 2HB57-12定制 | 1.2Nm | 64 |
| 2HB57-20定制 | 2.0Nm | 100 |
| 2HB86-33 | 3.3Nm | 65 |
| 2HB86-45 | 4.5Nm | 80 |
| 2HB86-49定制 | 4.9Nm | 98 |
| 2HB86-85 | 8.5Nm | 118 |
| 2HB86-06定制 | 6Nm | 126 |
| 2HB86-12 | 12Nm | 156 |
| 2HB110-08 | 8.5Nm | 99 |
| 2HB110-12 | 12Nm | 115 |
| 2HB110-21 | 21Nm | 150 |
| 2HB110-28 | 28Nm | 201 |
