MOUJEN茂仁 防油限位开关 行程开关 MJ-7102 原装 华南地区总代
产品简介
 功能 : |
 可配合各種不同之連桿及頭 |
| 具多種使用特性曲線 |
| 接線頭具帽式覆蓋螺絲 |
| 防塵、防油、防水 |
| 不鏽鋼主零件 |
| 規格及尺寸標準化 1/2” conduit entry. |
| 適用溫度 +15°F to +175°F (-10℃ to +80℃) |
| |
| 所有密封式限制開關都是雙迴路限制開關,1NO(常開)與1NC(常閉 )迴路,各迴路接點俱為兩段式絕緣。 |

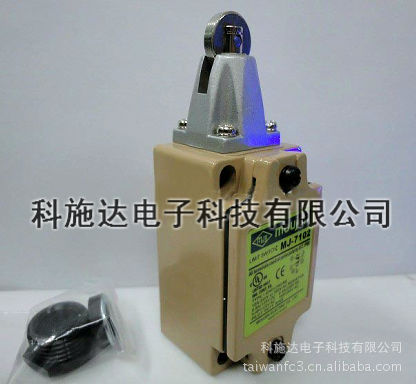

产品图片

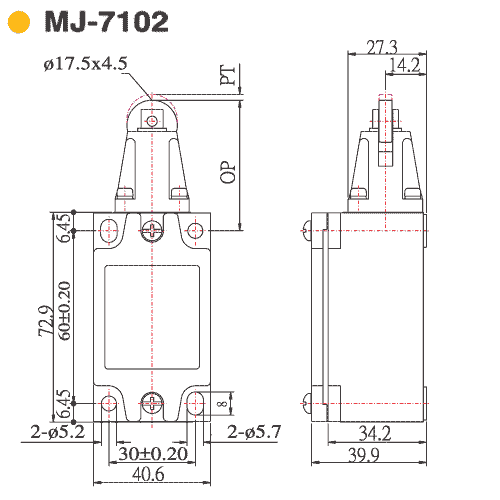

产品尺寸
产品参数
| 額定電壓 : |
| | | 10A | 125 or 300V AC(resistive) | 0.8A | 125 VDC(resistive) | 0.4A | 250V DC | 1/2HP | 125 V AC | 1HP | 250 V AC |
|
| | |
| 電氣迴路 : |
| | |
| 特性 : |
| | | Operating speed | 1mm to 2m/sec | Operating frequency | Mechanically: 120 operations/min.
Electrically: 30 operations/min. | Contact resistance | 15m max.(initial) | Insulation resistance | 100Mmin.(at 500 VDC) | Dielectric strength | 1,000 VAC, 50/60 Hz for 1 minute between non-continuous terminals
2,200 VAC, 50/60 Hz for 1 minute between each terminal and non-current-Carrying metal part and between each terminal ground. | Vibration | Malfunction durability:10 to 55Hz 1.5mm double amplitude | Shock | Mechanical durability:
Approx.1,000m/sec2(approx. 100G's)
Malfunction durability:Approx.300m/sec2(approx.30 G's) | Ambient operating temperature | Operating:-10 to +80 | Humidity | 95% RH max | Service life | Mechanically:
15,000,000 operations min
Electrically:(2.5A, 110VAC)MAX
500,000 operations min. | Degree of protection | IEC 529 class IP65
(Sealed essories requirement) |
|
| | |
