现货供应道路清扫车专用轴承
慈溪市永大轴承有限公司
慈溪市慈溪市周巷镇永大路1号（汽车站南300米）
产品属性
图文详情
品牌推荐
品牌/型号
ZPL
品牌
ZPL
清扫宽度
1（mm）m
本公司专业生产各类扫地车专用轴承，现货供应各类扫地车配件，更多规格祥询传真！
| Basic Load Ratings(Kgf) | Boundary Dimensions(mm) | Basic Load Ratings(kgf) | Limiting | Abutment and Fillet | Mass(kg) | |||||||||
| Speeds(rpm) | Dimension(mm) | |||||||||||||
| E series | EN Series | d | D | B,T | r | r1 | Dynamic | Static | Oil | Ds(min) | dh(max) | R(max) | ||
| C | C0 | Grease | ||||||||||||
| E4 | EN4 | 4 | 16 | 5 | 0.3 | 0.2 | 122 | 24 | 34000 | 40000 | 5.6 | 14.4 | 0.15 | 0.01 |
| E5 | EN5 | 5 | 16 | 5 | 0.3 | 0.2 | 122 | 24 | 34000 | 40000 | 6.6 | 14.4 | 0.15 | 0.01 |
| E6 | EN6 | 6 | 21 | 7 | 0.5 | 0.3 | 224 | 40 | 30000 | 36000 | 8.5 | 18.5 | 0.3 | 0.01 |
| E7 | EN7 | 7 | 22 | 7 | 0.5 | 0.3 | 254 | 40 | 28000 | 34000 | 9.5 | 19.5 | 0.3 | 0.01 |
| E8 | EN8 | 8 | 24 | 7 | 0.5 | 0.3 | 255 | 54 | 28000 | 34000 | 10.5 | 21.5 | 0.3 | 0.01 |
| 6028 | 8 | 24 | 8 | 0.5 | 0.3 | 255 | 54 | 28000 | 34000 | 10.5 | 21.5 | 0.3 | 0.01 | |
| E9 | EN9 | 9 | 28 | 8 | 0.5 | 0.3 | 335 | 73 | 24000 | 30000 | 11.5 | 25.5 | 0.3 | 0.02 |
| E10 | EN10 | 10 | 28 | 8 | 0.5 | 0.3 | 335 | 73 | 24000 | 30000 | 12.5 | 25.5 | 0.3 | 0.02 |
| E11 | EN11 | 11 | 32 | 7 | 0.5 | 0.3 | 270 | 75 | 22000 | 28000 | 13.5 | 29.5 | 0.3 | 0.03 |
| E12 | EN12 | 12 | 32 | 7 | 0.5 | 0.3 | 270 | 75 | 22000 | 28000 | 14.5 | 29.5 | 0.3 | 0.03 |
| E13 | EN13 | 13 | 30 | 7 | 0.5 | 0.3 | 270 | 75 | 22000 | 26000 | 15.5 | 27.5 | 0.3 | 0.02 |
| E14 | EN14 | 14 | 35 | 8 | 0.5 | 0.3 | 450 | 110 | 19000 | 24000 | 16.5 | 32.5 | 0.3 | 0.03 |
| E15 | EN15 | 15 | 35 | 8 | 0.5 | 0.3 | 355 | 102 | 19000 | 24000 | 17.5 | 32.5 | 0.3 | 0.03 |

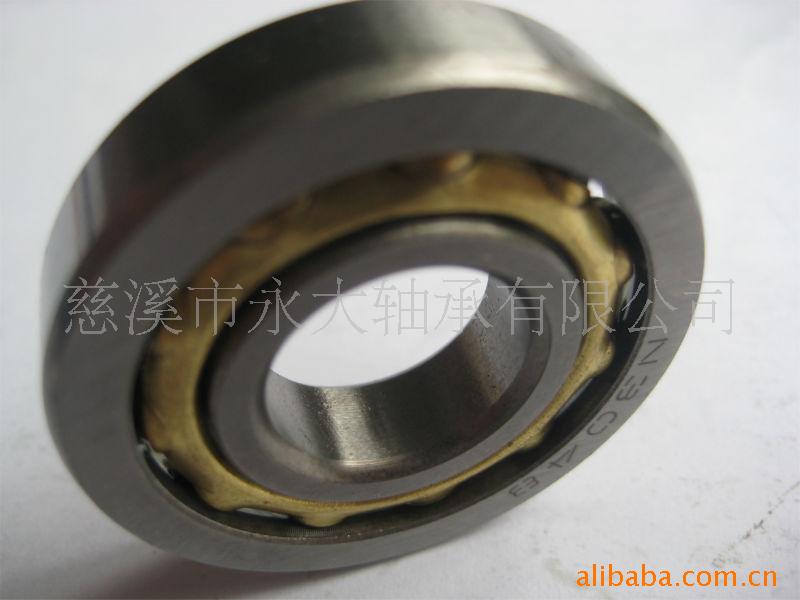

| N3048 | - | 15 | 37 | 8 | 0.5 | 0.3 | 355 | 102 | 19000 | 24000 | 17.5 | 32.5 | 0.3 | 0.03 |
| BO15 | - | 15 | 40 | 10 | 1 | 0.6 | 570 | 153 | 14000 | 18000 | 20 | 35 | 0.6 | 0.06 |
| E16 | EN16 | 16 | 38 | 10 | 0.7 | 0.4 | 705 | 127 | 16000 | 20000 | 19.5 | 34.5 | 0.4 | 0.05 |

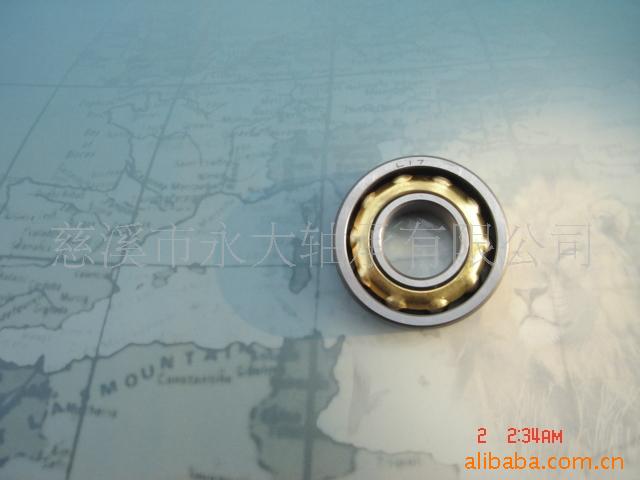

| L17 | - | 17 | 40 | 10 | 1 | 0.5 | 450 | 134 | 14000 | 18000 | 22 | 35 | 0.6 | 0.05 |
| E17 | EN17 | 17 | 44 | 11 | 1 | 0.6 | 440 | 134 | 14000 | 18000 | 22 | 39 | 0.6 | 0.08 |
| BO17 | - | 17 | 44 | 11 | 1 | 0.6 | 750 | 138 | 14000 | 18000 | 22 | 39 | 0.6 | 0.07 |
| M17 | - | 17 | 44 | 10 | 1 | 0.6 | 750 | 138 | 14000 | 18000 | 22 | 39 | 0.6 | 0.07 |
| E18 | EN18 | 18 | 40 | 9 | 0.7 | 0.4 | 270 | 95 | 16000 | 20000 | 21 | 36.5 | 0.4 | 0.05 |
| E19 | EN19 | 19 | 40 | 9 | 0.7 | 0.4 | 270 | 95 | 16000 | 20000 | 22 | 36.5 | 0.4 | 0.05 |

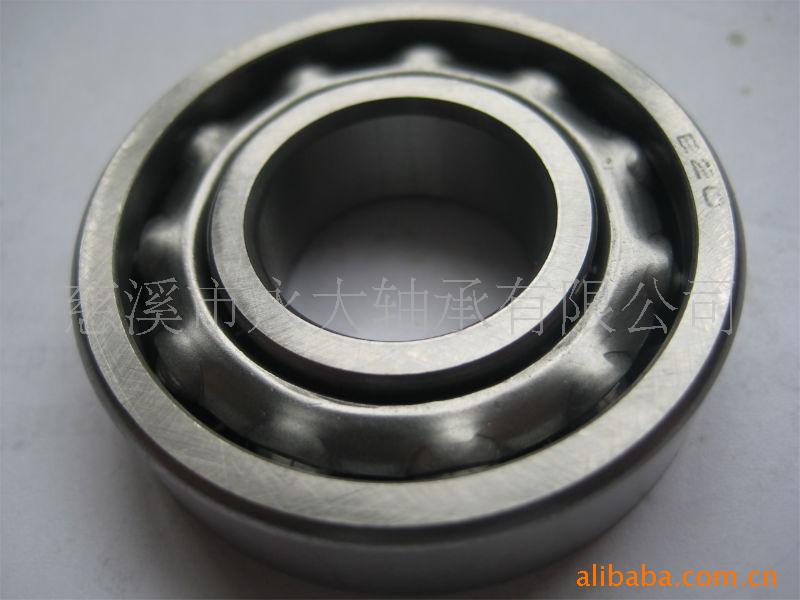

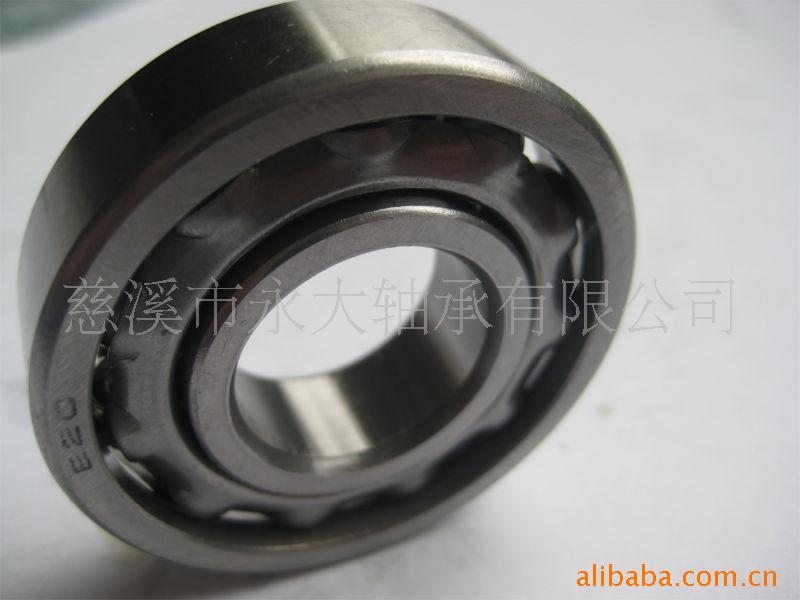

| E20 | EN20 | 20 | 47 | 12 | 1.5 | 1 | 580 | 224 | 14000 | 17000 | 26 | 41 | 1 | 0.09 |
| L20 | - | 20 | 47 | 14 | 1.5 | 0.7 | 580 | 224 | 14000 | 17000 | 26 | 41 | 0.7 | 0.1 |

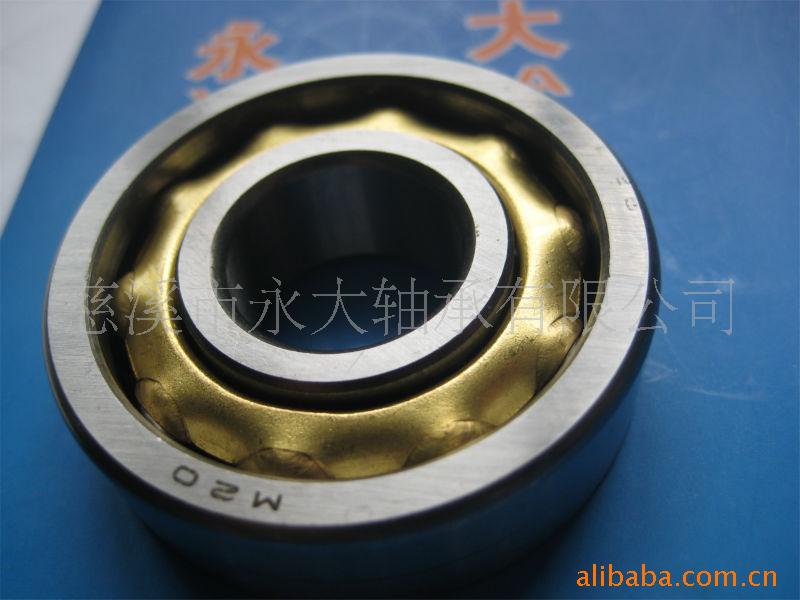

| M20 | - | 20 | 52 | 15 | 2 | 1 | 965 | 270 | 13000 | 16000 | 27 | 45 | 1 | 0.14 |
| L25 | - | 25 | 52 | 15 | 1.5 | 1 | 565 | 240 | 12000 | 15000 | 31 | 45 | 1 | 0.12 |
| M25 | - | 25 | 62 | 17 | 1.1 | 0.6 | 1250 | 375 | 11000 | 14000 | 31 | 55 | 0.6 | 0.22 |
| L30 | - | 30 | 62 | 16 | 1.5 | 1 | 630 | 228 | 8000 | 11000 | 40 | 55 | 1 | 0.25 |
| M30 | - | 30 | 72 | 19 | 2 | 1.5 | 630 | 228 | 8000 | 11000 | 40 | 65 | 1.5 | 0.4 |
