◎Used for various aluminum profile end processing, and suitable for various profiles.
◎Process multi-piece profiles in one clamp, high efficiency.
◎Convenient tool adjustment, can meet different processing requirement.
◎Can install vertical end miller ording to customer requirements.
◎Airdraulic damping cylinder adopted in feeding system, gives stable velocity.
◎It has features of easy operation, reliable performance, advanced technique and
convenient maintenance.
Technical Parameter：

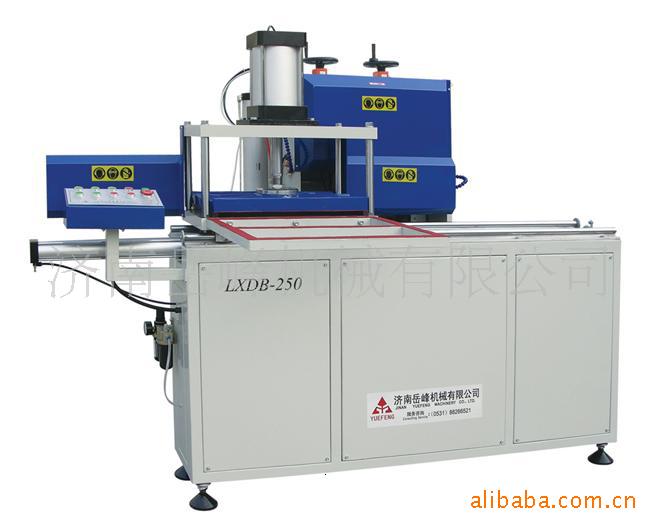

Model LXDB-250
Input voltage 380V 50Hz
Input power 3×2.2kw
Air pressure 0.5~0.8MPa
Air consumption 150L/min
Motor rotation speed 2800r/min
Worktable range 0~1050mm
Max processing hole 40mm
Milling cutter diameter φ250mm
Adjustment range 0~85mm
Overall dimension 2300×1200×1700m
◎该机用于各种门窗型材的端面加工。
◎可以同时完成多根型材的端面加工，提高生产效率。
◎刀具可上下前后调整，适用于不同型材的端面。
◎可以根据客户要求安装垂直端面铣刀。
◎进给系统采用气液阻尼，切削进给速度平稳。
◎操作简单、性能可靠、技术先进、易于维护保养。
【技术参数】
设备型号 LXDB-250
输入电源 380V 50Hz
输入功率 3×2.2kw
工作气压 0.5~0.8MPa
耗气量 150L/min
电机转速 2800r/min
工作台进给行程 0~1050mm
最大开榫 40mm
铣刀直径 φ250mm
调整行程 0~85mm
外形尺寸 2300×1200×1700mm
