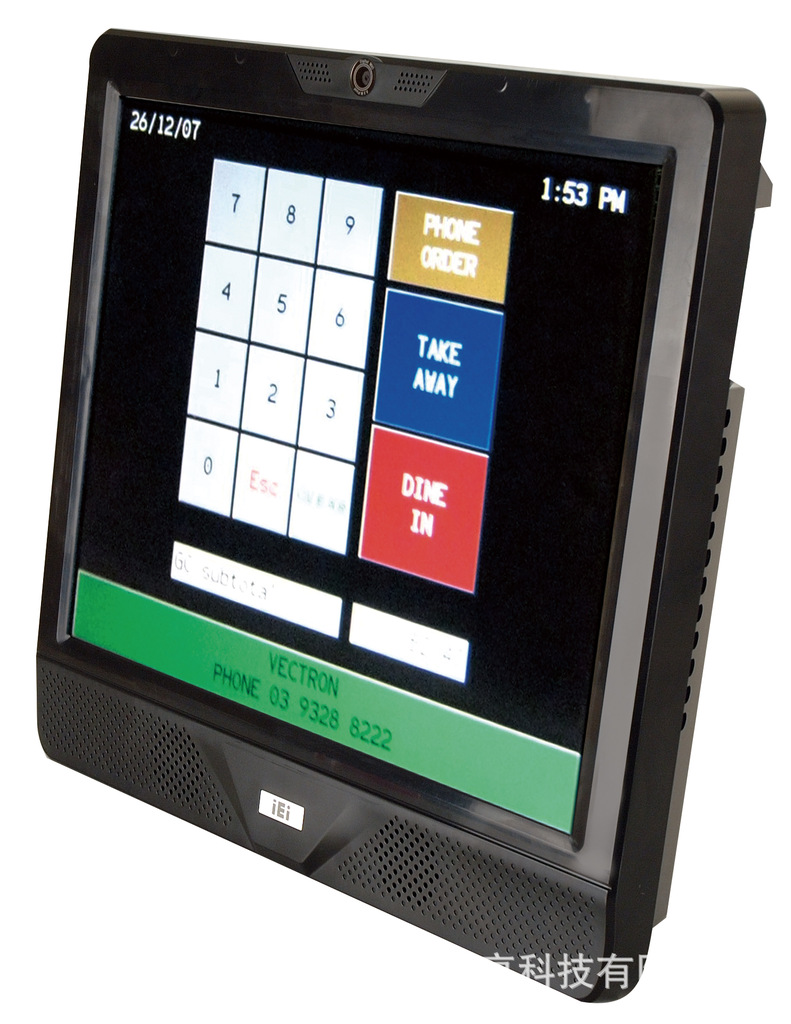

17 inch Core™2 Duo Industrial KIOSK Panel PC
产品亮点
17”all-in-one Panel PC powered by 1.8GHz Intel® Dual Core Desktop
Processor with 533/800/1066 MHz FSB and 512 KB cache
* Sophisticated high reflection surface
* All-in-one highly integrated design
Multiple functions and connectors built into one system. Fits a perse range of self service solutions, decreases maintenance time, and takes up less
space than other PC solutions
* Versatile mounting solutions backward IO design installs in minutes Quick installation in KIOSK or ATM devices
* IP 64 front panel compliance
* IEI One Key Recovery solution allows you to create rapid OS backup and recovery
特点详情
LCD Size | 17” |
Max Resolution | 1280 x 1024 |
Brightness (cd/㎡) | 300 |
Contrast Ratio | 800:1 |
LCD Color | 16.7M |
Pixel Pitch (mm) | 0.264(H) x 0.264(V) |
Viewing Angle (H-V) | 160º / 160º |
Backlight MTBF | 50,000 hrs |
SBC Model | AFLMB-9454 |
CPU | Intel® Dual Core Desktop Processor(E2160) 1.8GHz or others |
Chipset | Intel® 945G |
RAM | DDR2 1GB support up to 4GB |
I/OPortsand Switches | 1 x 12V/24V DC Input Jack |
SSD | CF Type II |
Watchdog Timer | Software Programmable supports 1~255 sec. System reset |
Audio | AMP 1.5W+AMP 1.5W (Built-in Stereo Speakers) |
Expansion | 1 x PCIe mini card |
HDDDrive Bay | 1 x 3.5” SATA HDD bay or 1 x 2.5” SATA HDD bay |
Construction Material | ABS + PC Plastic front frame |
Mounting | Panel, Wall, Stand and Arm (VESA 100mm x 100mm) |
Front Panel Color | Black or White |
Dimension (WxHxD) (mm) | 400 x 380 x 107 |
Operation Temperature | 0°C~45°C |
Storage Temperature (℃) | -20°C~80°C |
EMC | CE, , |
Net Weight | 13.4 kg |
IP Level(front panel) | IP 64 |
Safety | UL, CB |
Touch Screen | Resistive Type 5-Wire (touch controller IC is on board) or Capacitive type touch screen without CF slot |
Power Adapter | ACE-D825AH: 252W |
Power Consumption | 127 W |
ODDDrive Bay | 1 x slim type ODD bay |
订货信息
AFL-317AB-945-E2160/WT-R/1GB-R11 | 17" 300cd/m² SXGA panel PC w/ Dual-Core E2160 1.8GHz CPU,1GB DDR2 RAM, 802.11 b/g wireless module,touch screen, 300K pixel camera with microphone, bluetooth, black color, R11, RoHS |
AFL-317AW-945-E2160/WT-R/1GB-R11 | 17" 300cd/m² SXGA panel PC w/ Dual-Core E2160 1.8GHz CPU,1GB DDR2 RAM, 802.11 b/g wireless module,touch screen, 300K pixel camera with microphone, bluetooth, white color, R11, RoHS |
包装清单
1 * Power Cable | 1 * Utility CD |
1 * Screw Kit | 1 * Touch Pen |
1 * 252 W PSU |
|
