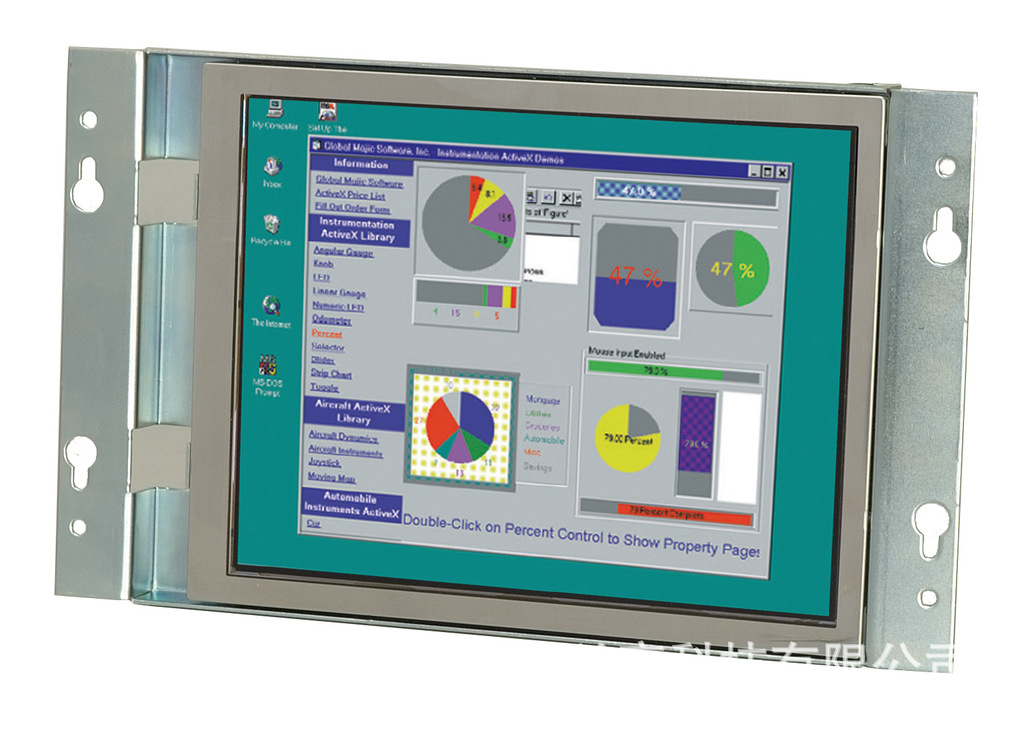

10.4" LCD Kit with OSD Function
产品亮点
1. Robust chassis and retention kit structure for shocking and vibration requirement
2. 400cd/m² high brightness and 50000hrs MTFB long lifetime panel
3. Analog VGA interface supports most of general system boards
特点详情
LCD Size | 10.4" TFT |
Input Interface | VGA |
Max Resolution | 800 X 600 |
Brightness (cd/㎡) | 400 |
Contrast Ratio | 500:1 |
Display Color | 262K |
Chassis | Heavy-duty steel |
View Angle (H/V) | 100/120 |
Backlight MTBF(Hrs) | 50000Hrs |
AD BOARD | AV-5350 |
OSD function | Yes |
Smart OSD | Yes |
Mounting | Panel |
Dimension(W x H x D mm) | 242.2 x 209 x 33.6 |
Operating Temperature | -10°C-50°C |
Power Adapter | 25W |
订货信息
LCD-KIT104GH-R20 | 10.4”400cd/m² High luminance SVGA TFT LCD kit, VGA input, R20, RoHS |
LCD-KIT104GHM-R20 | 10.4”400cd/m² High luminance SVGA TFT LCD kit, VGA input, 9~36V DC input, R20, RoHS |
