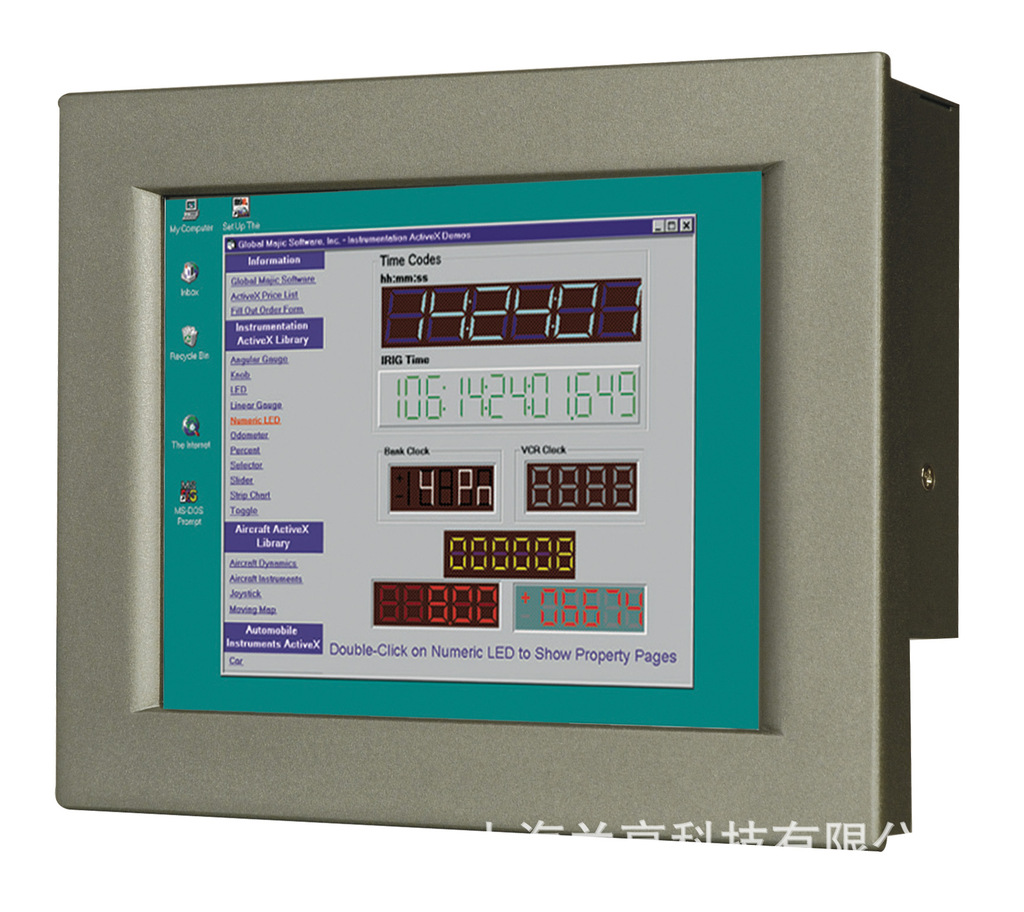

6.5" industrial monitor
产品亮点
1.Aluminum front panel meets IP65 standard for tough working environment
2. Optional RS-232 interface touch screen
3. Robust chassis and retention kit structure for shocking and vibration requirement
4. Over 300cd/m² high brightness and 50000hrs MTFB long lifetime panel
5. Analog VGA interface supports most of general system boards
6. M models support 9~36V DC power input for mobile application
特点详情
LCD Size | 6.5” |
Input Interface | Analog VGA |
Max Resolution | 640 x 480 |
Brightness (cd/㎡) | 800 |
Contrast Ratio | 600 : 1 |
Display Color | 262K |
Pixel Pitch (mm) | 0.207 |
Front Frame | Aluminum |
Chassis | Heavy-duty steel |
View Angle (H/V) | 160/140 |
Input Voltage | 12VDC |
OSD function | Yes |
Smart OSD | Yes |
Mounting | Wall/Arm/Din/Panel/Rack |
Color | Silver |
Dimension(W x H x D mm) | 183 x 143 x 41 |
Operating Temperature | -10°C~50°C |
Front Panel Protection | IP65 |
Net Weight | 1 kg |
Power Adapter | 36W, 63000-FSP036RAB610-RS |
订货信息
DM-65GHS/R-R20 | 6.5" 800cd/m² High luminance VGA LCD monitor with VGA, Aluminum front panel, Silver color, W/Touch screen,R20, RoHS |
包装清单
1 * AC Power Cable | 1 * VGA Cable |
1 * 1 x 36W AC power adapter | 1 * User Manual |
1 * Power Cable for Terminal Block | 1 * Touch screen RS-232 Cable / USB Cable / Driver CDROM |
1 * Touch pen (P/N:43125-0002C0-RS |
|
