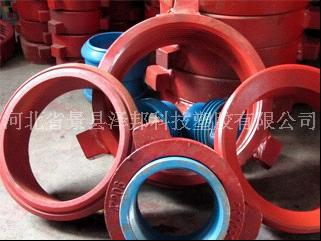

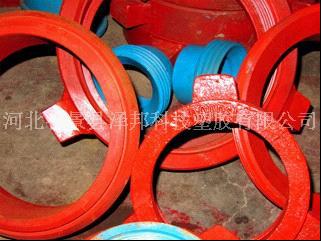

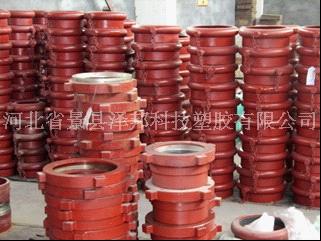

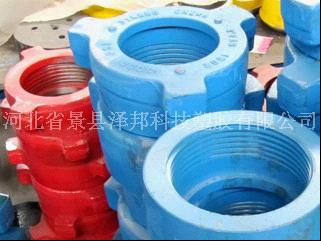

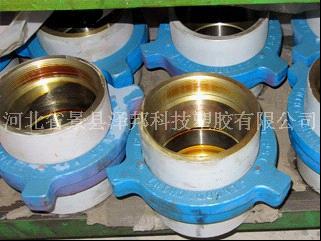

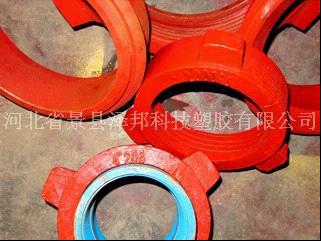

长期供应各种规格 高、中、低压由壬
1002型
标称管道尺寸 | 总长 | 锥口孔 | 螺母半径 | 材料 | 重量 |
螺母 | 零件 |
In | mm | in | mm | in | mm | in | mm | | | lbs | kgs |
1 | 25.4 | 31/2 | 88.9 | 1/4 | 6.4 | 21/4 | 57.2 | SF | SF | 3.5 | 1.6 |
2 | 50.8 | 53/16 | 131.8 | 1/4 | 6.4 | 311/16 | 93.7 | SF | SF | 13.25 | 5.9 |
3 | 76.2 | 63/8 | 161.9 | 3/8 | 9.5 | 43/8 | 117.5 | SF | SF | 21.0 | 9.5 |
4 | 101.6 | 81/16 | 204.8 | 3/8 | 9.5 | 51/4 | 133.4 | SF | SF | 39.5 | 17.9 |
5 | 127 | 64/5 | 172.7 | | | 6 | 152.4 | SF | SF | 61.67 | 28 |
6 | 152.4 | 71/16 | 179.4 | | | 71/4 | 184.2 | SF | SF | 70.48 | 32 |
1502型
标称管道尺寸 | 总长 | 锥口孔 | 螺母半径 | 材料 | 重量 |
螺母 | 零件 |
In | mm | in | mm | in | mm | in | mm | | | lbs | kgs |
1 | 38.1 | 513/32 | 137.0 | 1/4 | 6.4 | 321/32 | 93.0 | SF | SF | 12.0 | 5.4 |
2 | 50.8 | 7 | 177.0 | 15/64 | 6.0 | 33/4 | 95.3 | SF | SF | 21.0 | 6.5 |
3 | 76.2 | 75/8 | 193.7 | 3/8 | 9.5 | 41/2 | 114.3 | SF | SF | 31.0 | 14.1 |
