英国TTi 射频微波功率计 ST185SMA
10MHz-18.5GHz

POWER METERS - RF and Microwave - TTi Satori
Satori ST series USB linked Power Meters - 12.4GHz, 18.5GHz or 26.5GHz
Satori ST Series
l USB linked power meters
l 12.4GHz, 18.5GHz or 26.5GHz
l –50 dBm to +20 dBm range
l Very low power consumption

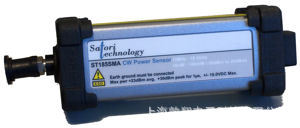

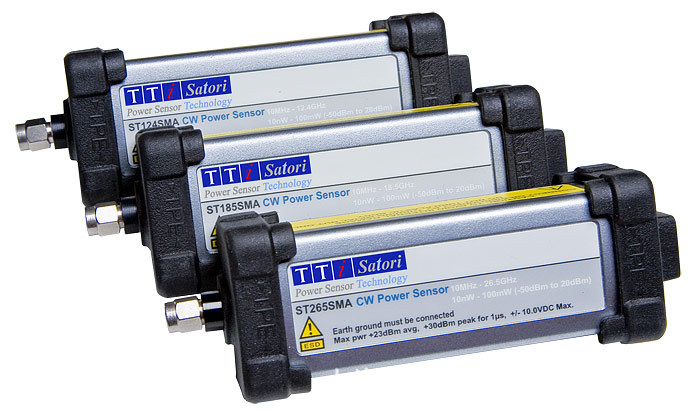

ST124SMA, ST185SMA and ST265SMA
The TTi-Satori ST series power sensors are complete miniature RF & Microwave power meters.
They contains a CPU which controls the sensor, processes the measurement results and operates the interface.
All measurement data and settings are transmitted via a USB interface to and from a PC. The supplied virtual power meter software for Windows creates a classic microwave power meter.

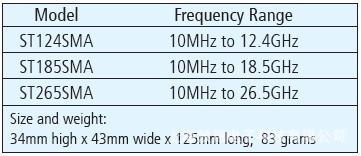

l Three models 12.4GHz, 18.5GHz or 26.5GHz
l Measurement down to 10MHz
l Measurement range from -50 dBm to +20 dBm
l Replacement solution for conventional power meter and sensor combination
l Simple USB connection to laptop or PC
l Use multiple sensors on one laptop or PC
l No reference calibrator required
l Lightweight and easy to use
l Robust construction with excellent reliability
l Convenient for production test and field service

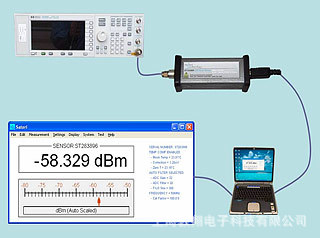

The power meter is controlled by the TTi- Satori software loaded on a Windows PC. This is a virtual power meter with basic measurement functions for the PC workstation.
A software toolkit is supplied to control the power sensors via the PC. It includes a DLL (dynamic link library) for inpidualized use of the entire sensor functionality with Windows and the user interface.


TTi 微波功率计
l TTi-Satori ST 系列是功能完整的微型射频和微波功率计。
l 该系列包含控制传感器的 CPU,可以处理测量结果以及操作接口。
l 所有测量数据和设置都将通过 USB 接口传输至 PC,或从 PC 输出。
l 用于 Windows(随附)的虚拟功率计软件可创建典型的微波功率计。
l 替换解决方案,适用于传统的功率计和传感器组合
l USB 简单地连接至膝上型电脑或 PC(连接 USB 2.0,电缆长度达 5m)
l USB 电源电流大约为 50mA
l 可让多个感应头连接到一台膝上型电脑或 PC,并同时工作
l 传感器电缆长度为(标准)193cm
l 不需要参考校准器
l 轻便(83 g),易于使用
l 结构坚固,异常可靠
l 便于进行生产测试和现场维修
l 尺寸(最大)34H x 43W x 125L mm
