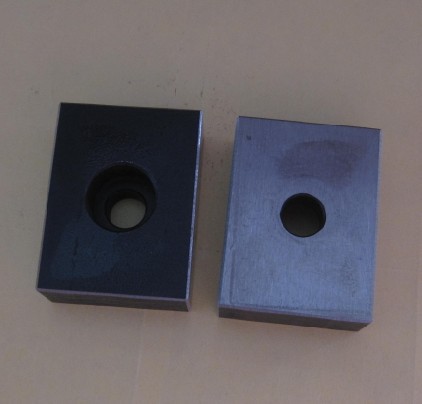

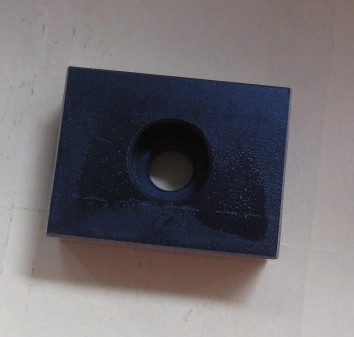

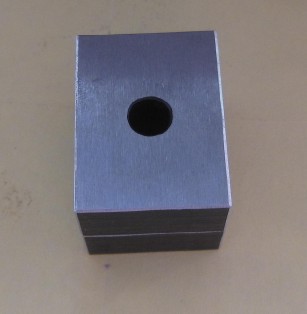

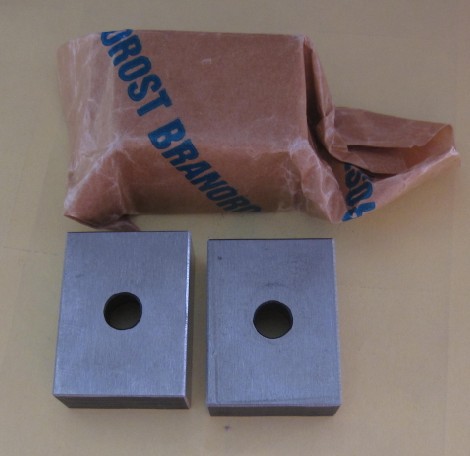

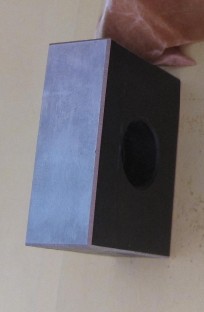

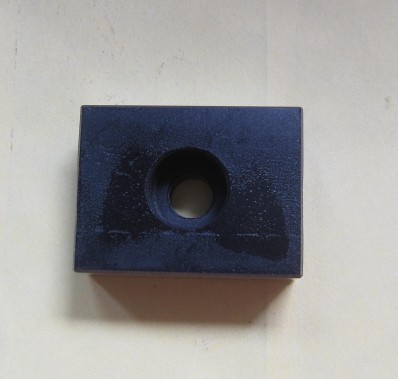

供应HALDER原装低槽榫头Low Slot tenonsEH23130.0024

材质：钢材，表面硬化，染黑，研磨

应用：被用于定位夹具和与DIN650

使用实例：

Material:
l Steel, case-hardened, blackened, ground
Note:

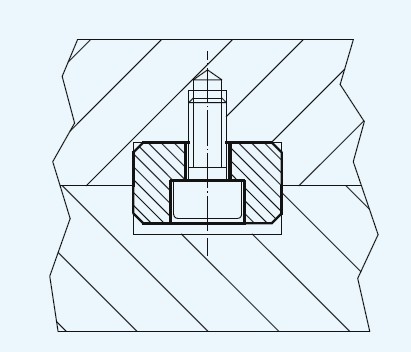

Used for locating fixtures and clamping elements onto machine tables with T-slots to DIN 650. They are bolted into the
alignment slots of the fixture. Low slot tenons are suitable for use where a fixture will only be used on machines having an
identical slot width.

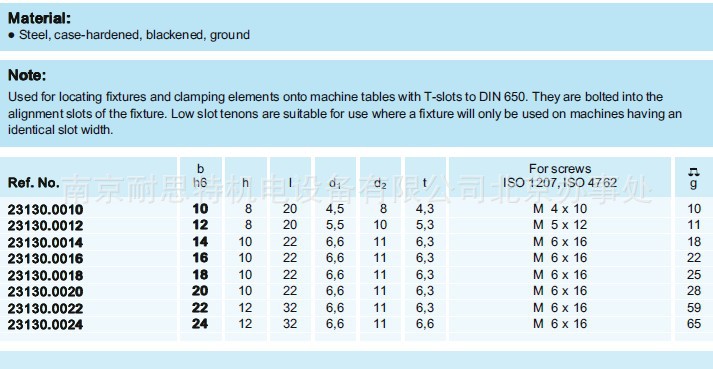

Ref. No.
b
h6 h l d1 d2 t
For screws
ISO 1207, ISO 4762 g
23130.0010 10 8 20 4,5 8 4,3 M 4 x 10 10
23130.0012 12 8 20 5,5 10 5,3 M 5 x 12 11
23130.0014 14 10 22 6,6 11 6,3 M 6 x 16 18
23130.0016 16 10 22 6,6 11 6,3 M 6 x 16 22
23130.0018 18 10 22 6,6 11 6,3 M 6 x 16 25
23130.0020 20 10 22 6,6 11 6,3 M 6 x 16 28
23130.0022 22 12 32 6,6 11 6,3 M 6 x 16 59
23130.0024 24 12 32 6,6 11 6,6 M 6 x 16 65
