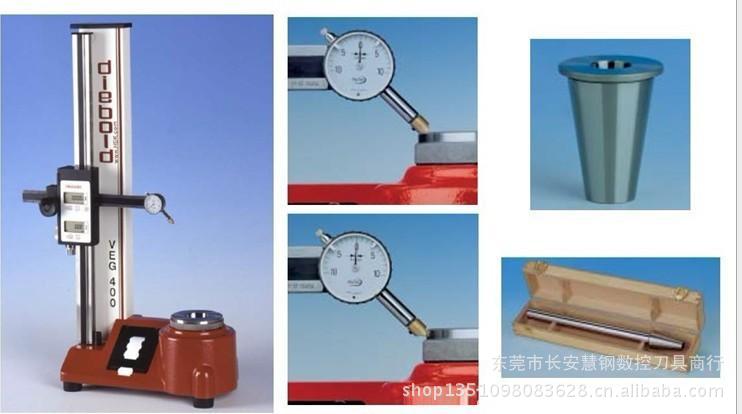

德国diebold戴博--对刀仪
L x T x H: 350 x 175 x 730 mm
Length: 410 mm, Ø 240 mm
Weight: 22 kg
Colour:: red RAL 3003
Spindle Runout: < 0,005 mm (0,0002“)
Presetter Accuracy: <0,02 mm (0,0008“)
对刀仪编号 适用刀柄类型
76.501.040 SK 40, ISO 40, CAT 40, SA 40, MAS-BT 40
76.501.050 SK 50, ISO 50, CAT 50, SA 50, MAS-BT 50
基准棒编号 适用刀柄类型
76.510.130 SK 40 x SK 30 SK, CAT, SA, BT 30
76.510.216 SK 40 x zyl. Ø 16 VDI Ø 16
76.510.220 SK 40 x zyl. Ø 20 VDI Ø 20
76.510.230 SK 40 x zyl. Ø 30 VDI Ø 30
76.510.325 SK 40 x HSK 25 HSK 25
76.510.332 SK 40 x HSK 32 HSk 32
76.510.340 SK 40 x HSK 40 HSk 40
76.510.350 SK 40 x HSK 50 HSk 50
76.515.130 SK 50 x SK 30 SK, CAT, SA, BT 30
76.515.140 SK 50 x SK 40 SK, CAT, SA, BT 40
76.515.145 SK 50 x SK 45 SK, CAT, SA, BT 45
76.515.225 SK 50 x zyl. Ø 25 VDT Ø25
76.515.230 SK 50 x zyl. Ø 30 VDT Ø30
76.515.240 SK 50 x zyl. Ø 40 VDT Ø40
76.515.250 SK 50 x zyl. Ø 50 VDT Ø50
76.515.325 SK 50 x HSK 25 HSK 25
76.515.332 SK 50 x HSK 32 HSK 32
76.515.340 SK 50 x HSK 40 HSK 40
76.515.350 SK 50 x HSK 50 HSK 50
76.515.363 SK 50 x HSK 63 HSK 63
