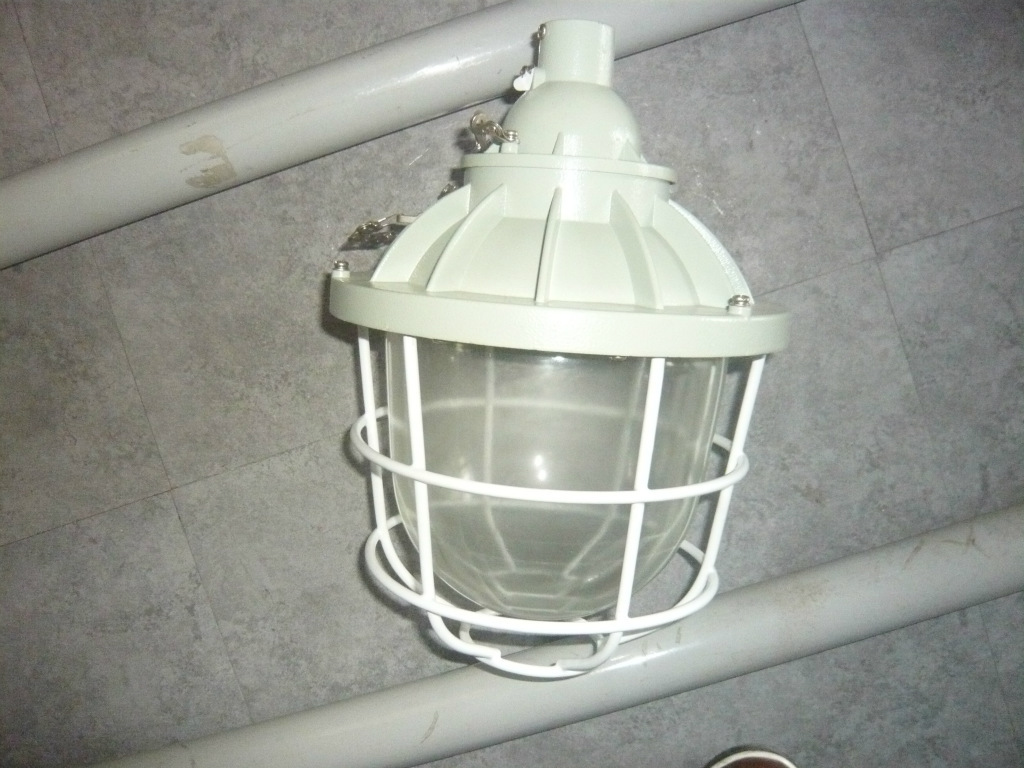

产品名称: CBD61系列隔爆型防爆灯（ⅡB、ⅡC）
感谢您选购我公司产品，欢迎来电来函(588)
CBD61-G80 CBD61-G125 CBD61-N110
CBD61-L70 CBD61-L100
适用范围 1区、2区危险场所。ⅡA、ⅡB、IIC类爆炸性气体环境。 可配装白炽灯、汞灯、高压钠灯、金卤灯。
Application
Can be used in Zone 1 and Zone 2 dangerous places.Can be used in IIA、IIB、group explosive atmosphere.
Suitable for incandescent lamp,mercury vapor lamp, high-pressure sodium vapor lamp,metal halide lamp.
型号含义 Model implication
产品特点 Features
铸铝合金外壳，表面喷塑
压铸成型，结构紧凑，外形美观。
灯体和出线套采用无线连接,便于用户安装和维修.
镇流器采用特制的环形镇流器,耐热等级高,镇流器装于灯体中,触发器采用外置式,灯具能够长寿命无故障运行.
由于 取消专配的镇流器箱,使灯具更加经经济.
钢管布线。
符合GB3836-2000.IEC60079标准要求.
Diecasted aluminium alloy shell with
Pressure-casted frmation,compact structure and aesthetic appearance.
The lampbldy and outlet sleeve use wireless wie connecting,it's convenient
for the users to install and maintatnce.
The ballast uses special annulat ballast,higt heat-resitance,the inner ballest is installed in the lampbody,the rtigger use out-lay type which guarantees
the lamp has long life and no fault call off the special ballast box,which
makes the lamp more economic.
Suitable for steelpipe.
Suitable for GB3836-2000,IEC60079 standard request.
主要技术参数
防爆标志:Exd Ⅱ BT4(CT4)
防护等级:IP65
电缆外径(￠,mm):10～14
进线口螺纹(G"):3/4
灯座代号:E27
质量(kg):6.2
Ex-mark Protection Cable's outside Inlet's thread Lamp socket Mass grade diameter
--------------------------------------------------------------------------------
配用光源
Supplied with lamps
光源类型 高压汞灯 高压钠灯 金卤灯
Lamp type
Mercurypor lamp
Hi-Presssure
Metal halide lamp
sodium lamp
--------------------------------------------------------------------------------
额定电压(V)Rated voltage 220V/50Hz
--------------------------------------------------------------------------------
额定功率 Rated power
80W 、125W .110W . 70W 、100W
外形及安装举例 Outline and mounting example
吸顶式(x) Ceinling
吊杆式(g) Pendant
壁式安装30度(b1) Bracket30C
护栏式(h) Fence
法兰式(f) Flange
壁式安装90度(b2) Bracket90C
1:灯具 Lamp
2:活接头Active 3:CC型索具螺旋扣 4:链条Chain
5:膨胀螺钉
6:接线盒
7:30度弯管Bend Pipe
8:直管Pipe
9:90度弯管Bend pipe
10:通头Through head
11: 立杆 Rod 1'/4"
12:出线套(吸顶式)
注：所有灯具出厂时均不配光源，接线盒，镇流器，触发器和安装附件，如果需要请注明．参照相应规格另行加价.
CBD61-G80 CBD61-G125 CBD61-N110
CBD61-L70 CBD61-L100
