型号：IPPC-9151
品牌：研华

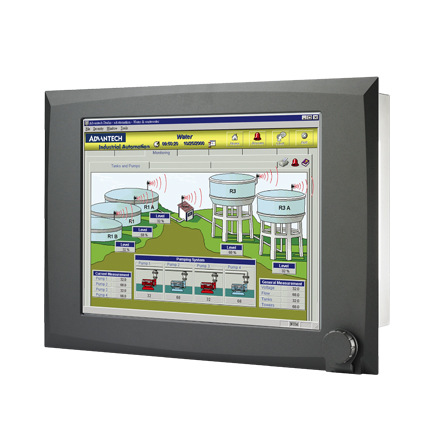

名称：15" LCD坚固型Intel Pentium 4 工业平板电脑
特点:
- Intel® Pentium4个处理器，最高支持2.8GHz
- 提供2个PCI扩展槽
- 前端连接USB街口

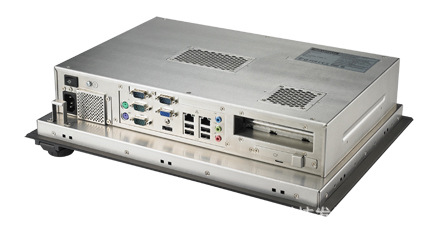

- 带铝合金前面板的高强度不锈钢机箱
- 前面坂带强化玻璃，能有效防止LCD被损坏，符合NEMA4/IP65标准
- 内置软驱，支持1个CD-ROM和1个3.5硬盘
- 硬质阳极镀层,有效防止磨损和酸腐蚀
- 支持工业安装机架和面板安装
IPPC-9151G是一款功能齐全的工业级平板电脑，它支持各种级别的CPU（Pentium®4 处理器最高到2.8GHz），分辨率高达1024 x 768，满足当今高端工业软件的需求。IPPC-9151G带有铝合金前面板、强化玻璃、15〞TFT LCD、不锈钢机箱和两个扩展槽。IPPC-9151G具有的这些特点使它能够在各种恶劣的工作环境中使用。它还带有从悬臂安装、面板安装到机架安装的可选安装附件，用户可以根据自己的需要将其安装在任何地方。IPPC-9151 具有平板密封的前面板，方便清洁和液体流失，适用于强硬卫生要求的食品及饮料制造业。
主要参数：
IPPC-9151G-R1AE
| Environment | Humidity | 5 ~ 85% @ 40°C (non-condensing) |
| Ingress Protection | Front panel: NEMA4/IP65 |
| Operating Temperature | 0 ~ 50° C (32 ~ 122° F) |
| Storage Temperature | -20 ~ 60° C (-4 ~ 140° F) |
| Vibration Protection | 5 ~ 500 Hz, 1 GRMS random vibration |
| General | BIOS | AMI EFI 64 Mbit SPI |
| Certifications | BSMI, CCC, CE, FCC, UL |
| Cooling System | 2 x 10.1 CFM fans w/50,000 hrs MTBF |
| Dimensions (W x H x D) | 428 x 310 x 96.5 mm (16.35" x 12.2" x 3.79") |
| Disk Drive Bay | Supports 1 x 2.5" SATA II or SATA III HDD |
| Enclosure | Stainless steel back case, 10 mm aluminum front panel |
| Mounting | Panel, rack |
| Power Input | 100~240 VAC @ 4A 50~60hz |
| Power Supply | 180 W, MTBF: 100,000 hrs |
| Weight (Gross) | 10.52 Kg (23.19 lbs) |
| LCD Display | Backlight Life (hrs) | 50,000 |
| Contrast Ratio | 700 : 1 |
| Luminance (cd/m2) | 350 |
| Max. Colors | 16.2M or 256K Color |
| Max. Resolution | 1024 x 768 |
| Size | 15" |
| Type | XGA TFT LCD with LED Backlight |
| Viewing Angle (H/V°) | 160/140 |
| System Hardware | Audio Ports | Mic-in,Line-out,Line-in |
| Chipset | Intel 6 series chipset(QM67) |
| Expansion Slots | Supports 1 x PCIe x1 or x4 |
| I/Os | 1 x VGA, 1 x HDMI, 5 x USB 2.0( one at front), 4 xRS-232 |
| LAN | 2 x10/100/1000Mbps |
| Memory | 2 x 204 pin DDR3 1066/1333 SODIMM sockets, supports up to 8GB(2x 4GB), 1 x CFast slot |
| PS/2 | 1 x keyboard and 1 x mouse |
| Touchscreen | Lifespan | 36 million with a silicone rubber of R8 finger, writing rate is by 250g at 2 times/s |
| Light Transmission | > 80% |
| Type | Analog resistive (5-wire) |
