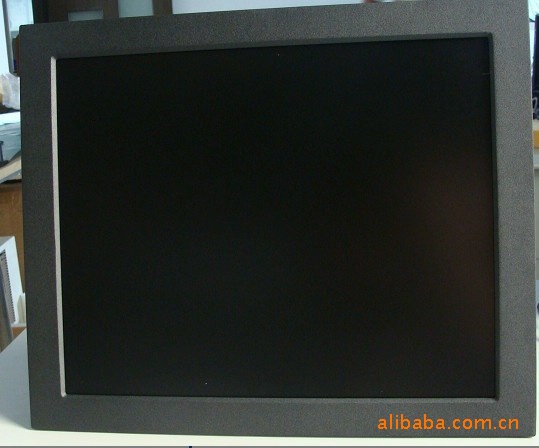

一.规格描述：

1. LCD显示器                     15”TFT active matrix panel

2.像素尺寸                        0.297(H)*0.297(V)mm

3.最大分辨率                      XGA 1024*768

4.对比度                          450:1(typical)

5.亮度                            250 cd/m2(typical)

6.响应时间(Tr+Tm)                 16ms(typical)

7.显示色数                        16M colors

8.扫描频率                        水平31-60KHZ,垂直60-75HZ

9.输入信号                        模拟DB15PIN(VGA)

                                   RCA视频输入(可选)

                                   S-VIDEO视频输入（可选）

10.可视角度(CR>=10)               120(H)*100(V)

11.背光                           CCFL*2

12.灯管寿命                       50000(HR)

二.硬件规格

1.电源                              输入12V/4A

2. OSD操作                        显示器正面

3.显示尺寸                          304.1(H)*228.1(V)mm

4.外围尺寸                         418(H)*306(V)mm

5.触摸屏(可选)                       电阻式-USB/RS232
