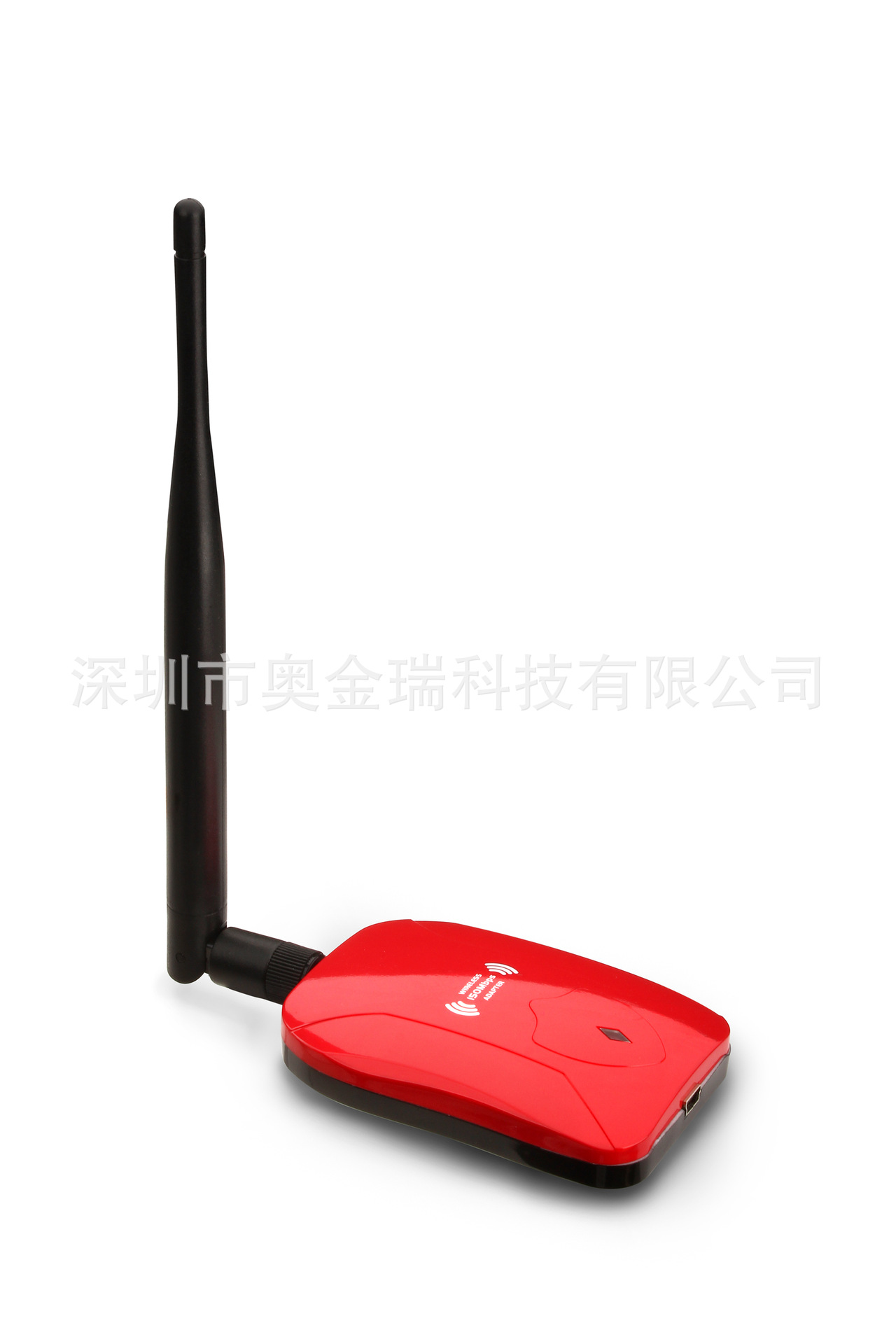

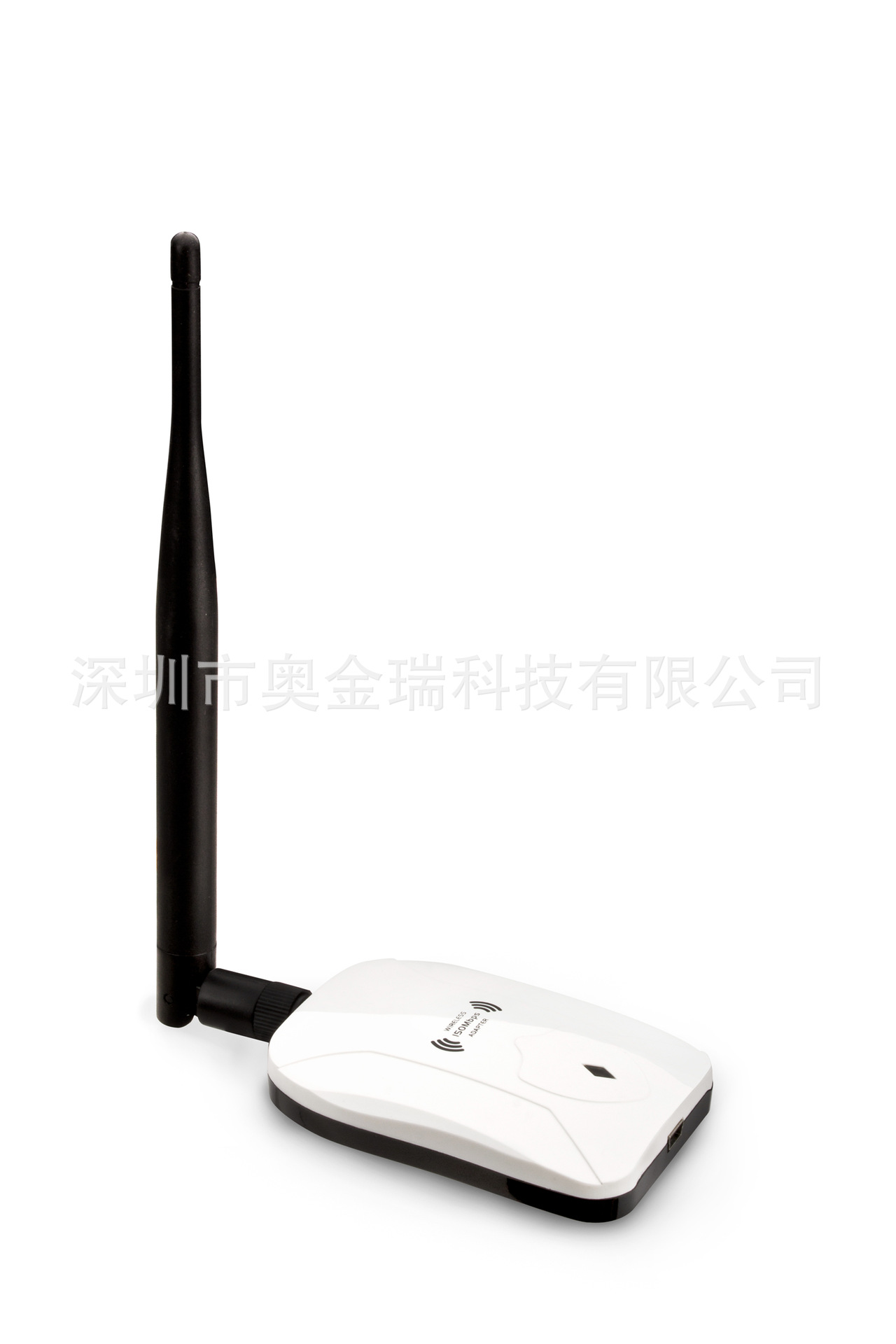

GWF-PA04
5dBi天线+ 延长USB线设计--更小的人体的辐射伤害, 却远至700m的通讯距离
802.11b:1,2,5.5,11Mbps;
802.11g;6,9,12,18,24,36,48,54Mbps;
802.11n:(20MHz)MCSO-7,高达 72Mbps , (40MHz)MCSO-7,高达 150Mbps
调制模式：OFDM
最大功率： 28dBm @ 802.11b
峰值速率： 150Mbps
峰值吞吐率：90Mbps
智能电源管理功能
安全模式：802.11 b/g/n,WPA,WPA2,WMM,WMM-PS，WHQL,Cisco CCX
| Hardware |
| Chipset | Ralink RT3070 |
| Host interface | Mini USB+1.2, type A extended cable
|
| LEDS | link/ Activity |
| RF |
| Antenna | Built-in PCB antenna |
| Frequency | 2412~2472MHz, ISM band. |
| Transmit Power | 802.11b:28+/-1.5dBm; 802.11g:25+/-1.5dBm; |
| (With antenna) | 802.11n:(HT20),24+/-1.5dBm,802.11n:(HT40),24+/-1.5dBm. |
| Receive Sensitivity | 802.11b:-93dBm@11Mbps; 802.11g:-88+/-1dBm@54Mbps |
| (With antenna) | 802.11n:(HT20),-84dBm@M8C7,802.11n:(HT40),-80dBm@MSC7.
|
| Software |
| Operation System | Windows CE/2000/XP/Vista; Linux 2.6.X;Mac OS X |
| Security | WEP 64/128bit,WPA,WPA2,802.1X ,and802.11i |
| Operation Conditions |
| Voltage Range* | DC 5.0V±5%,<330mA |
| Operating Temperature | 0℃-40℃ |
| Storage Temperature | -20℃-70℃ |
| Operating Humidity | RH 95%(Non-Condensing) |
| Storage Humidity | RH 95%(Non-Condensing) |
