【东莞畅利莱机械手横走式单臂机械手全自动化机械手注塑机械手】价格_厂家

品牌/型号

畅利莱/AD 系列

产品别名

AD 系列单臂大型横走式机械手

产品用途

注塑机冲压取出自动化设备

型号

AD 系列

规格

可订做

类别

机械手

品牌

畅利莱

AD Series Pneumatic/Inverter Driven Beam Robots

AD 系列中型横走式机械手(单边型|单臂式）

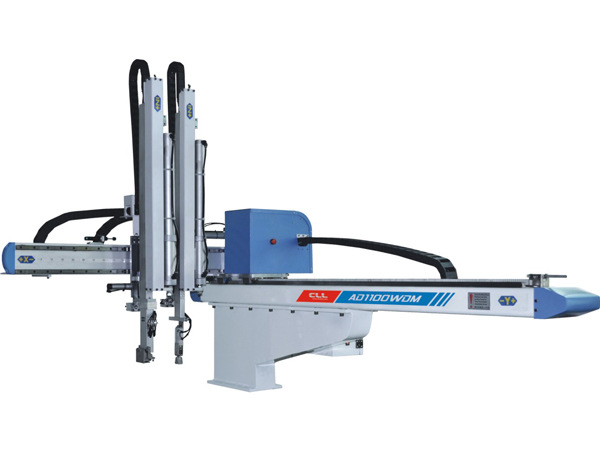

横走中型

主要特点

AD系列中型横走型机械手臂主要适用于150-650吨的各型卧式射出成型机的成品及水口出。手臂型式有单截式及双截式；可增加副臂用于三片模，同时夹成品与料头；上下行程从550-1200mm为气缸驱动。横行轴标准为变频马达驱动，可选购AC伺服马达驱动。上下、引拔为气缸驱动，节省成本。成品臂上下轴可依需要选购AC伺服马达驱动，增加模内的取出效率。安装AD系列机械手，可增加产能(20-30%)、降低产品的不良率、保障操作人员的安全性、减少人工、精准的控制生产量、减少浪费。

AD Series Medium Beam Robot Arm
all types of horizontal injection machine of 150-650T for take-out products and sprues. It has single stage and telescopic type; It can be added a sub-arm for 3-plates mold to grip products and sprue at the same time. Vertical stroke: 550-1200mm, driven by pneumatic cylinder. For standard model, the traverse axle driven by inverter motor, AC servo motor is optional. Vertical and crosswise driven by pneumatic cylinder, cost-effective. According actual requirements, you can choose AC servo motor driven on product arm to increase efficiency. After installed AD series robot, the productivity will be increased 20~30%, reduce defective rate, ensure safety of operators, reduce manpower and accurately control the output to reduce waste.

■横行标准采用进口变频马达驱动, 运行平稳而经济.可选购AC伺服马达驱动,运行速度快而精准,定位精度达±0.1MM;

■横行、上下、引拔臂采用高刚性精密直线线性滑轨,耐磨耗,低噪音.平稳寿命长;

■双截式上下手臂采用质量轻、高刚性的铝合金结构梁,配合进口的高刚性精密直线线性滑轨导向运行,其特殊的皮带倍速结构设计, 只需一半的行程即可达到全行程,大幅度缩短上下手臂的结构高度,提高上下行的速度及稳定性,并可配合厂房高度低的场所；

■自动检测报警安全保护,如气压不足或突发故障会自动报警,并自动弹出防落气缸,保证机械手臂和模具的安全;

■上下及引拔行程调节和位置调整标准采用手动调位方式,可选购电动调位方式,节省调整时间,增加操作的安全性；

■成品臂上下轴如选购AC伺服马达驱动，可提高上下动作速度，节省模内时间，增加效率，并可在模外设置不同的置物高度，定位精度达±0.2MM；

■可选购CE机型,符合EUROMAP/SPI的标准及配置标准接口。

■Transverse standard is using the inverter motor driving, running stable and economy. optional for AC servo motor drive, can be running more faster and more precise, more positioning accuracy which up to ±0.1MM;

■Horizontal rows, up or down, drawing arm with high rigidity and precision linear
Rails, stable and low noise, stable and long life;

■Double-cut-up and down the arm with light weight, high rigidity aluminum structure beam, with imported of high rigid precision linear Rails-oriented operation, its special structure design of the belt speed, just half of the stroke to be reached full itinerary, shorten the height of upper and lower arm of the structure, improve speed and stability, and can be combined with low height of plant .

■Auto-detection of security, such as the pressure is insufficient or unexpected failure will automatically alarm and automatic ejection prevention into cylinder, guarantee the mechanical arm and mold safety;

■Up and down and drawing stroke adjustment and position adjustment standard with manual mode, you can buy electric adjustment mode, time savings, increased operational security.

■Finished up and down axis with AC servo motor driver, can be raised up and down movement speed, saving time, shorten time of products taken off from mold inside , can be setting a different height for different product , it’s positioning accuracy up to ±0.2MM.

■Optional CE models that conform to the standard EUROMAP/SPI and configure standard interfaces.

General Specification

一般规格
