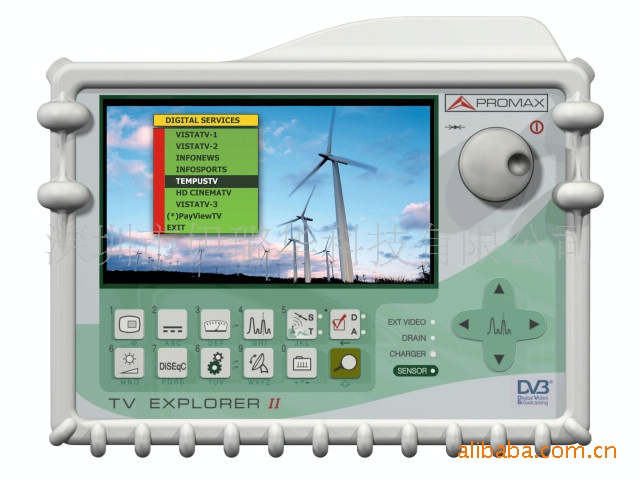

TV EXPLORERII
The TV EXPLORER range has changed forever the concept of the field strength meter. From now on, meters will be smaller, lighter weight and much more easy to use than in the past. Just press one key and the instrument measures and decodes the signal under test.
The newTV EXPLORERIIcontinues with this philosophy and hits again with innovating features. At a first glance the instrument unveils an impressive 6,5" screen with 16:9 panoramic format and transflective technology.
However,TV EXPLORERIIintroduces many new features. It allows measuring of High Definition satelliteDVB-S2signals andDVB-Hformobile TVbroadcasting. It covers Cable TV return path. It can display theconstellationdiagram for DVB-T/H/C/S/S2. Allows automatic measurements through the DATALOGGER function with a massive 128 MB internal memory.
| 覆盖范围 | 地面, 卫星, 有线 和移动电视 |
| 功能 | 频谱分析仪 / 测量 / 信号解码 |
测量
模拟
数字
COFDM 2k / 4k / 8k
QPSK
8PSK
QAM 16/32/64/128/256 | 同时显示所有测量值
Level, Video/Audio, C/N
Power, C/N, Channel identification
MER, CBER, VBER, Noise margin
MER, CBER, VBER, Noise margin
MER, CBER, LBER
BER, MER |
| TUNING | By channel or frequency (IF or direct in satellite) |
| EXPLORER FUNCTION | 搜索频道和生成频道表 |
| AUTO ID FUNCTION | 信号类型自动识别 |
| 自动调整 | 参考电平自动调整 |
| 星座图 | DVB-T / DVB-H / DVB-C / DVB-S / DVB-S2 |
| 显示 | 6.5" transflective LCD TFT visible under sunlight
16:9 format |
| UTILITIES | Automatic measurements
Measurements reports
Satellite IF test |
| ADVANCED FUNCTIONS | Internet automatic updates
USB interface (for updates and data transfer)
Cable TV return path measurements (5 MHz)
PkTools software included
Transport case included |
| DIMENSIONS & WEIGHT | 230 x 161 x 76 / 2.5 kg approx. |
