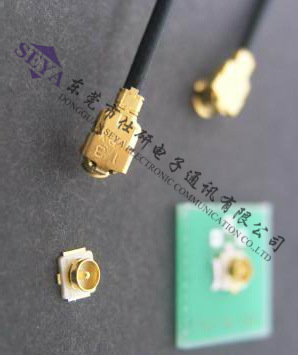

SEYA 仕研电子--第四代IPEX射频线，IPEX正版端子IPX 20448-001R-081

1 Frequency Range: DC to 6GHz (VSWR: 1.4 max. )
2.2 Characteristic Impedance: 50 ohm (Nominal)
2.3 Temperature: -40 to 90
2.4 Rated Voltage: AC 60V
2.5 Contact Resistance: 20m ohm Max. (Center) and 10m ohm Max. (Ground)
2.6 Withstand Voltage: AC 200V
2.7 Insulation Resistance: 500M ohm Min. / DC 100V
3. Applications
Mobile phones, Wireless LAN, Bluetooth protocol devices, PDA, GPS, electronic measuring instruments and any application requiring high frequency transmission over coaxial line, where space is limited.
4. Plug: 20448-001R-081 or MXHK98 TYPE or MXHK 92TK
5. Applicable Cable: 0.81mm
6. Receptacle: 20449-001E or murata MM4829-2700

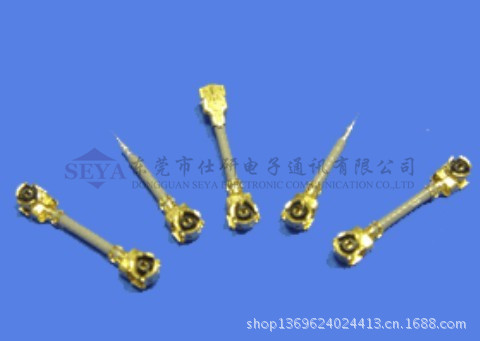

SEYA仕研电子通讯有限公司专业生产：I-PEX MHF PLUG全系列产品(I-PEX MHFⅠ,MHFⅡ,MHFⅢ,MHF 4) RF CABLE ASSEMBLY,可配以下规格的MINI COAXIAL CABLE(0.81mm,1.13mm,1.32mm,1.37mm,0.64mm), 连接线均由公司进口的日本原装端子机加工生产RF CABLE ，产品符合欧盟RoHS环保要求。外被颜色有:light gray（浅灰色）,black(黑色) , white(白色),brown(透明棕色).根据客户需求可配各种射频连接器(RF CONNECTOR)组装成RF CABLE ,其产品的长度可根据客户的需求需定.最短长度可达:10mm,
此款产品完全与MURATA完全兼容,完全可以替代HSC PLUG （MXHK92HK）系列产品。

１．頻率: DC～ 6G Hz
２．VSWR: 1.3 MAX. (DC～3GHz),1.5 MAX. (3～6GHz)
３．特性阻抗: 50±3ohm (TDR)
4.I-PEX MHF4 PLUG P/N:20448-001R-081与Murata P/N:HSC MXHK92HK 100%完全兼容;
5.I-PEX MHF4 Connector Receptacle P/N:20449-001与Murata P/N:MM4829-2700 100%完全兼容。
