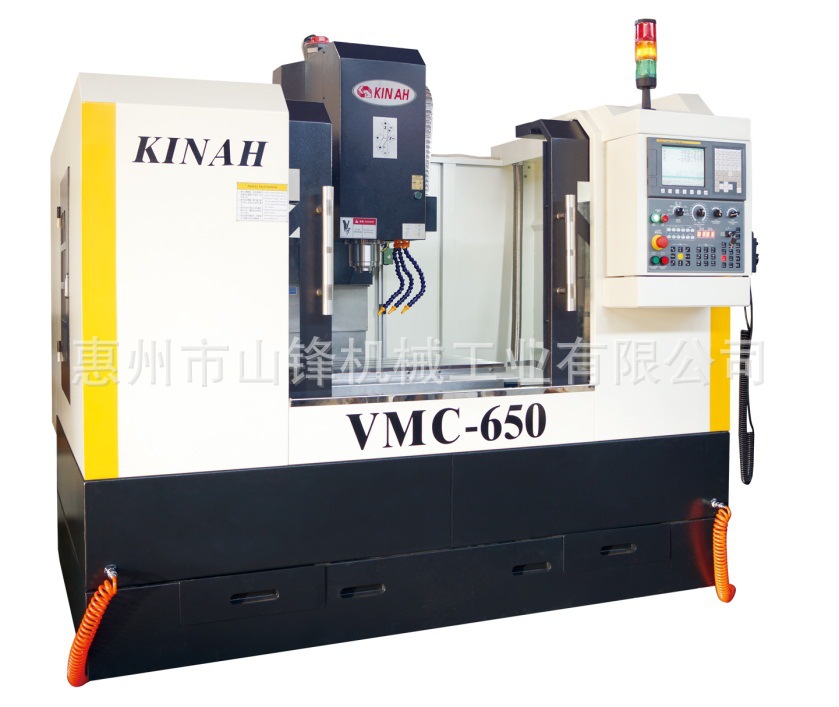

加工中心参数：
| 项目 | VMC-650B | VMC-650L | VMC-855B | VMC-855L | VMC-1055B | VMC-1055L | VMC-1165B | VMC-1165L | ||
| 工作台 | 工作台面积 | mm | 800 x 426 | 1080 x 510 | 1200 x 550 | 1300 x 600 | ||||
| T型槽（槽数 x 宽 x 间距） | mm | 3 x 18 x 100 | 5 x 18 x 100 | 5 x 18 x 100 | 5 x 18 x 120 | |||||
| 行程及 加工范围 | X轴最大行程 | mm | 650 | 850 | 1000 | 1100 | ||||
| Y轴最大行程 | mm | 450 | 550 | 550 | 650 | |||||
| Z轴最大行程 | mm | 500 | 560 | 560 | 650 | |||||
| 主轴端面至工作台面距离 | mm | 150 - 650 | 150 - 710 | 150 - 710 | 150 - 800 | |||||
| 主轴中心至立柱导轨面距离 | mm | 525 | 585 | 615 | 610 | 640 | 720 | |||
| 主轴 | 主轴最高转速 | rpm | 8000 (10,000 选配) | 8000 (10,000 选配) | 8000 (10,000 选配) | 8000 (10,000 选配) | ||||
| 主轴锥度 | BT40 | BT40 | BT40 | BT50 | ||||||
| 厂商 | 台湾 | 台湾 | 台湾 | 台湾 | ||||||
| 进给速度 | 快速进给速度（X/Y/Z) | m/min | 15/15/15 | 25/25/25 | 15/15/15 | 25/25/25 | 15/15/15 | 25/25/15 | 15/15/15 | 25/25/15 |
| 切削进给速度（X/Y/Z) | mm/min | 0.005 - 8000 | 0.005 - 8000 | 0.005 - 8000 | 0.005 - 8000 | |||||
| 滚珠丝杆 | 规格和等级(X/Y/Z/等级) | 4010/C3 | 4010/C3 | 4010/C3 | 4510/C3 | |||||
| 厂商 | 银泰/上银 | 银泰/上银 | 银泰/上银 | 银泰/上银 | ||||||
| 线轨 | 规格和等级(X/Y/Z/等级) | - | 35/45/45/P | - | 35/45/45/P | - | 35/45/45/P | - | 45/55/-/P | |
| 厂商 | - | 银泰/上银 | - | 银泰/上银 | - | 银泰/上银 | - | 银泰/上银 | ||
| 电机 | 主轴电机 | Kw | 5.5/7.5 | 7.5/11 | 7.5/11 | 11/15 | ||||
| 华大三轴电机 | Kw | 2.6 | 1.5 | 3.9 | 2.3 | 3.9 | 2.3 | - | - | |
| Fanuc 三轴电机 | Kw | 1.2 | 1.8 | 2.5 | 4 | 2.5 | ||||
| 三菱三轴电机 | Kw | 2 | 2 | 3 | 3 | |||||
| 刀库 | 刀库容量 | tool | 12/16 (选配) | 16/24 (选配) | 16/24 (选配) | 16/24 (选配) | ||||
| 换刀时间 | s | 2 | 2 | 2 | 2 | |||||
| 精度 | 定位精度 | mm | ±0.015 | ±0.015 | ±0.015 | ±0.015 | ||||
| 重复定位精度 | mm | ±0.008 | ±0.008 | ±0.008 | ±0.008 | |||||
| 其它 | 总电源 | KVA | 15 | 15 | 20 | 25 | ||||
| 整机重量 | Kg | 4500 | 6000 | 7000 | 8000 | |||||
| 外型尺寸（长 x 宽 x 高) | mm | 2200 x 2300 x2400 | 2800 x 2200 x2500 | 3100 x 2200 x2500 | 3300 x 2600 x 2700 | |||||
标准配置 STANDARD
*皮带式主轴（8,000rpm）Belt-Type Spindle (8,000rpm)
*全封闭钣金防设装置 Fully Enclosure
*电器箱热交换器装置 Heat Exchanger
*切削液系统（含水泵和水箱）Coolant System With Pump & Tank
*清洁用水枪 Coolant Gun
*清洁用气枪 Air Gun
*气压系统（不含气压源和外管）Air Pressure System
*中央集中自动润滑系统 Centralized Automatic Lubrication System
*润滑油独立回收装置 Lubrication Oil Recycle Tank
*防爆工作照明灯 High Quality Work Lamp
*3色警示灯 Three Color Indicator Lamp
*工具箱和调整工具 Tool Box & Tools
选购配置 OPTIONS
*皮带式主轴（10,000rpm）Belt-Type Spindle(10,000rpm)
*直连式主轴（12,000rpm）Direct-Drive Spindle(12,000rpm)
*主轴油冷装置 Spindle Cooling System
*NC旋转工作台（第四轴）NC Rotary Table (4th-axis)
*螺旋式排屑装置(含积屑车) Screw Type Chip Conveyor With Cart
*自动换刀（ATC）装置（不含刀具）Automatic Tools Changer (Umbrella or Arm Type)
*电器箱空调装置 Air Conditioner On Cabinet
*氮气配重系统 Nitrogen Balancing System
*底盘衝屑系统（含大流量水泵）Chip Washing System
线轨行走平行度精度 LM Parallelism Accuracy
| 滑轨长度 LM Length (mm) | 精度等级 Accuracy Class (μm) | ||
| H | P | SP | |
| -100 | 7 | 3 | 2 |
| 100-200 | 9 | 4 | 2 |
| 200-300 | 10 | 5 | 3 |
| 300-500 | 12 | 6 | 3 |
| 500-700 | 13 | 7 | 4 |
| 700-900 | 15 | 8 | 5 |
| 900-1,100 | 16 | 9 | 6 |
| 1,100-1,1500 | 18 | 11 | 7 |
滚珠螺杆国际标准精度等级 International Standard of Ballscrew Accuracy
| 等级 Class | 研磨级 Grinding Class (μm) | ||||||
| C0 | C1 | C2 | C3 | C4 | C5 | ||
| ν300 | ISO,DIN | 6 | 12 | 23 | |||
| JIS | 3.5 | 5 | 8 | 18 | |||
| HIWIN | 3.5 | 5 | 6 | 8 | 12 | 18 | |
全系列主要零配件规格Major components of the VMC Series
*螺杆（台湾制）Ballscrews (Made in Taiwan)
*线轨（台湾制）Linear Guideways (Made in Taiwan)
*主轴（台湾制）Spindle (Made in Taiwan)
*刀库（台湾制）Automatic Tool Changer (Made in Taiwan)
*打刀缸（台湾制）Pneumatic Cylinder (Made in Taiwan)
*整机轴承（进口）Bearings (Imported)
*联轴器（进口）Couplings (Imported)
主要特点 Main Features
*三轴采用超大尺寸的硬轨设计，经热处理且精密研磨
Guideways are wide on all three axes,surfaces are hardened and ground
*三轴采用C3等级精密道螺杆，并全部施予预拉处理
Class C3 precision ballscrews are standard and pre-tensioned
*三轴高规格伺服马达与高刚性联轴器，无背隙问题，加速反应极快
Precision couplings and excellent servo motors are used to eliminate backlash
*刀臂式刀库，可减少等待预备刀之非加工时间，提高加工效率（选配）
Arm-type ATC can reduce waiting time between tools changing(optional)
