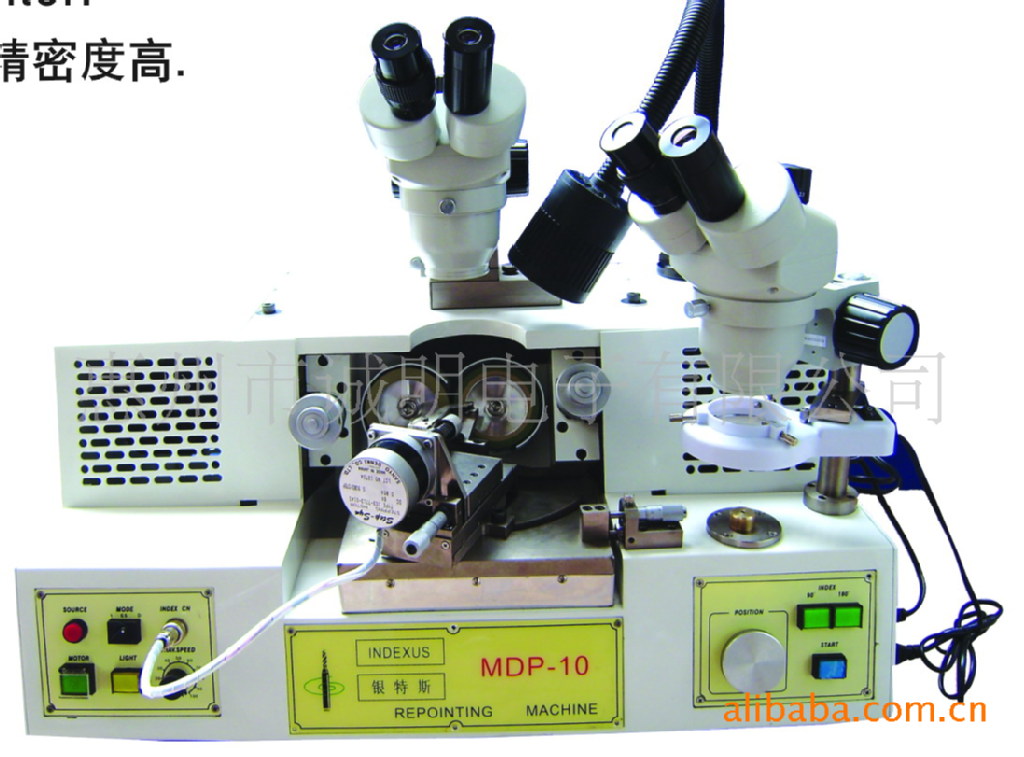

小钻PCB 钻咀研磨机（半自动）
MICRO PCB DRILL-BIT REPOINTING MACHINE (Semi-Automatic)
Specially designed to repoint micro sizes (0.20mm-1.20mm) with utmost precision,
Can be fitted with microscope or CCD monitor.
研磨范围为0.20mm-1.20mm，研磨速度快，精密度高，
可选用显微镜观测或带有CCD显示屏观测。
研磨范围 | Drill Size Range | 0.20mm-1.20mm |
钻尖角 | Pointing Angle | 110°to 180° |
马达角 | Motor Angle | 0° to 30° |
砂轮尺寸 | Diamond Wheel Diameter | 75MM |
砂轮回转速 | Wheel Revolution | 4200rpm |
电源 | Electrical Supply | AC110V |
消耗电力 | Consumption | 500W |
外观尺寸 | Machine Dimensions | 690(W)*450(D)*500(H) |
重量 | Weight | 120kgs |
中钻PCB 钻咀研磨机（半自动）
MID-SIZE PCB DRILL-BIT REPOINTING MACHINE (Semi-Automatic)
Ability repoint mid-sizes drills (Φ1.25mm-Φ3.175mm) with utmost precision,
Can be fitted with microscope or CCD monitor.
研磨范围为Φ1.25mm-Φ3.175mm，研磨速度快，精密度高，
可选用显微镜观测或带有CCD显示屏观测。
研磨范围 | Drill Size Range | Φ1.25mm-Φ3.175mm |
钻尖角 | Pointing Angle | 110°to 180° |
马达角 | Motor Angle | 0° to 30° |
砂轮尺寸 | Diamond Wheel Diameter | 75MM |
砂轮回转速 | Wheel Revolution | 4200rpm |
电源 | Electrical Supply | AC110V |
消耗电力 | Consumption | 500W |
外观尺寸 | Machine Dimensions | 690(W)*450(D)*500(H) |
重量 | Weight | 120kgs |
PCB钻咀研磨机（手动）
PCB DRILL-BIT REPOINTING MACHINE (Manual)
Ability to re-point a wide range of sizes (Φ0.40mm-Φ6.50mm),
Can be fitted with microscope or CCD monitor.
研磨范围甚广，可研磨Φ0.40mm-Φ6.50mm之间的PCB钻咀，
可选用显微镜观测或带有CCD显示屏观测。
研磨范围 | Drill Size Range | Φ0.40mm-Φ6.50mm |
钻尖角 | Pointing Angle | 90°to 180° |
马达角 | Motor Angle | 0° to 30° |
砂轮尺寸 | Diamond Wheel Diameter | 125MM |
砂轮回转速 | Wheel Revolution | 2900rpm |
电源 | Electrical Supply | AC110V |
消耗电力 | Consumption | 500W |
外观尺寸 | Machine Dimensions | 690(W)*350(D)*500(H) |
重量 | Weight | 80kgs |
