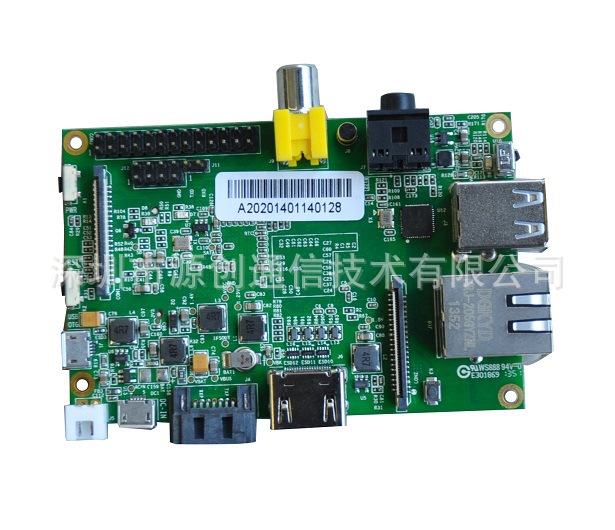

Banana PI M1是为了配合Elastos.org开源OS推广而推出开源硬件平台，Banana PI M1是一款比树莓派更强悍的双核Android4.2产品。Banana PI D1是跑的Linux开源板子。M系列跑Android，表示Mother-board。D系列跑Linux，表示Daughter-board。Elastos将协调多CPU形成基于“软件/硬件服务”的家庭云生态环境。
Banana PI 硬件：1Ghz ARM7双核处理器，1GB DDR3内存，千兆以太网口，SATA Socket，流畅运行Android4.2.2。Banana PI M1体积如信用卡大小，轻松运行《雷神之锤三：竞技场》这样的游戏，支持1080P高清视频输出，GPIO兼容Raspberry Pi并直接运行其ROM Image。
硬件规格 |
CPU | A20 ARM Cortex™-A7 Dual-Core |
GPU | ARM Mali400MP2Complies with OpenGL ES 2.0/1.1 |
Memory (SDRAM) | 1GB DDR3 (shared with GPU) |
Onboard Storage | SD (Max. 64GB) / MMC card slot UP to 2T on 2.5 SATA disk |
Onboard Network | 10/100/1000 Ethernet RJ45,optional WIFI |
Video Input | A CSI input connector allows for the connection of a designed camera module |
Video Outputs | HDMI, CVBS , LVDS/RGB |
Audio Output | 3.5 mm Jack and HDMI |
Power Source | 5 volt via MicroUSB(DC In Only) and/or MicroUSB (OTG) |
USB 2.0 Ports | 2 (direct from Allwinner A20 chip) |
Buttons | Reset button: Next to MicroUSB connector Power button: Next to Reset button Boot button (Optional): Behind HDMI connector |
GPIO(2X13) pin | GPIO,UART,I2C bus,SPI bus with two chip selects, CAN bus,ADC,PWM,+3.3v,+5v,ground. |
LED | Power Key & RJ45 |
Remote | IR (Optional) |
OS | Android 4.2,Firefox OS and Linux etc. OS |
Interface definition |
Product size | 92 mm × 60mm |
Weight | 48g |
支持ＡＮＤＲＯＩＤ系统 ＬＩＮＵＸ系统 Raspberry Pi 树莓派系统
Android 系统显示画面
Debian系统画面
Raspberry Pi 树莓派系统画面
Ubuntu系统画面
