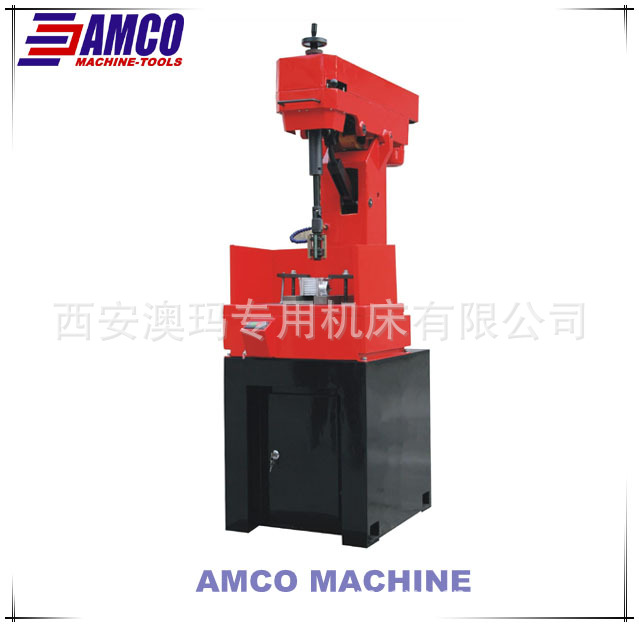

立式珩磨机3MB9808
本机床主要适用于气缸直径为40-80毫米的摩托车、汽车及拖拉机的缸珩磨。机床结构紧凑,体积小。操作方便,具有手动和机动功能。珩磨头具有两级进给速度。本机床的高精确度适合于整修小型气缸 。
This machine is used for repairing the cylinder with the diameter of 40-82mm of motor cycle, automobiles and tractors. The machine features compact size, light weight reliable performance, easy for operation. The honing head can be up and down by hand and mechanical motor. Honing head has 2 steps speed. This machine has the high efficiency for repairing the small cylinder
型号 | 3MB9808 |
珩孔直径范围Honing diameter range | Φ40-82mm |
最大珩孔深度Max. honing depth | 200mm |
主轴转速Spindle speed | 200, 280rpm |
珩磨头往复运动速度Reciprocating of honing head | 19, 27s/min |
主电机功率Power of main motor | 0.55kw |
外型尺寸(长x宽x高)Overall dimensions | 600x85x130mm |

'
