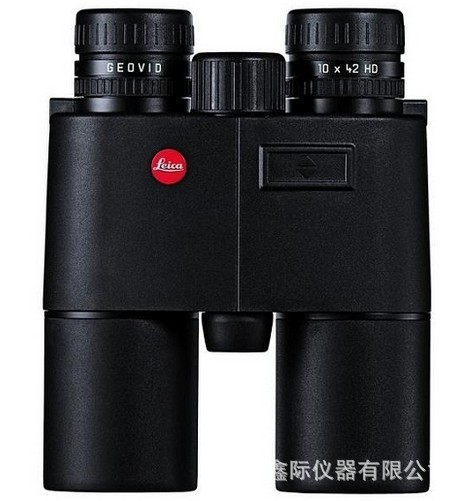

GEOVID 10X42 HD激光测距望远镜的详细介绍:
功能强大的GEOVID非常适合微小细节进行观察和远距离测距。
徕卡最新改进Geovid双筒测距望远镜的性能,采用了氟化物光学技术以提高清晰度、亮度和反差,其纳米镀膜技术,使Geovid HD成为恶劣天气、高湿环境中的理想用品。
新型的双筒望远镜连续按压测量钮即切换到扫描模式的开关,使之可以连续跟踪移动物体。徕卡GEOVID HD型号可以确保在最低-25摄氏度环境下或者在5米深的水下使用。
即便在很寒冷的气候中,调焦钮都能够十分平滑顺畅地操作,两个目镜都有防滑功能,很容易进行屈光度调整。从中央调节钮小孔中可发出激光束,反射的激光束被接收后,立刻通过一个多棱镜反射到内置的计算器中进行计算,做这项工作的同时不会减少观察影像的亮度。只要您按下测距按钮,测量的数据就能够以电子方式显示在右手的目镜中。
Leica Geovid BRF 双筒望远镜具有的一个极为显著的功能,而且实际运用时也是极其重要的功能是:不仅可以迅速地显示测量距离,而且只要一直按住测量按钮不动,测量一直在进行中。当动物移动时,你可以看到距离在不断地变化,测量的变化数字会自动显示在屏幕中。并且,测量的数字始终以均衡的光线出现,没有刺眼的干扰视线的炫目现象。使用这种望远镜,我们能够对非常难以观察的低反射的目标进行的距离测量,例如在丛林中,而且观测目标的距离刚刚超过1110米,它们的测量结果都是迅速正确的。因此,徕卡 Geovid BRF 双筒望远镜在狩猎和自然观察中都是性能优越、极其实用的,它将顶级光学产品和激光测距仪完美地结合在一个双筒望远镜中,有极高的性能价格比。
徕卡Leica Geovid 10X42 HD双筒测距望远镜详细规格:
标准配件:背带、目镜盖、物镜盖、电池、Cordura袋
放大倍率:8×
物镜直径:42毫米
出瞳直径:4.2毫米
视场(距离1000米/码):125米/码
眼距:19.3毫米
视角:6.3度
最近对焦距离:约10米
屈光度补偿:±3.5级
距离测量
测距范围:10米至1300米
测量精度:350米,±1米/码
700米,±2米
>700米,为±0.5%
显示方式:4位发光二极管显示器,适用于各种光线条件
适用于佩戴眼镜者的眼罩:有
推拉式眼罩:有,可拆卸,两级递进
对焦方式:通过中央调焦钮在内部对焦
棱镜系统:经过P40相位校正镀膜的屋脊式棱镜
防水性能:至水下5米
镜筒:压铸铝合金、充氮气
尺寸(宽×高×深):约125×168×70mm
重量:约950克(含电池)
米/码选项:无
激光:不可见激光(符合EN和FDA class 1安全标准)
激光光束发射方式:2.5×0.5 mrad
测量时间:最长约1.4秒
测量模式:扫描模式
供电方式:1×C2R
电池寿命:20度的条件下可测量约2000次。
Please test the different zoom factors.
Leica Geovid HD 42
The Geovid HD 42s are the lightest and most compact premium binoculars with integrated rangefinders. In addition to an extended measuring range, this model offers ergonomic design, a high-quality finish and particularly rugged construction.
_ 8× or 10× magnification
_ Compact, light, and hand
_ Precise distance determination at medium and long distances
_ Reliable viewing and measurement in the hours of dusk and dawn
Leica Geovid HD 56
Thanks to their superior light-gathering power, the Geovid HD 56 models are particularly suitable for viewing well into the hours of twilight. Precise distance determination is guaranteed in any weather without any compromise in their compact form or ergonomic properties.
_ 8× or 15× magnification
_ Particularly high light-gathering power
_ Compact size and uncompromising optical performance
_ Highest magnification factor of all binoculars with integrated rangefinders currently available on the market
Leica Geovid HD Specification at a glance
Model | Geovid HD 42 | Geovid HD 56 |
Order no. | 8x42 HD 40 036 (m) 8x42 HD 40 037 (yds) 10x42 HD 40 038 (m) 10x42 HD 40 039 (yds) | 8x56 HD 40 041 (m) 8x56 HD 40 042 (yds) 15x56 HD 40 043 (m) 15x56 HD 40 044 (yds) |
Package includes | Neoprene carrying strap, eyepiece protector, case | Neoprene carrying strap, eyepiece protector, case, tripod adapter (Geovid 15x56 HD only) |
Magnification | 8× I 10× | 8× I 15× |
Objective lens diameter | 42 mm | 56 mm |
Field of view at 1000 m / 1000 yds | 125 m I 110 m / 375 ft I 330 ft | 118 m I 75 m / 354 ft I 225 ft |
Close focus limit | ~ 5.6 m I 5.6 m / 18.4 ft I 18.4 ft | ~ 5.6 m I 5.9 m / 18.4 ft I 19.4 ft |
Weight | ~ 950 g I ~ 945 g ~ 33.5 oz I 33.3 oz | 1100 g I 1300 g / 38.8 oz I 45.9 oz |
'
