Specifications
1.High Quality Electronic Ballast 32W UL CUL CE Listed
2.High Power Factor; energy saving; low THD
3.UL CUL CE
4. 3 years warranty
Production
Name
High Quality Electronic Ballast 32W UL CUL CE Listed
Certificates
- UL
listed
- CUL
listed
- FCC
certified
- CE
certified
-
ROHS certified
Electrical
Characteristics
- Starting
Method: Instant Start/Rapid Start
- Sound Rated:
A
-
O.C.V:600V
- No
PCB'S
- TYPE 1
Outdoor
- Class
P
-
EEI=A2
- Ambient Temperature (Ta), -15°C-50°C
- Case Temperature (Tc), 75°C
- Protective Function
- Over input-current protection circuit
- Over input-voltage protection circuit
- Abnormal output protection circuit
- End of lamp life protection circuit
Technical
specification:
| Model | Lamp
Type | Num.
of
Lamps | Input
Voltage
(V) | Input
Current
(Amps) | Input
Power
(Watts) | Power
Factor | Max
THD
% | Min. Start
Temp(°F/°C) |
| TBE-135FS | F32T8/
PLC | 1 | 120V | 0.29 | 32 | ≥0.93 | 35 | 0/-18 |
| TBE-261FS | F32T8/
PLC | 2 | 120V | 0.54 | 64 | ≥0.98 | 15 | 0/-18 |
| TBE-391FS | F32T8/
PLC | 3 | 120V | 0.82 | 96 | ≥0.98 | 15 | 0/-18 |
| TBE-237FS | F32T8/
PLC | 2 | 220V | 0.30 | 64 | ≥0.98 | 15 | 0/-18 |
| TBE-437FS | F32T8/
PLC | 4 | 220V | 0.58 | 125 | ≥0.98 | 15 | 0/-18 |
| TBE-126FW | F32T8/
PLC | 2 | 120V/277V | 0.54/0.23 | 64 | ≥0.99 | 10 | 0/-18 |
| TBE-34CFW | F32T8/
PLC | 4 | 120V/277V | 1.05/0.46 | 125 | ≥0.99 | 10 | 0/-18 |
Physical
Characteristics for Model: TBE-237FS/ 437FS/ 4C1FS / 126FW/
34CFW :
| Overall Dimensions | Case |
| Length(L1) | 240mm | Metal |
| Length(L2) | 210mm |
| Width(W) | 43mm |
| Height(H) | 30mm |
| Mounting(M) | 225mm |
Physical
Characteristics for MOdel: TBE-135FS
| Overall Dimensions | Case |
| Length(L1) | 140mm | Metal |
| Length(L2) | 120mm |
| Width(W) | 29mm |
| Height(H) | 25mm |
| Mounting(M) | 132mm |

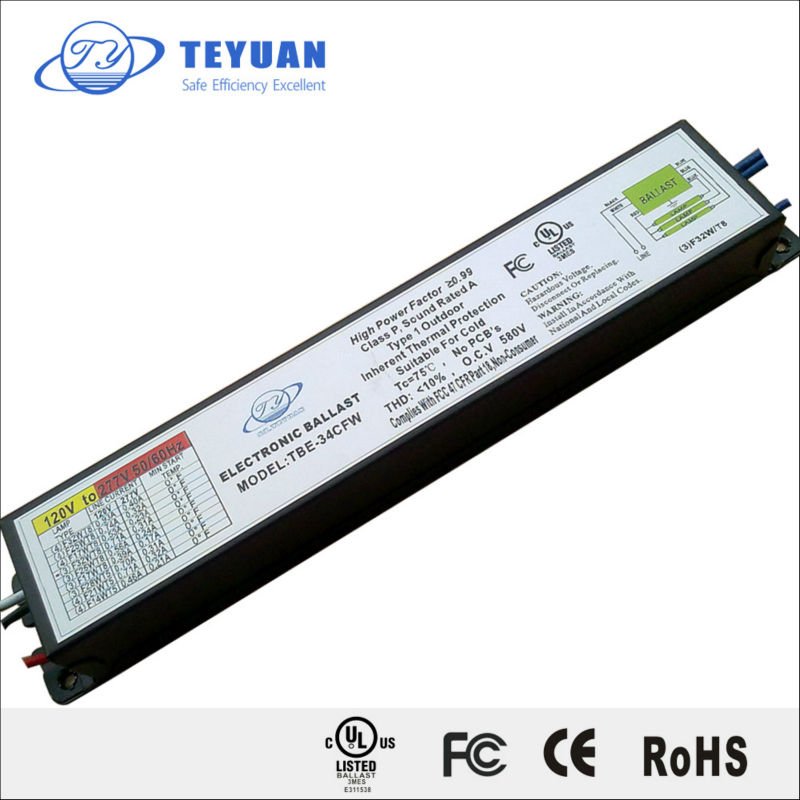

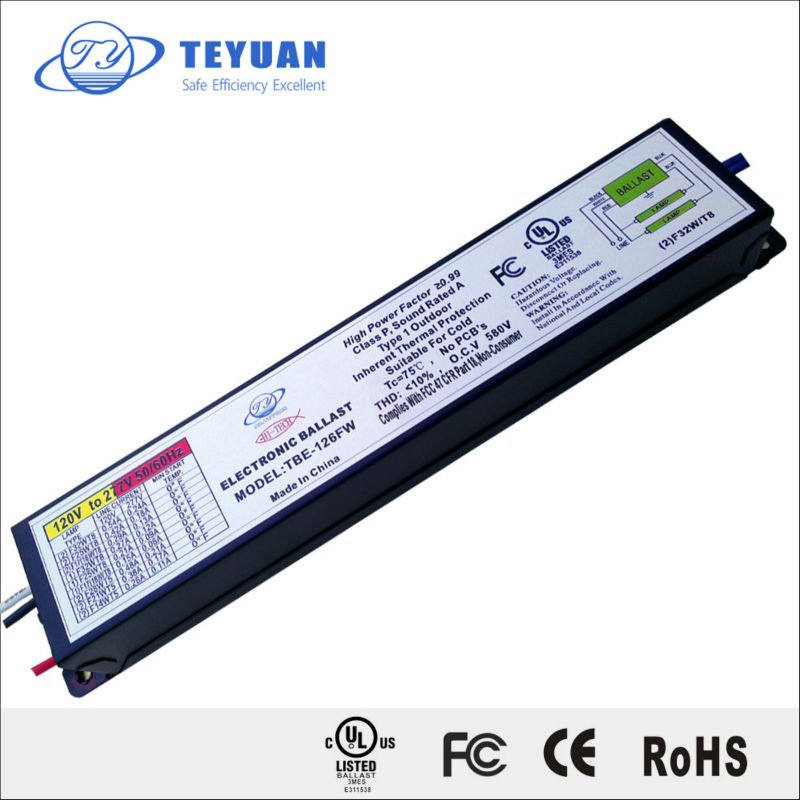

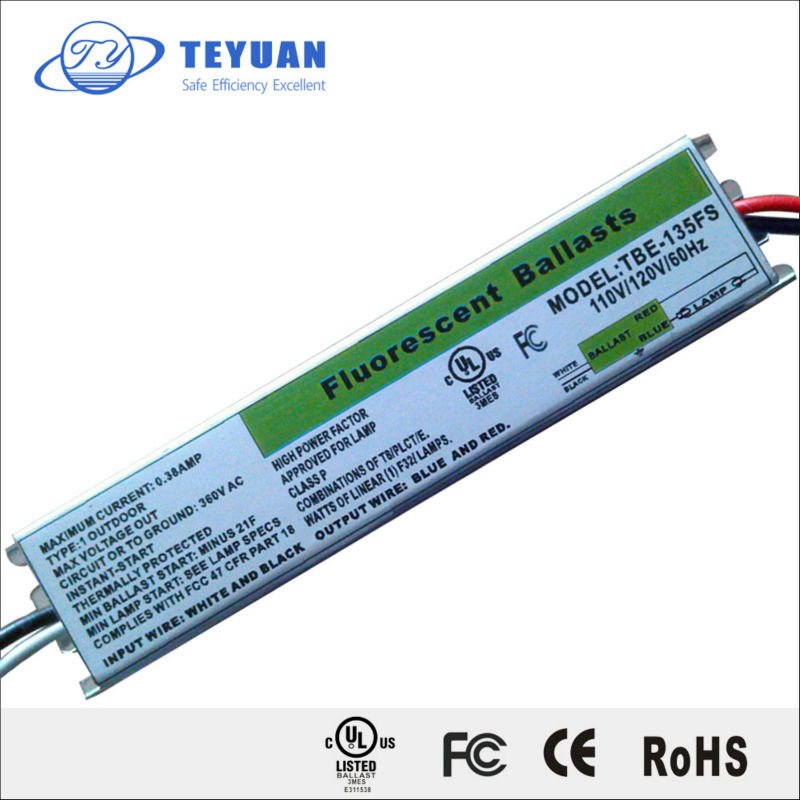

Product
photos:
Quality
control
Packaging
information
We
can make our products to fit various line voltage, frequency, environment
and luminaries as per the customer's requests.
Please feel free to contact us if any queries.
