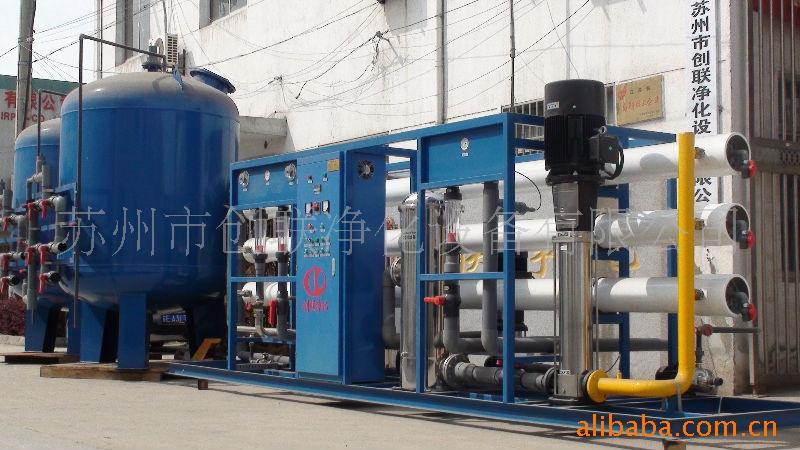

化工和精细化妆品行业用纯水设备
Pure water treatment equipment for chemical and fine cosmetics industries
应用领域和指标要求参考
Reference of applications areas and indexes required
用途Applications | 用水指标Water Indicators | 参考标准Reference standard |
护肤品、洗发水、染发剂、牙膏生产和各种清洗液生产用纯水 Pure water for Skin-care products, shampoo, hair dyes, toothpaste production and a variety of cleaning fluid | 电导率≤2μs/CM Electric conductivity≤2μs/CM | 饮用纯净水标准（GB17324-98） Purified drinking water standards（GB17324-98） 医用纯化水标准（GMP2005版） Medical standards for purified water（GMP2005 version） |
超纯材料和超纯化学试剂 石英、硅材料生产、加工、提纯 电子半导体、集成电路板上用到的化工材料 Ultra-pure materials and ultra-pure chemical reagents Quartz, silicon material production, processing, purification Electronic semiconductors, integrated circuit boards used in chemical materials | 电阻率15 ~18.25 MΩ.CM Resistivity 15 ~18.25 MΩ.CM | 我国电子级水质技术指标GB11446-1-1997 Electronic-grade water quality technical indicators of Chinese standard GB11446-1-1997 美国半导体工业用纯水指标 The U.S. semiconductor industrial pure water indicators |
普通化工材料的生产和加工过程所用的溶剂及清洗过程 Common chemical material production and dissolvent in the processing and rinsing process | 电导率≤10μs/CM Electric conductivity≤10μs/CM | 饮用纯净水标准（GB17324-98） Purified drinking water standard (GB17324-98) |
实验室和中试车间 Lab and pilot plant | 电阻率15 ~18.25 MΩ.CM） Resistivity 15 ~18.25 MΩ.CM | 实验室高纯水标准GB 6682-92 Lab high-water standards ( GB 6682-92) |
高纯墨水、传真打印机中的喷墨、纳米墨水 Purity ink, fax, printer inkjet, nano-ink | 电阻率15 ~18.25 MΩ.CM） Resistivity 15 ~18.25 MΩ.CM | 我国电子级水质技术指标GB11446-1-1997 Electronic-grade water quality technical indicators of Chinese standard GB11446-1-1997 美国半导体工业用纯水指标 The U.S. semiconductor industrial pure water indicators |
主要工艺流程和出水指标：
Main technical process and standard of output water
※预处理+一级反渗透（电导率≤10μs/CM）
Pre-treatment+ one stage reverse osmosis system (electric conductivity≤10μs/CM）
※预处理+二级反渗透（电导率≤2μs/CM）
Pre-treatment+ double stage reverse osmosis system (electric conductivity≤2μs/CM）
※预处理+反渗透+离子交换器（电阻率≥15MΩ.CM）
Pre-treatment+ stage reverse osmosis system+ion exchange (electric conductivity≥15MΩ.CM）
※预处理+一级反渗透+EDI（电阻率≥15MΩ.CM）
Pre-treatment+ stage reverse osmosis system+EDI (electric conductivity≥15MΩ.CM）
※ 预处理+二级反渗透+EDI +抛光混床（电阻率≥18.25MΩ.CM）
Pre-treatment+ double stage reverse osmosis system+EDI +polishing mixed bed (electric conductivity≥18.25MΩ.CM）
详细工艺需根据原水设计情况进行设计
Details of the design process should be carried out according to the feed water quality.
纯水设备的主要特点
Main technics of pure water treatment equipment
▼采用进口反渗透膜，脱盐率高，使用寿命长，运行成本低廉，产水水质高而稳定； Adopted import reverse osmosis membranes, desalination rate is high, long service life, the operation cost is low, the output water quality is high and stable. On-line water quality monitoring and control, real-time monitoring of water quality to ensure safety of water quality. Automatic control procedure, also equipment with touch screen operation, easy to use, the operation is simple, safe. Correspond with the local water personalized design, considerate stackable design, small floor area, which can meet considerate needs. ▼与传统工艺相比具有运行成本低的优点（离子交换器的再生周期大大延长），与最新工艺相比具有造价低，耗材易得的优点； Compared with the traditional process, it has the advantages of low operating cost(Ion exchanger regeneration cycle greatly extended), compared with the latest technology, it has the advantage of low cost, easy consumables. ▼运行费用及维修成本低，全自动运行，实现无人化管理操作 Operating costs and maintenance cost low, automatic operation, can realize unmanned management operations. |
'
