此产品主要用于品管部门判定污点，是用来测量、对比手机外壳、LENS、DISPLAY等部件的点、划痕的面积、直径、宽度、长度是否超过基准，适用在LCD,PCB板,光电，PCB，通信行业等. 英制尺/公制尺的菲林尺上都有刻度说明。

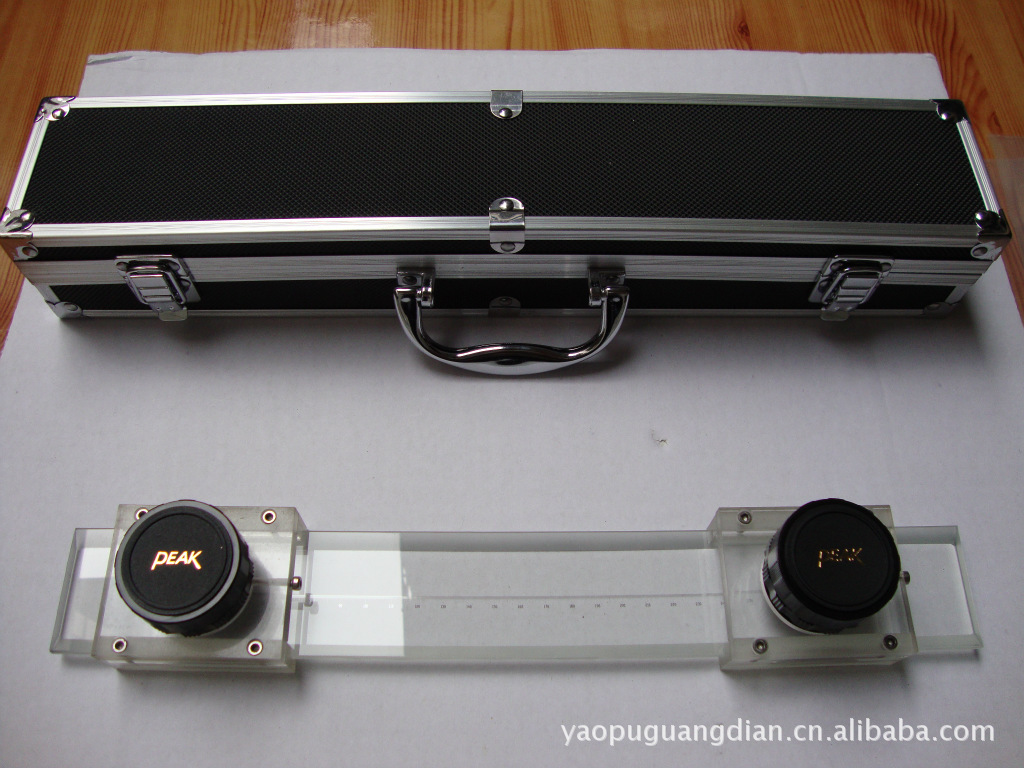

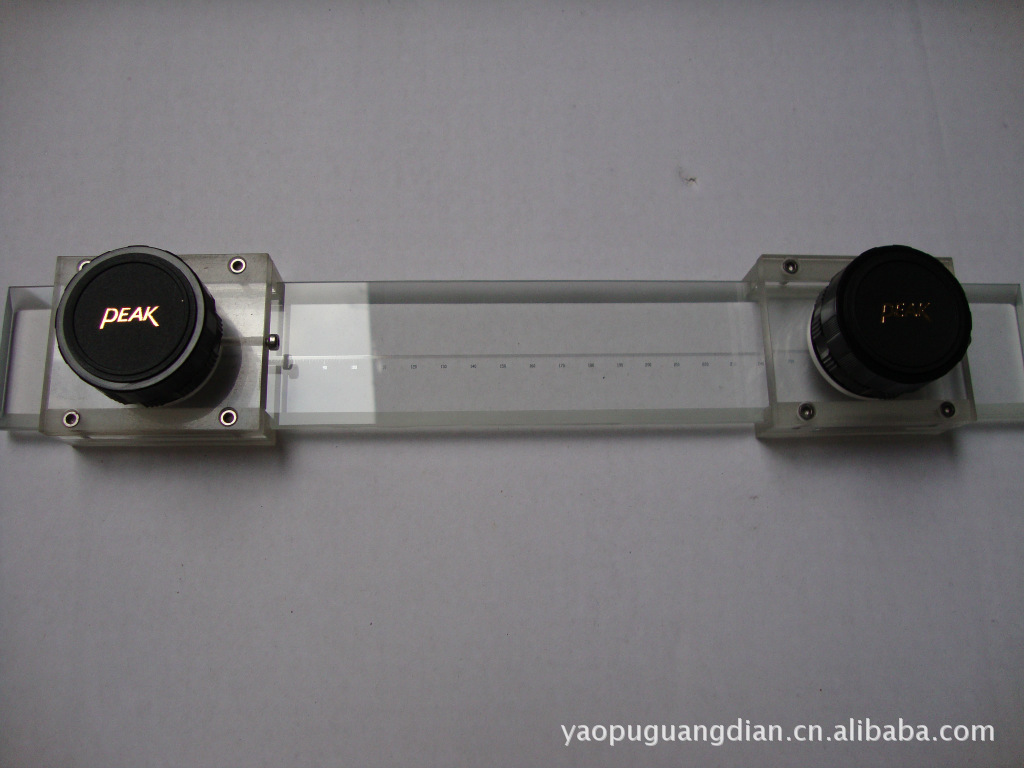

此款为600MM的菲林尺，其他尺寸欢迎订做
耀谱公司生产的菲林尺分辨率有0.10，0.05，0.02三种，常用尺寸如下：
规格型号 | 长（mm） | 宽（mm） | 厚（mm） | 分格值 | 精度(μm) |
ＹＰF002－0300 | 350 | 50 | 10 | 1mm,0.5mm,0.1mm,0.05mm,0.02mm | 1 |
ＹＰF002－0600 | 650 | 50 | 10 | 1mm,0.5mm,0.1mm,0.05mm,0.02mm | 3 |
ＹＰF002－0800 | 850 | 50 | 10 | 1mm,0.5mm,0.1mm,0.05mm,0.02mm | 5-8 |
ＹＰF002－1000 | 1050 | 50 | 10 | 1mm,0.5mm,0.1mm,0.05mm,0.02mm | 5-10 |
规格型号 | 长（mm） | 宽（mm） | 厚（mm） | 分格值 | 精度(μm) |
ＹＰF005－0300 | 350 | 50 | 10 | 1mm,0.5mm,0.1mm,0.05mm,0.02mm | 1 |
ＹＰF005－0600 | 650 | 50 | 10 | 1mm,0.5mm,0.1mm,0.05mm,0.02mm | 3 |
ＹＰF005－0800 | 850 | 50 | 10 | 1mm,0.5mm,0.1mm,0.05mm,0.02mm | 5-8 |
ＹＰF005－1000 | 1050 | 50 | 10 | 1mm,0.5mm,0.1mm,0.05mm,0.02mm | 5-10 |
规格型号 | 长（mm） | 宽（mm） | 厚（mm） | 分格值 | 精度(μm) |
ＹＰF010－0300 | 350 | 50 | 10 | 1mm,0.5mm,0.1mm,0.05mm,0.02mm | 1 |
ＹＰF010－0600 | 650 | 50 | 10 | 1mm,0.5mm,0.1mm,0.05mm,0.02mm | 3 |
ＹＰF010－0800 | 850 | 50 | 10 | 1mm,0.5mm,0.1mm,0.05mm,0.02mm | 5-8 |
ＹＰF010－1000 | 1050 | 50 | 10 | 1mm,0.5mm,0.1mm,0.05mm,0.02mm | 5-10 |
以上规格为常用规格，其他型号欢迎定做。
'
