【供应防爆应急灯 CBJ52 BAJ52】价格_厂家

品牌/型号

平安/CBJ52

型号

CBJ52

加工定制

否

防护等级

IP54

类型

防爆应急灯

光源功率

20（W）W

光源类型

LED 白炽灯

主要适用范围

适用于ⅡA、ⅡB、ⅡC类爆炸性气体环境适用于1区，2区危险场所

电压

220（V）V

品牌

平安

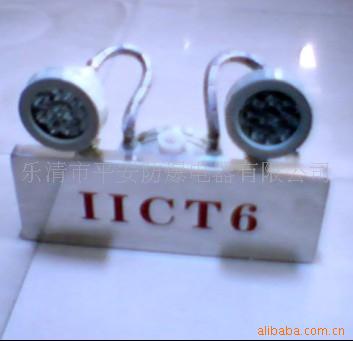

CBJ52系列防爆应急灯（ⅡB、ⅡC）

适用范围 Application
适用于1区，2区危险场所。 Can be used in Zone 1 and Zone 2 dangerous places. 适用于ⅡA、ⅡB、ⅡC类爆炸性气体环境。 Can be used in IIA，IIB，IIC group explosive atmosphere. 可配装白炽灯、汞灯。 Suitable ofr incandesent lamp,mercury vapor laamp. * 要求ⅡC类时请注明 *Please note if need II C group
型号含义Model implication

产品特点Features

铸铝合金外客，表面喷塑。                                                        Diecasted aluminium alloy shell with plasticsprayed surface.
应急专用灯中正常照明灯和应急照明灯各自独立,适合安         Normal lamp and emergency lamp of the pision type are respectively
   装条件许可的场所;照明应急两用灯,正常照明和应急照明          suitable to the appropriate sites,but the dual-purpose for lighting and
   共用一个灯体,光源独立。                                                              emergency type share a same lampe body,moreover light source is independent.
内装免维护镍镉电池组，在正常供电下自动充电，事故断      Under the normal power-supplyingcondition,inner Nickel-Cadmium battery
   电或停电时应急灯自动点亮。                                                        can recharge automatically,so that the emergency lamp will turn on automatically
                                                                                                               when the power ose because of accident or power failure.
钢管或电缆布线均可。                                                                 Suitable for both steelpe and cable wiring.
可根据用户要求设置试验按钮和指示灯具                               It can be equipped with test button and indicator according to user's requirement.
符合GB3836-2000，IEC60079标准要求                                     Suitable for BG3836-2000,IEC60079 standard request.

主要技术参数Main technical parameters

防爆标志防护等级电缆外径(￠,mm) 进线口螺纹(G")
Ex-mark Protection grade Cable's outside diameter Inlet's thread

Exd II BT4 *Exde IICT4 IP54 10～14 3/4

额定电压(v) Rated voltage 应急起动时间(s) 充电时间(h) 应急照明时间(min)
正常Normal 应急 Emergency Emergency starting time Recharging time Emergency lighting time

AC220V/50Hz 6V/50Hz 0.3 24 90

配用光源Supplied with lamps

正常照明 Normally luminating 应急照明 Emergency luminating

125W自汞灯 Imcandescent mercury lamp 20W碘钨灯具 Iodin-tungsten lamp
200W白炽灯 Incandecent lamp

E27灯座E27 Lamp socket GV5.3灯座GV5.3 Lamp socket

外形及安装举例Outline and mounting example
