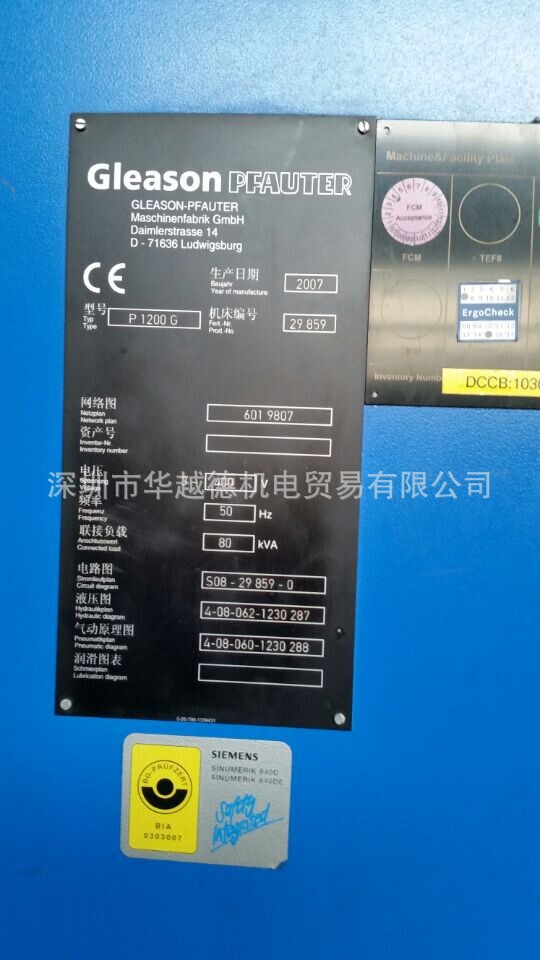

德国Gleason-Pfauter数控磨齿机P 1200G
Technical Data 技术资料
model型号:P 1200 G
Workpiece工件:
Max. Grindable Profile depth最大可磨仿形深: 80 mm
Max. Diameter (grinding)最大磨削直径: 1320 mm
Max. Diameter (measuring)最大测量直径: 1200 mm
Tool (Wheel) 工具（砂轮）:
Max. Diameter最大直径: 400 mm
Max. Width最大宽: 80 mm
Diameter of the spindle journal for retaining主轴轴颈直径: 80 mm
Length of spindle journal for retaining主轴轴颈长度: 132 mm
Machine机床:
- Travel distances轴行程:
Radial (X-axis)径向X轴: 770 mm
Tangential (Y-axis)切向Y轴: 330 mm
Axial (Z-axis)轴向Z轴: 1000 mm
Maximum grinding head pivoting angle Direction最大磨头转角: +/- 45 degrees
- Work table工作台:
External diameter外直径: 800 mm
Bore孔直径: 250 mm
Max. table load最大工作台承载: 100 kN
- Tailstock尾座:
Travel distance行程: 900 mm
Min. diameter of the steady rest最小中心架直径: 110 mm
Max. diameter of the steady rest最大中心架直径: 250 mm
- Overall dimensions of the machine(LxWxH)机床长宽高: 8355 x 8420 x 5080 mm
- Weight of machine (approx.)大约机床重: 25,500 kg
Speeds速度:
- Feeds rapid traverses进给和快速:
Axis X 轴: 3000 mm/min
Axis Y轴: 5000 mm/min
Axis Z轴: 6000 mm/min
- Speeds速度:
Tool (S-spindle)工具（S轴）: 1200 to 8000 min-1
Work table (C-axis)工作台（C轴）: 0 to 10 min-1
Electrical equipment电气装置:
Operating voltage操作电压: 380 V
Supply voltage供给电压: 230 V
Control voltage控制电压: 24 V
Frequency频率: 60 Hz
Cable cross-sectional area电缆横向切面面积: 70 mm2
Protection电流: 160 A
Connected load of machine机床联接承载: 90 kVA
Technical data - Dressing system 技术资料-修整系统
Dressing unit - Travel distance(Axis Z2)修整单元-Z2轴行程: 150 mm
Speeds - Feeds a
