标准灯箱 DNP 透射摄像头测试照明箱 苏州天友利
苏州天友利仪器有限公司
中国 苏州
产品属性
图文详情
品牌推荐
品牌
3nh
型号
DNP
DNP灯箱是摄影机及静相摄影机的评价
3nh 或 DNP标准灯箱 3nh & DNP Standard Color Viewer
产地：OEM 或 日本

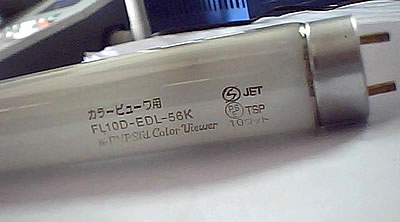

DNP专用灯管大量现货供应！FL10D-EDL-56K >>>
| |||
 |
| The DNP Standard color Viewer is a light source which enables you to evaluateadjust videostill cameras. With its high-frequency Fluorescent lighting method, it handles images without flicker. |
Specification
| Light source: | DNP Standard color Viewer lamp (Four 10W dedicated fluorescent tubes are used) |
| Power supply: | AC100V 50, 60Hz |
| Lighting method: | High Frequency lighting method 20KHz |
| Color rendering: | Over 90% rendering evaluation-point for each color |
| Color temperature: | (Measured by Minolta CL-200) |
| Operating temperature: | 10～40℃ |
| Operating humidity: | Below 80%(avoid dew) |
| Major diameter dimension: | 375W×365H×165D m/m |
| Luminance plane dimension: | 250W×190H m/m |
| Color chart dimension: | 320W×290H m/m |
| Power consumption: | 80W |
| Weight: | 6.5kg/7.5kg |
苏州透射摄像头测试照明 ，3nh标准灯箱 DNP●The Luminance plane characteristics: according to the types of
self-contained fluorescent lamp Product Type Luminance Color Temperature Lamp Color Temperature Luminance Color matching shift Weight CCV-31F Fixed FL10WW-DLB 3100K±300 Over 1300cd/m2 Within 10% 6.5kg CCV-51F Fixed FL10D-EDL-56K 5100K±300 Over 1400cd/m2 Within 10% 6.5kg CCV-31F/G Volume adjustable FL-10WW-DLB 3100K±300 Over 850～1300cd/m2 Within 10% 7.5kg CCV-51F/G Volume adjustable FL10D-EDL-56K 5100K±300 Over 850～1400cd/m2 Within 10
