it mainly suitable for making fixed quantity and high-grade life paper and cultural paper .it spurns the ancient cylinder mould machine's abuse of low copy speed,high quantitation,low efficiency and complex operation.which changes common cylinder mould the common adjustable arc board vat into pressure vat,change the atmospheric pressure sizing moulding into force pressure sizing moulding ,change the traditional manual pressurizing adjustment into air power pressurzing and change the scrapper into movable air power .its main characteristics are low sizing consistency ,large pressure ,eveccess,quick moulding and good evenness,wide quantitation scope (13g~38g/㎡），high vehicle speed (150~200m/min)，large output ,low energy consumption,main models:1092,1575,1760,1880,2362,2800,3600mm.
Specifications
1575 toilet tissue paper making machine mill with both wood pulp and waste paper as raw material
1575 toilet tissue paper making machine mill can make tissue paper with both wood pulp and waste paper as raw material. We may make design according to customer request. Production capacity will be 4-30 ton per day
(I) GENERAL DESCRIPTION.
THIS PLANT MAINLY CONSIST OF 3 PARTS AS FOLLOWS:
1. ONE PULP MAKING LINES (USE WASTE PAPER AND VRIGIN PULP AS RAW MATERIAL)
WITH PRODUCTION CAPACITY OF 30 TON PER DAY.
2. TWO SETS MODEL 2400 HIGH SPEED TISSUE PAPER MACHINE AND ITS AUXILIARY EQUIPMENTS.
3. WASTE WATER TREATMENT SYSTEM WITH CAPACITY 100M3/HOUR
(II) MAIN INDEX.
- KIND OF END PRODUCTS: 13-38 GSM TISSUE PAPER.
- APPLICABLE RAW MATERIAL: WASTE PAPER;VIRGIN PULP.
- PRODUCTION CAPACITY: 15-20TON/DAY.
- WORKING SPEED:180-200METER/MIN.
- QUALITY OF END PRODUCT: INTERNATIONAL A GRADE
- WIDTH OF PRODUCED TISSUE PAPER: 2650MM.
- CONSUMPTION OF MATERIALS TO PRODUCE ONE TON END PRODUCT:
(1) FRESH WATER: 30 M3 (WITH SEWAGE DISPOSAL SYSTEM)
(2) WASTE PAPER: 1300 – 1400 KGS(OR 1.05 T WOOD PULP)
(3) STEAM:4 TON
(4) ELECTRICITY: 600-800 KWH
Toilet paper project document
Capacity: 2-3T/D
Catalogue
1. Project Contents &main indexes
1) Project contents
2) main indexes
2. Process flow chart
3. Equipment option and technical description
1）The quotation of waste paper deinking pulping equipment
2）The quotation of 1092 toilet paper machine Main body and Auxiliary system equipment
3）The quotation of 1092 Paper product processing equipments (Outsourcing purchasing)
4）The quotation of waste water treatment system
5）The quotation of other material and equipment matching system
6）Total project price
attachment
1. Equipment option and technical description1
1）wastepaper deinking and pulping equipment
2）ZY1092 Toilet paper machine main body and Auxiliary system equipment
A.Toilet paper machine main body
B.Auxiliary system equipment
a.Before-paper making clarifying and selection
b.Vacuum system
c.Wire &felt washing High pressure water system
d.Compressed air system
e.Chemical assistant system
3）Paper product processing equipment
4）waste water treatment system
5）Other supporting systems
2. Payment terms
3.Delivery time
4.Description of supply scope
5.The estimated quantity of the needed containers for all the equipments
6.The equipments/foundation construction/materials that need be self-prepared by the customer
7.Description of provided drawings and other data
8.Technical service and quality warranty terms
Body of the letter
1. Project Contents &main indexes
1）Main contents：
A. Capacity: 5t/d Wastepaper deinking pulping line, for one unit.
B. ZY1092 Pressure net-vat high speed toilet paper machine, for 1 set and the relevant matched auxiliary system.
C. Matched waste water treatment system for 1 set.
2）Main technical indexes：
A. Materials structure: Waste-old book paper, printed cultural paper trims, etc.
B. Category: 14-35g/m2Middle-high grade household paper.
C. Capacity：2-3T/D(Calculating with 18g/m2)。
D. Paper net width：1092mm。
E. Total power of project：314.7kw。(Not including boiler, water supply and electricity)
F. Consumption of principal raw materials for per ton paper：
Wastepaper: 1250-1400kg
Freshwater100m3
Steam:5t
Electricity:800kwh
100%实图拍摄+100%安装现场

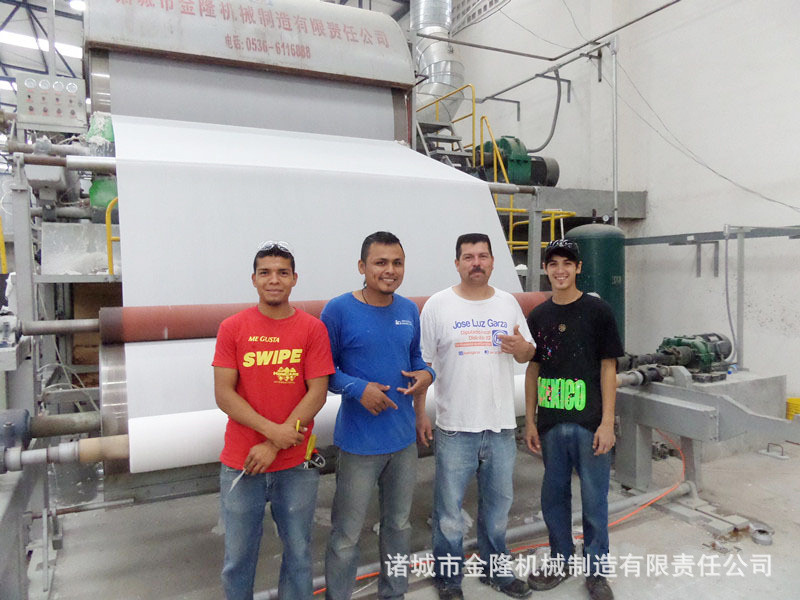

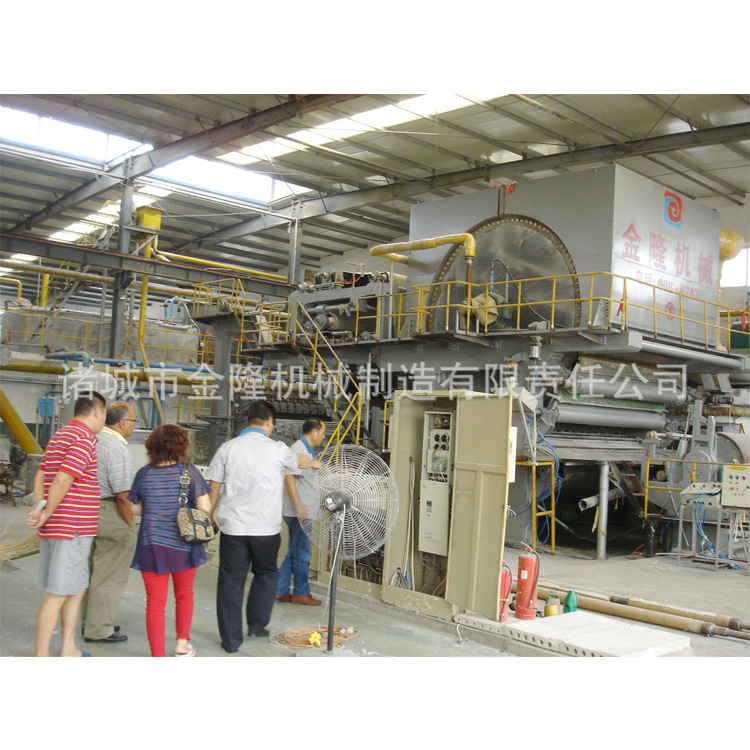

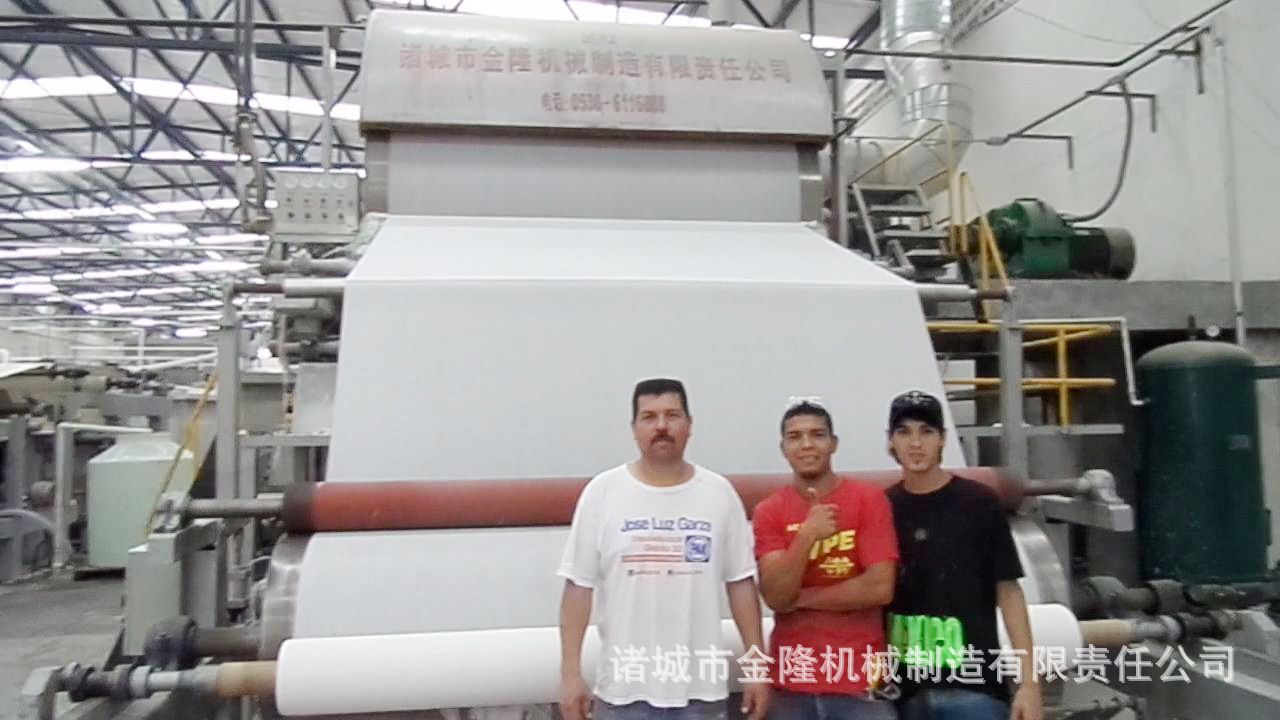

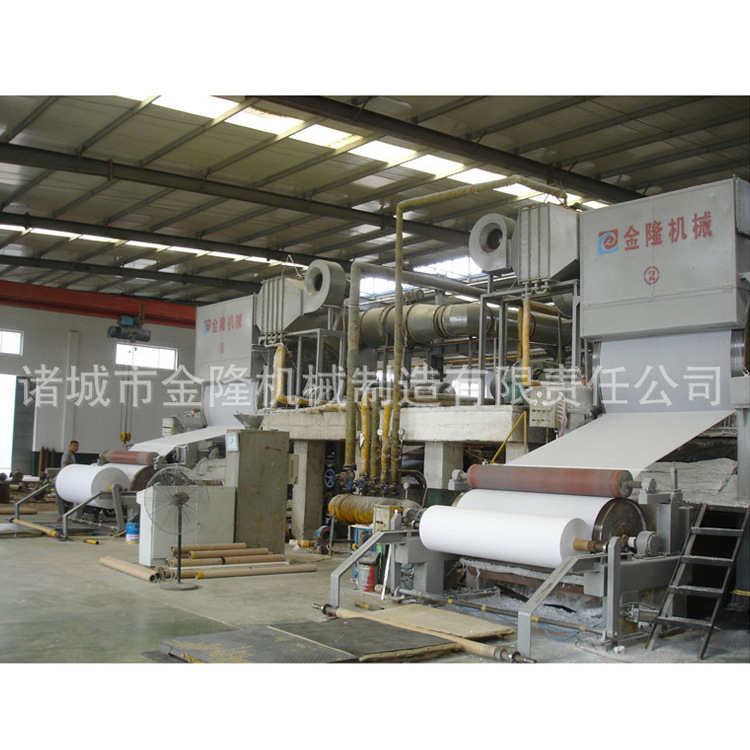

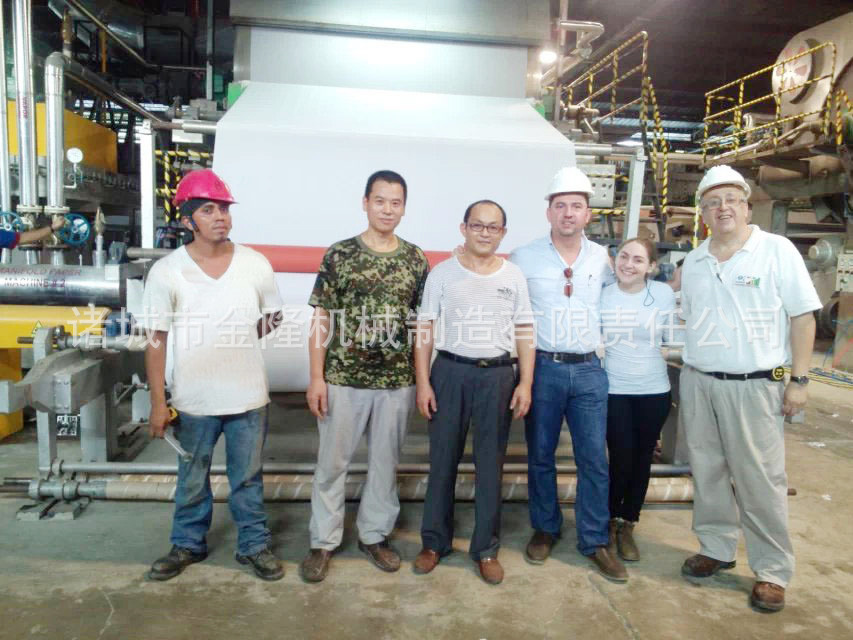

纸机客户案例展示
Paper MachineTHE Show Of BusinessCase
