Toilet paper project document
Capacity: 2-3T/D
Catalogue
1. Project Contents &main indexes
1) Project contents
2) main indexes
2. Process flow chart
3. Equipment option and technical description
1）The quotation of waste paper deinking pulping equipment
2）The quotation of 1092 toilet paper machine Main body and Auxiliary system equipment
3）The quotation of 1092 Paper product processing equipments (Outsourcing purchasing)
4）The quotation of waste water treatment system
5）The quotation of other material and equipment matching system
6）Total project price
attachment
1. Equipment option and technical description1
1）wastepaper deinking and pulping equipment
2）ZY1092 Toilet paper machine main body and Auxiliary system equipment
A.Toilet paper machine main body
B.Auxiliary system equipment
a.Before-paper making clarifying and selection
b.Vacuum system
c.Wire &felt washing High pressure water system
d.Compressed air system
e.Chemical assistant system
3）Paper product processing equipment
4）waste water treatment system
5）Other supporting systems
2. Payment terms
3.Delivery time
4.Description of supply scope
5.The estimated quantity of the needed containers for all the equipments
6.The equipments/foundation construction/materials that need be self-prepared by the customer
7.Description of provided drawings and other data
8.Technical service and quality warranty terms
Body of the letter
1. Project Contents &main indexes
1）Main contents：
A. Capacity: 5t/d Wastepaper deinking pulping line, for one unit.

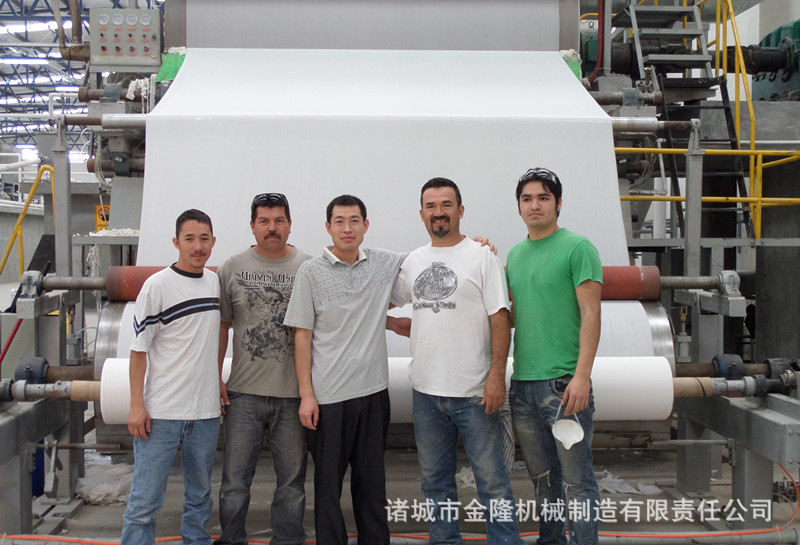

B. ZY1092 Pressure net-vat high speed toilet paper machine, for 1 set and the relevant matched auxiliary system.
C. Matched waste water treatment system for 1 set.
2）Main technical indexes：
A. Materials structure: Waste-old book paper, printed cultural paper trims, etc.
B. Category: 14-35g/m2Middle-high grade household paper.
C. Capacity：2-3T/D(Calculating with 18g/m2)。
D. Paper net width：1092mm。
E. Total power of project：314.7kw。(Not including boiler, water supply and electricity)
F. Consumption of principal raw materials for per ton paper：
Wastepaper: 1250-1400kg
Freshwater100m3
Steam:5t
Electricity:800kwh
