项目
Item
单位
Unit
QYZ-0.8 QYZ-2 QYZ-5
公称压力 Normally pressure KN 8 20 50
冲头行程(增力行程/总行程) Stroke of plunger mm 60 30 25
最大封闭高度Max working heigh mm 180 90 70
模柄孔尺寸(直径×深度)Hole size mm Ø19×35 Ø19×35 Ø19×35
工作台尺寸working table size mm 180×190 450×350 450×440
增力缸直径strong power cylinder bore mm Ø125 Ø250 Ø100
冲头调节量 Plunger adjust range mm 25 20 20
增力缸工作压力strong power cylinder working pressure MPa ≤0.5 ≤0.5 ≤0.5
电压 Voltage V AC220 AC220 AC220
外形尺寸(长×宽×高)Size of the machine mm 530×580×630 750×660×840 1250×650×1200
净重 Net weight KG 92 223 252
理论输出力Theaory out put force KN
F=π/4×25.4P F=π/4×60P F=π/4×156.8P
其中:P:气缸工作压力(MPa) P: working pressure of the cylinder

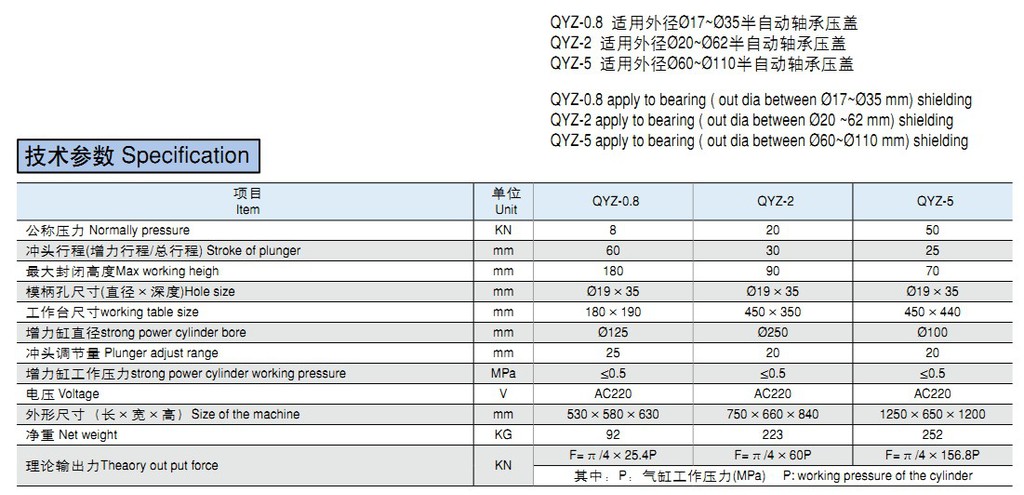

技术参数 Specification
'
