Zoriver电阻传感压力表YTZ

加隔离体制成电阻远传隔膜压力表

电阻远传压力表YTZ
Pressure gauge with resistance transmitter

    简 介BRIEF INTRODUCTION

    电阻远传压力表通过仪表内部的滑动电阻发送器把被测值以电量值传至远离测量点的二次仪表上，以实现集中检测和远距离控制，此外本仪表能够同时就地指示压力，（便于现场工艺检查）。本仪表还可以与膜片隔离器（隔离体）连接，制成电阻远传隔膜压力表，可测量腐蚀性较强、黏度大、易结晶介质的压力。

    Through the built-in adjustable resistance transmitter, 840 series gauges can transmit the measured values to the secondary gauges far from the site and achieve the concentrated examination and remote control. Meanwhile, the gauges can indicate the pressure value (for spot technical inspection). It can be connected with deaphragm insulator, making pressure gauge with resistance transmitter, Designed for strong corrosive, viscous and easy to be crystallographic media.

    工作原理Operating principle

    仪表由一个弹簧管压力表和一个滑线电阻式传感器组成，当被测压力变化时，弹簧管端产生位移，一方面通过传动系统使指针在度盘上指示相应压力，另一方面带动电刷在电阻上滑行，使被测压力值的变化转换为电阻值的变化，并传至二次仪表上指示相应的压力。
    The gauge is formed by a bourdon tube pressure gauge and a adjustable resistance transmitter. When the pressure is changing, the tube end deformed, and the pointer is to show the pressure value through the driving system, at the same time, the brush is slipping on the resistance to transmit the pressure values to resistant values, which is transmited to the secondary gauge to show the relative pressure value.

   YTZ 主要技术参数YTZ Specifications
    测量介质：对铜合金无腐蚀作用气体或液体可与多类化学密封隔离器配接在各种腐蚀性的环境中使用）

    Medium: Gas or liquid, whice doesn’t corrode（ copper alloy (could be used in corrosion environments connected chemical seals.)
    安装方式：径向直接安装连接螺纹M20 × 1.5（或其他螺纹尺寸）

    Mounting: Bottom connection direct thread M20 × 1.5 or other
    精度等级：1.5 级

    Accuracy: 1.5%
    外径：150mm

    Diameter: 150mm
    测量范围：正压：0.1MPa??60MPa； 负压：-0.1～0MPa,-0.1～2.4MPa。

    Range: Positive pressure 0.1MPa??60MPa；

           Negative pressure -0.1～0MPa, -0.1～2.4MPa
    工作条件： Working condition:
        环境温度：-40～70℃

        Ambient temperature: -40～70℃
        相对湿度：≤ 85%

        Relative humidity: ≤ 85%
    工作压力：使用温度偏离20 ± 5℃时，其温度附加误差不大于0.4%/10℃

    Working pressure: When working temperature deviates from 20 ± 5℃.

        the additional temperature error shallnot be more than 0.4%/10℃
    滑线电阻发送器技术数据：起始电阻：6～20 Ω

        满度电阻：340～400 Ω    接线端外加电阻：≤ 6V

    Technical data of resistance tramsmitter :Start resistance: 6～20 Ω
        Full scale resistance: 340～400 Ω
        Connection end additional resistance: ≤ 6V
    外壳材质：压铸合金铝

    Case: Cast aluminium alloy
    接头材质：铜合金

    Socket material: Copper alloy
    波登管：铜合金

    Bourdon tube: copper alloy
    表盘：铝，白地黑字

    Dial aluminum: white with black pision
    指针：铝，黑色

    Pointer: Aluminium, black
    玻璃：普通玻璃

    Glass: Window glass

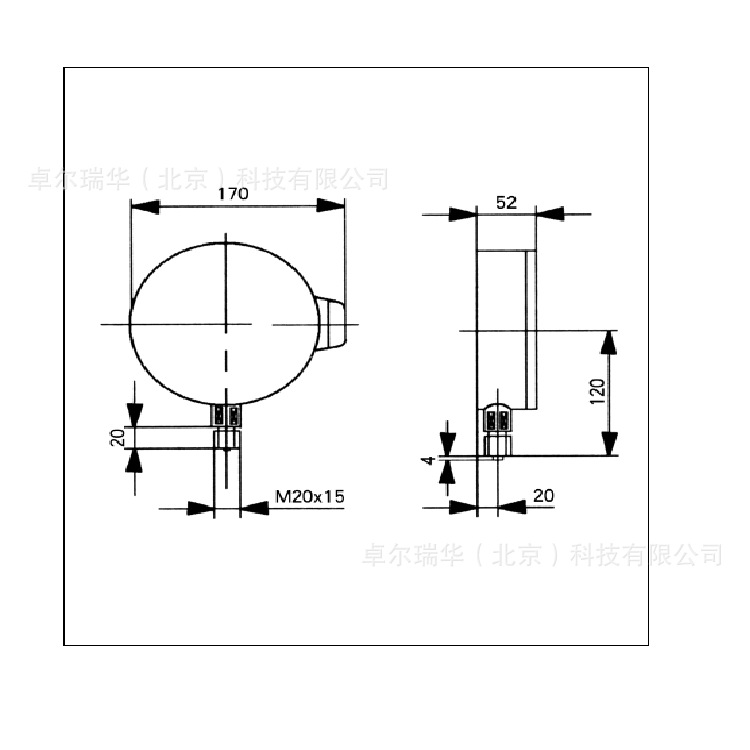

   仪表几何尺寸 DIMENSIONS


   接线示意图 WIRING DIAGRAM

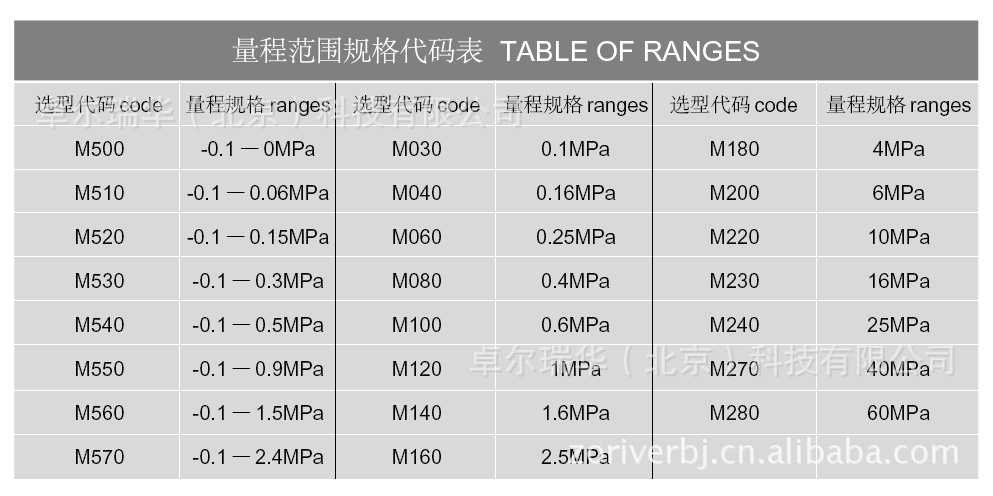

    量程范围规格代码表 TABLE OF RANGES
    选型代码code 量程规格ranges

    M500 -0.1 — 0MPa       M030 0.1MPa     M180 4MPa
    M510 -0.1 — 0.06MPa    M040 0.16MPa    M200 6MPa
    M520 -0.1 — 0.15MPa    M060 0.25MPa    M220 10MPa
    M530 -0.1 — 0.3MPa     M080 0.4MPa     M230 16MPa
    M540 -0.1 — 0.5MPa     M100 0.6MPa     M240 25MPa
    M550 -0.1 — 0.9MPa     M120 1MPa       M270 40MPa
    M560 -0.1 — 1.5MPa     M140 1.6MPa     M280 60MPa
    M570 -0.1 — 2.4MPa     M160 2.5MPa


    如何选型 HOW TO ORDER
    型号代码特性说明CODE CHARACTERISTICS
    基本型号Basic type

        YTZ 电阻远传压力表 Pressure gauge with resistance transmiting
    外 径Diameter
        150 Ф 150mm
    安 装方式Mounting
        1 径向直接安装Bottom mounting direct
    量 程Ranges
        M030 0.1MPa 请参看量程代码表See range table
    连 接 螺 纹Connection
        M20 20 × 1.5
    备 选 项Options
        T00 其它特殊要求的螺纹Other special scrow threads
        FWP 不锈钢位号牌 Stainless sted label
        TOB 特殊标记表盘 Special mark olial
        FHG 配接密封隔离体 Connected with seal insulations
