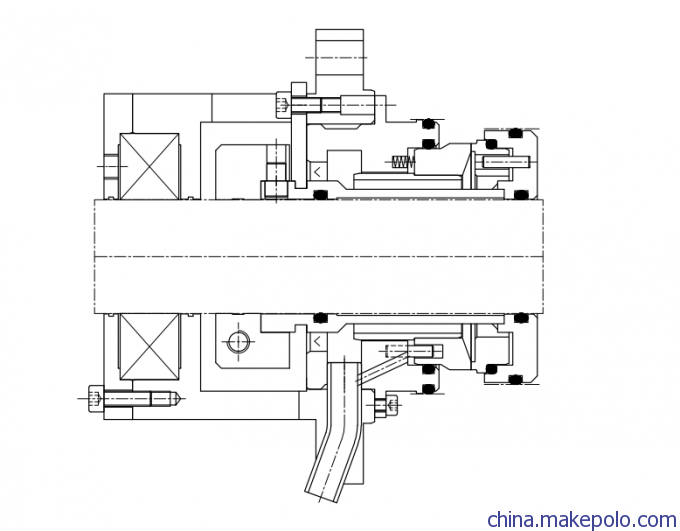

结构说明

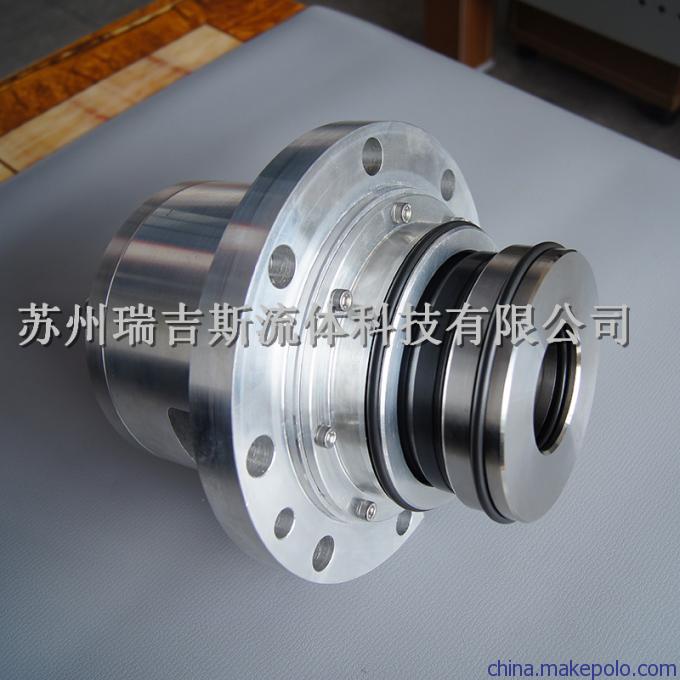

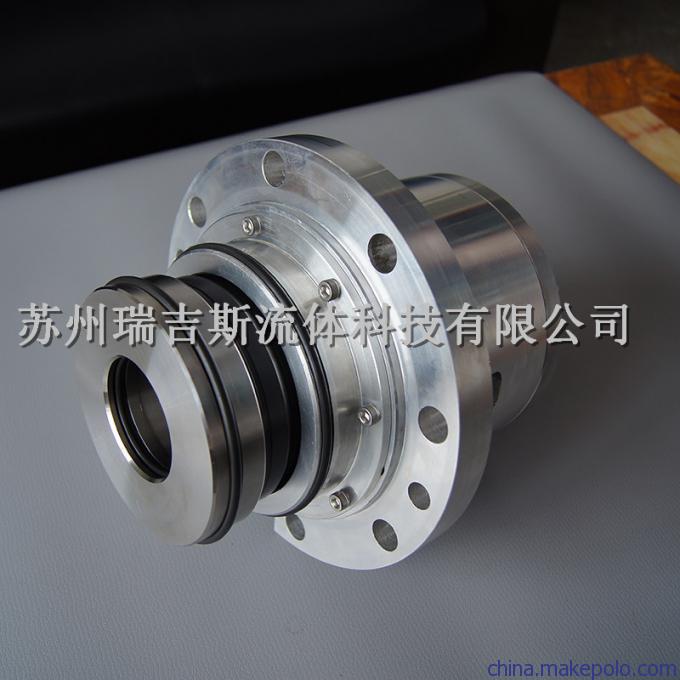

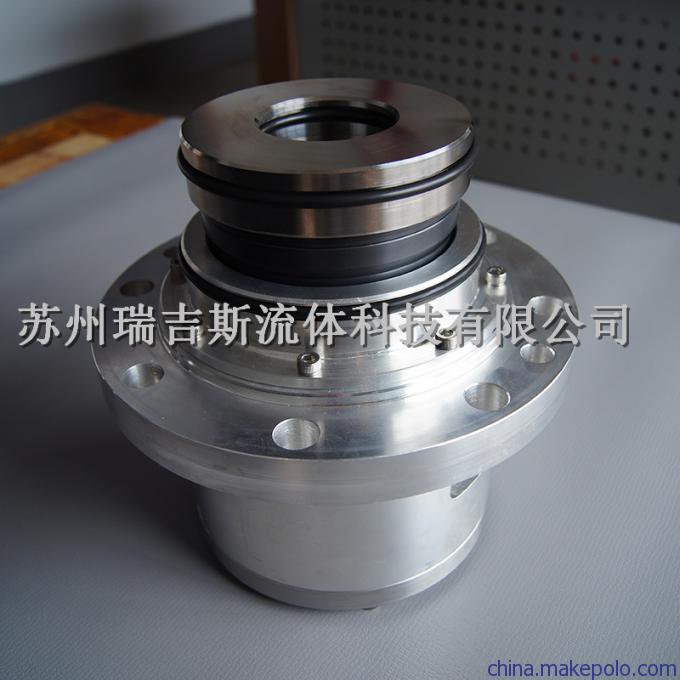

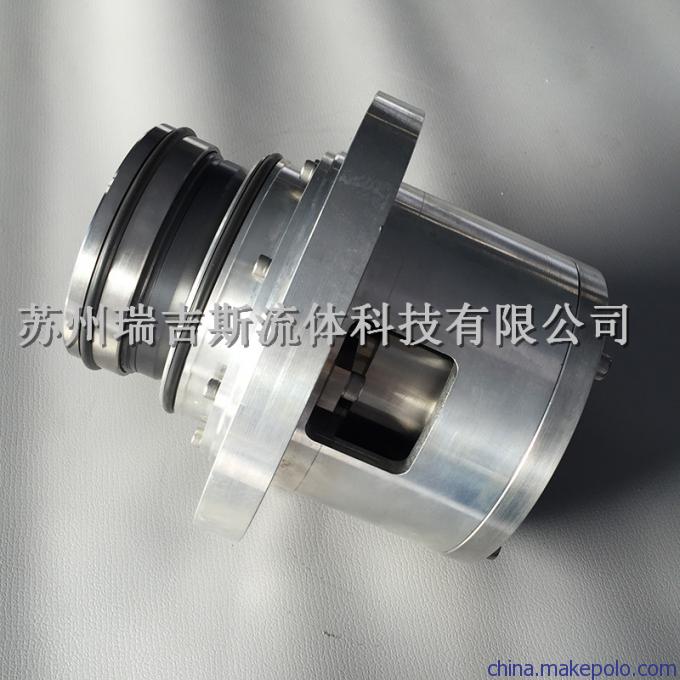

单端面多弹簧集装式密封,带轴承设计,主要用于脱硫塔搅拌设备。
可替代Ekato ESD系列
材料组合
密封端面:碳化硅
辅助密封:氟橡胶、FEP包覆橡胶、乙丙橡胶、全氟橡胶
金属构成:304、316、Hast.C、904L
运行参数
温度:-20~180℃
线速度:≤12m/s
压力:≤1.6Mpa
Profile
Ekato ESD seal replacement
Combination
of materials
Sealing face: Silicon carbide
Secondary sealing: FKM, FEP,EPDM, FFKM
Metal component: SS304, SS316, Hast.C, 904L
Operating
limits
Temperature:-20℃~180℃
Linear speed: ≤12m/s
Pressure: ≤1.6Mpa
