设备使用说明书
Equipment operating instructions
产品名称model | 图片picture | 技术参数 technical parameters | 使用说明 Equipment operating instructions |

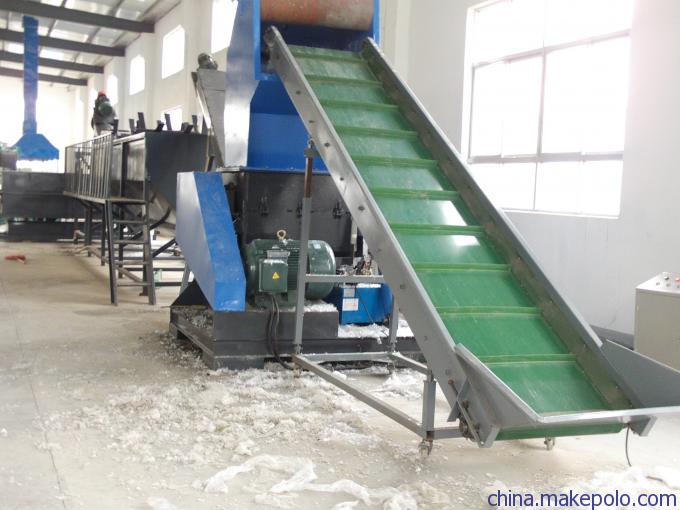

输送机conveyor |
| 尺寸：5000*630mm Size:5000*630mm 电机：0.55KW无极变速 Motor: 0.55 KW CVT | 1、先开电机，运行平稳后投放货物。 1、After the machine runs smoothly starting work again. 2、关机后，设备上勿存放货物。 2、After shutdown devices do not store the goods. 3、不使用时，把作业平台清理干净。 3、When not in use, and clean work platform 4、定时检查，查看是否有卡机，电机是否有异响，机身是否有损坏，活动交接处定时上黄油。 4、Check the machine whether have stuck, motor if there are any new sounds, the fuselage whether have the damage, activity on the shaft need often butter 5、待机器上无货物了，再关机器，最后关闭电源。 5、Stay on the machine without the goods, and then close the machine, turn the power off at last. |
800B破碎机 800B plastic crusher |
| 尺寸：1750*1500*2000mm Size:1750*1500*2000mm 进料口：800*450mm Crushing chamber:800*450mm 定刀：4把 Stationary cutter:4pic 转刀：6把 Rotary cutter:6pic 电机：37KW Motot:37KW | 1、先开电机，运行平稳后投放货物。 1、After the machine runs smoothly starting work again. 2、关机后，设备上勿存放货物。 2、After shutdown devices do not store the goods. 3、不使用时，把作业平台清理干净。 3、When not in use, and clean work platform 4、每周紧拧螺丝一次 4、Tighten screw once a week 5、定期磨刀片 5、Whet knife slices on a regular basis 6、定时检查，查看是否有卡机，电机是否有异响，机身是否有损坏，活动交接处定时上黄油。 6、Check the machine whether have stuck, motor if there are any new sounds, the fuselage whether have the damage, activity on the shaft need often butter 7、轴承添刷油每月一次 7、Bearing brush oil once a month 8、待机器上无货物了，再关机器，最后关闭电源。 8、Stay on the machine without the goods, and then close the machine, turn the power off at last. |
高速上料机High-speed feeding machine |
| 尺寸：3500*1000*700mm Size:3500*1000*700mm 电机：11KW Motor:11KW | 1、先开电机，运行平稳后投放货物。 1、After the machine runs smoothly starting work again. 2、关机后，设备上勿存放货物。 2、After shutdown devices do not store the goods. 3、不使用时，把作业平台清理干净。 3、When not in use, and clean work platform 4、定时检查，查看是否有卡机，电机是否有异响，机身是否有损坏，活动交接处定时上黄油。 4、Check the machine whether have stuck, motor if there are any new sounds, the fuselage whether have the damage, activity on the shaft need often butter 5、轴承添刷油每月一次 5、Bearing brush oil once a month 6、待机器上无货物了，再关机器，最后关闭电源。 6、Stay on the machine without the goods, and then close the machine, turn the power off at last. |

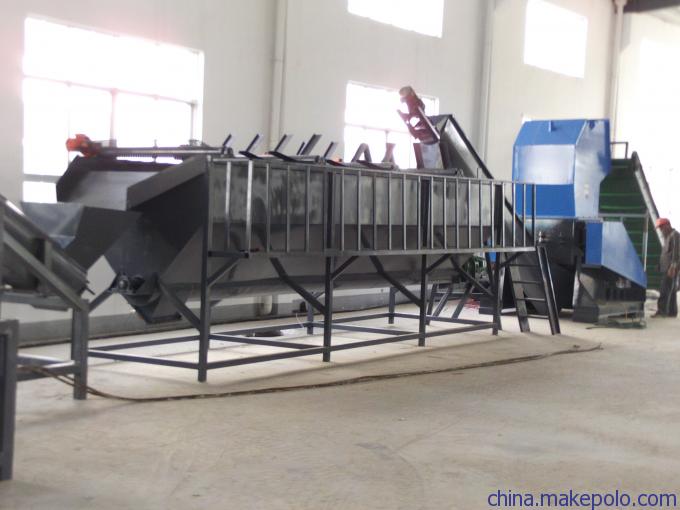

漂槽 Wash trough |
| 尺寸：6500*2300*2100mm Size:6500*2300*2100mm 主机电机：5.5KW First motor:5.5KW 传动电机：2.2KW second motor:2.2KW | 1、先开电机，运行平稳后投放货物。 1、After the machine runs smoothly starting work again. 2、关机后，设备上勿存放货物。 2、After shutdown devices do not store the goods. 3、不使用时，把作业平台清理干净。 3、When not in use, and clean work platform 4、定时检查，查看是否有卡机，电机是否有异响，机身是否有损坏，活动交接处定时上黄油。 4、Check the machine whether have stuck, motor if there are any new sounds, the fuselage whether have the damage, activity on the shaft need often butter 5、给链条上油每月一次 5、Lubricate the chain once a month 6、定期检查旋转浆叶及螺杆叶片 6、Regular inspection of the rotating blade and screw blade 7、待机器上无货物了，再关机器，最后关闭电源。 7、Stay on the machine without the goods, and then close the machine, turn the power off at last. 8、定期给水槽换水，必要时放干水清洁水槽。 8、Clean the sink regularly, keep the water clean |

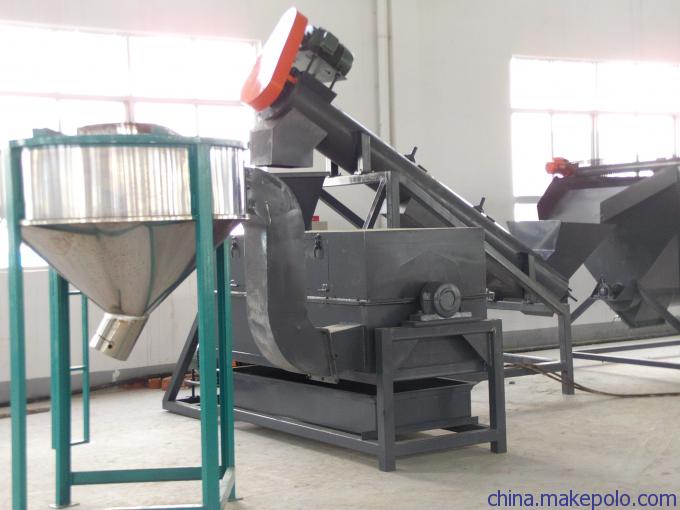

脱水机Dewatering machine |
| 尺寸：2200*600*800mm Size:2200*600*800mm 电机7.5KW Motor:7.5KW 筛孔：4mm Screen aperture:4mm | 1、先开电机，运行平稳后投放货物。 1、After the machine runs smoothly starting work again. 2、关机后，设备上勿存放货物。 2、After shutdown devices do not store the goods. 3、不使用时，把作业平台清理干净。 3、When not in use, and clean work platform 4、定时检查，查看是否有卡机，电机是否有异响，机身是否有损坏，活动交接处定时上黄油。 4、Check the machine whether have stuck, motor if there are any new sounds, the fuselage whether have the damage, activity on the shaft need often butter 5、定期检查旋转浆叶及螺杆叶片 5、Regular inspection of the rotating blade and screw blade 6、待机器上无货物了，再关机器，最后关闭电源。 6、Stay on the machine without the goods, and then close the machine, turn the power off at last. |

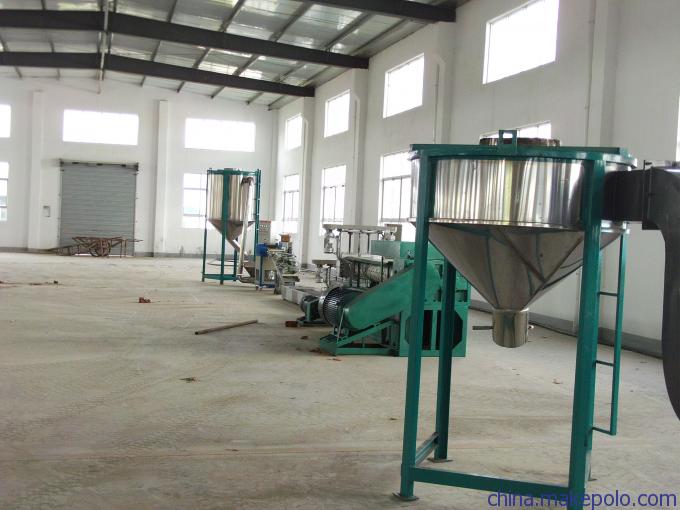

吹风烘干系统 Blow drying system |
| 储料桶尺寸：1300*1300*2800mm 不锈钢管长度：约8米 吹风风机：7.5KW 烘干电加热：20KW Storage VAT size: 1300 * 1300 * 2800 mm Stainless steel tube length: about 8 meters Blower fan: 7.5 KW Electric heating drying: 20 kw | 1、先开电机，运行平稳后投放货物。 1、After the machine runs smoothly starting work again. 2、关机后，设备上勿存放货物。 2、After shutdown devices do not store the goods. 3、不使用时，把作业平台清理干净。 3、When not in use, and clean work platform 4、定时检查，查看是否有卡机，电机是否有异响，机身是否有损坏，活动交接处定时上黄油。 4、Check the machine whether have stuck, motor if there are any new sounds, the fuselage whether have the damage, activity on the shaft need often butter 5、每月检查风机一次，定期清理风机和储料桶及风管 5、Check the fan once a month，Regularly clean fan, channel storage VAT and duct 6、待机器上无货物了，再关机器，最后关闭电源。 6、Stay on the machine without the goods, and then close the machine, turn the power off at last. |

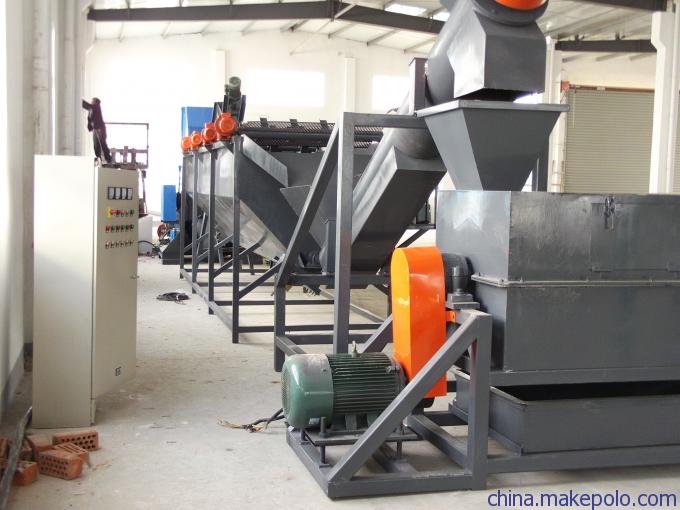

独立电控箱Independent electric cabinet |
|
| 1、保持电箱整洁，无水渗入 1、Maintain a clean and tidy electric box, no water infiltration 2、经常检查线路，查看电线有无退皮，接触器开关按扭是否有失灵 2、Check line, contactor switch button if there is a failure 3、每次启动电箱开关前，先检查各机器是否有异常 3、Before each start switch electrical box, first check the machine whether there are abnormal |
