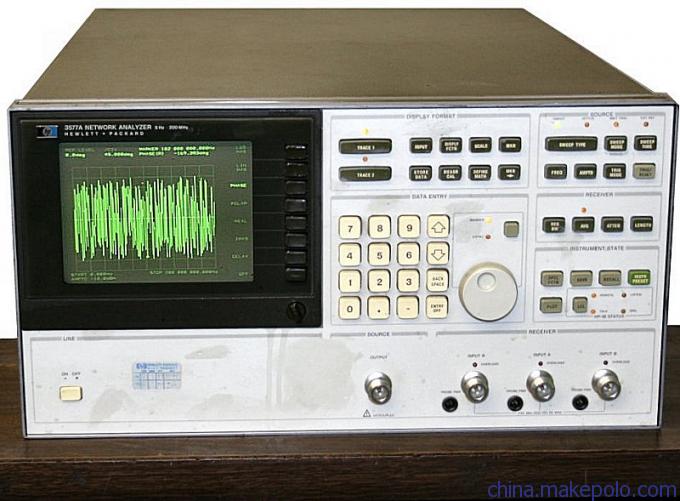

HP3577A 网络分析仪
仪器型号: 3577A
仪器品牌: HP
技术指标: 5 Hz to 200 MHz
5 Hz to 200 MHz
High Speed/high accuracy measurements
0.001 dB, 0.005 degree, 1ps, 0.001 Hz resolution
Built-in three-term error correction plus normalization
Magnitude, phase, polar, real, imaginary,group delay display modes
Convenience features including direct plotter controlvector math functions
GPIB
The HP 3577A Network Analyzer provides cost-effective, high performance network measurements from 5 Hz to 200 MHz for higher productivity in designproduction. The companion HP 35677A/B S-Parameter Test Setsfull line of accessories ensure a complete measurement solution. Innovative analogdigital design are combined for superb accuracy, resolutionoperational simplicity.
Convenient soft-key selection of measurement functions allows you to quickly measure transfer functions, magnitude/phase, insertion loss/gain, attenuation, electrical lengthgain compression. In addition, measurement of phase distortion parameters such as group delaydeviation from linear phase can be made with high resolution. With the HP 3577A''s flexible receiver input impedances, you can measure in either 50 Ohm or high impedance 1 Megohm environments. Use the HP 35677B S-Parameter Test Sets with the HP 3577A to make reflection measurements such as return loss, reflection coefficientimpedance in 50 Ohm or 75 Ohm systems, while simultaneously displaying transmission parameters





东莞市维技电子仪器有限公司
联系人:陈S 13922531876 肖先生13826909749
电话:0769-87931239传真:0769-87938902
业务QQ:316263919 邮箱:;Dongguanweiji@126.com
公司网站:
地址: 广东省东莞市塘厦镇商务中心A座5楼
我们的优势:
品种齐全,货源充足,存库雄厚,服务快捷,维修能力强。
欢迎来电!上门看货!您的满意是我们的追求!
(本公司大量供应二手进口仪器:如网络分析仪,频谱分析仪,示波器,音频分析仪器,视频分析仪器,高频信号源,无线电综合测试仪等高频仪器,公司长期专业销售、租赁、维修、计量、回收高频二手仪器!! 24小时热线;13826909749肖先生。欢迎来电咨询。)
凡本公司所销售的产品可享受一年保修期。)
