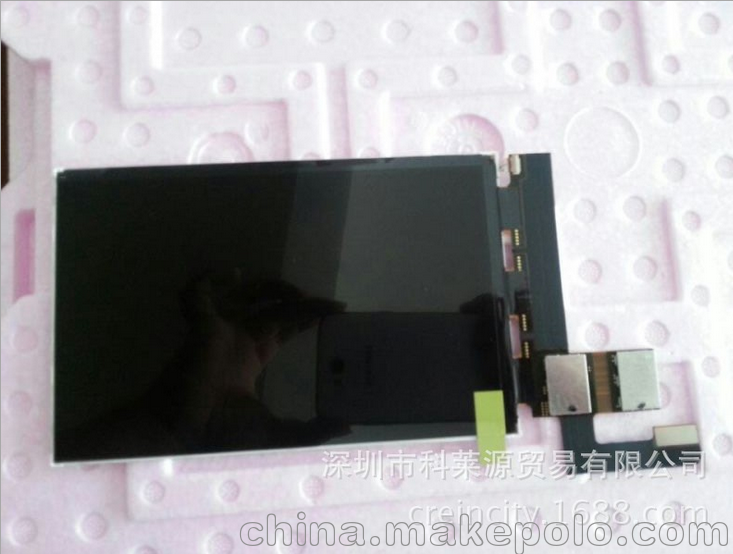

The following specifications are applied to the following TFT LCD module.
Product Name : VVX07F015M00-4
Effective display area :(H) 94.50×(V) 151.2 (mm)
Number of pixels :(H) 1200×RGB×(V) 1920 (pixels)
Pixel pitch :(H) 0.07875×(V) 0.07875 (mm)
Color pixel arrangement : R+G+B vertical stripe
Display mode : Transmissive mode
Normally black mode
Top polarizer type : Hard Coat + Retardation Film
Number of colors : RGB × 8bit (colors)
Input signal : MIPI 4 Lanes
Backlight : 24 pieces of LED
External dimensions : (H) 104.52 × (V) 161.87 × (t) 2.4 (Max.)
Weight : 66g (Typ), 70g(Max)
RoHS Directive :RoHS compliant
